Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

26 part groups · 2 illustrations

Illustrations

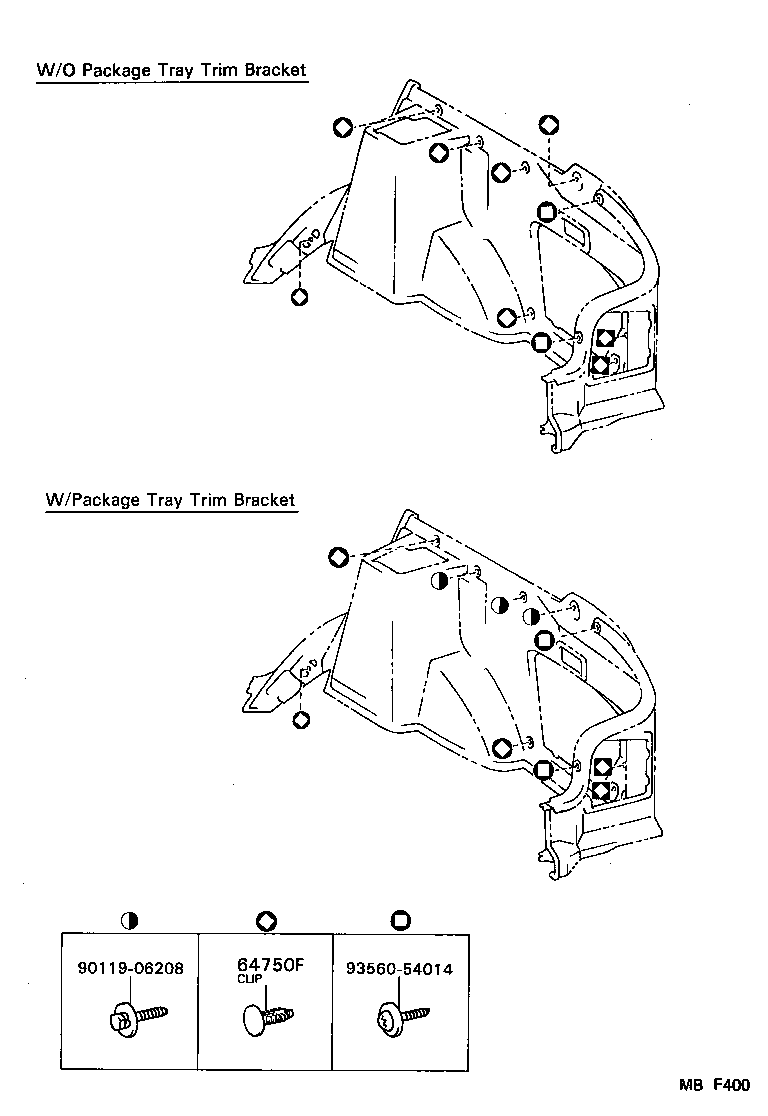

Figure MBF416C MBF416C 1983-08 → — Figure MBF400 MBF400 1983-08 → —

Part groups

PNCDescription
58400A Striker, Luggage Hold Belt
64033A Grille Sub-assy, Rear Speaker, RH
64034A Grille Sub-assy, Rear Speaker, LH
64076 Cover, Deck Trim Side Jack
64076A Knob, Deck Trim Side Jack Cover
64076B Stopper, Deck Trim Side Jack Cover
64303 Bracket Sub-assy, Package Tray, RH
64304 Bracket Sub-assy, Package Tray, LH
64306 Suspender Sub-assy, Package Tray Trim
64323 Clamp, Package Tray Trim, NO.1
64324 Clamp, Package Tray Trim, NO.2
64330D Panel Assy, Package Tray Trim
64373A Stopper, Package Tray Trim
64387 Hanger, Package Tray Trim
64716D Cover, Deck Trim, Rear
64735 Cover, Deck Trim Side Service Hole
64735B Stopper, Deck Trim Side Service Hole Cover
64735C Knob, Deck Trim Side Service Hole Cover
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64746A Cover, Deck Trim Side Lamp Hole
64750 Panel Assy, Deck Side Trim, RH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64759A Cover, Shock Absorber Head
64760 Panel Assy, Deck Side Trim, LH
64770D Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
