Rear Combination Lamp

11 part groups · 3 illustrations

Illustrations

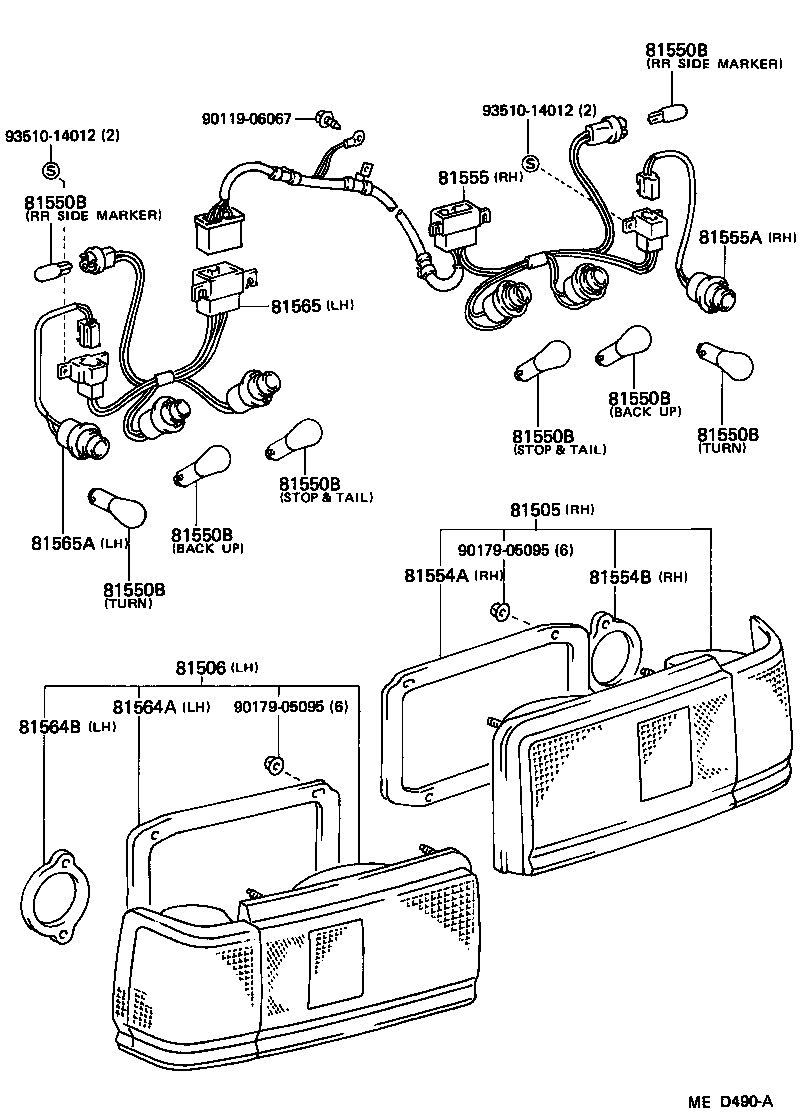

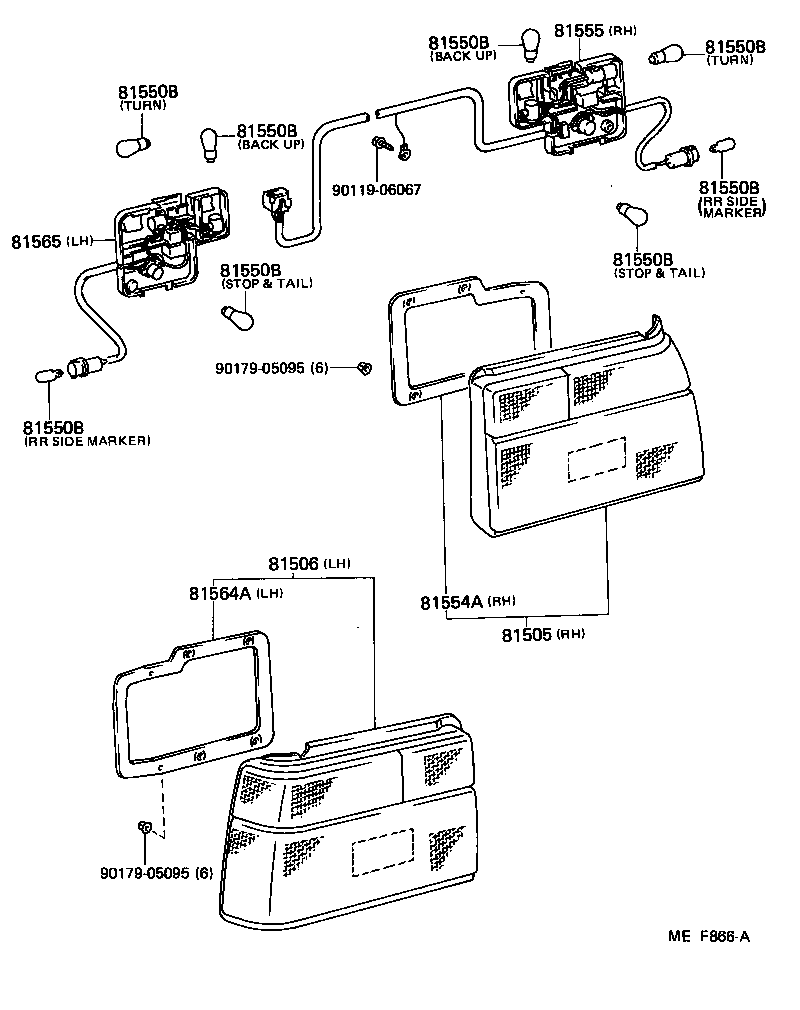

Figure MED489C MED489C 1983-08 → 1985-08 Figure MEF866A MEF866A 1985-08 → — Figure MED490A MED490A 1983-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550B Bulb(FOR REAR COMBINATION LAMP)
81554A Gasket, Rear Combination Lamp Body, NO.1 RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81564A Gasket, Rear Combination Lamp Body, NO.1 LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
