Toyota Corolla Sed/LB

1983-08 → 1987-07 · chassis AE82,CE80 · catalogue 151410 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

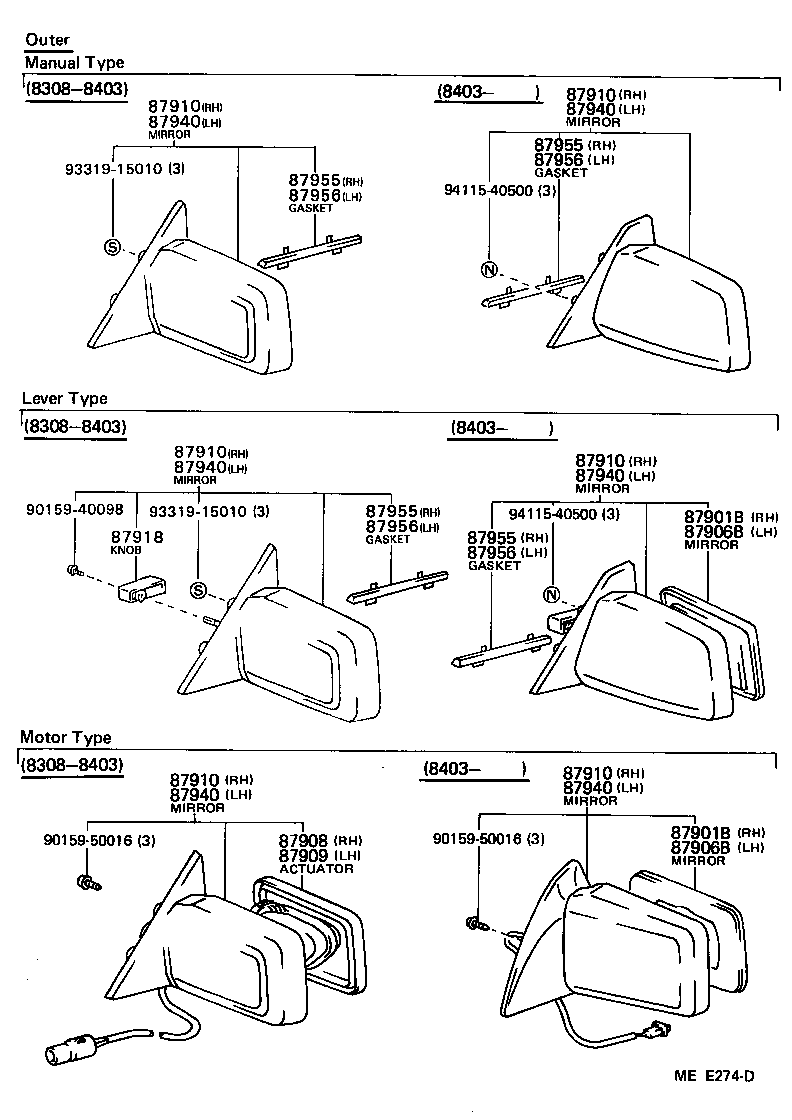

Figure MED532A MED532A 1983-08 → — Figure MEE274D MEE274D 1983-08 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87918 Knob, Control Outer Mirror
87940 Mirror Assy, Outer Rear View, LH
87955 Gasket, Outer Rear View Mirror Base, Lower RH
87956 Gasket, Outer Rear View Mirror Base, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
