Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

18 part groups · 3 illustrations

Illustrations

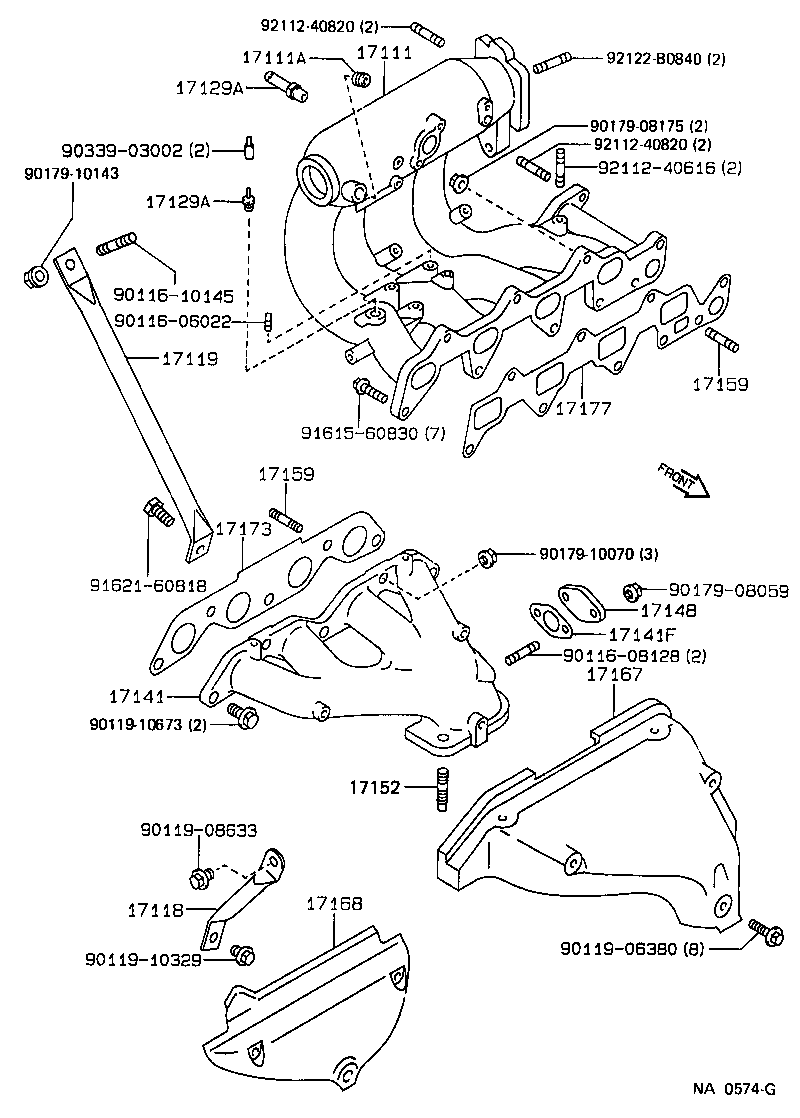

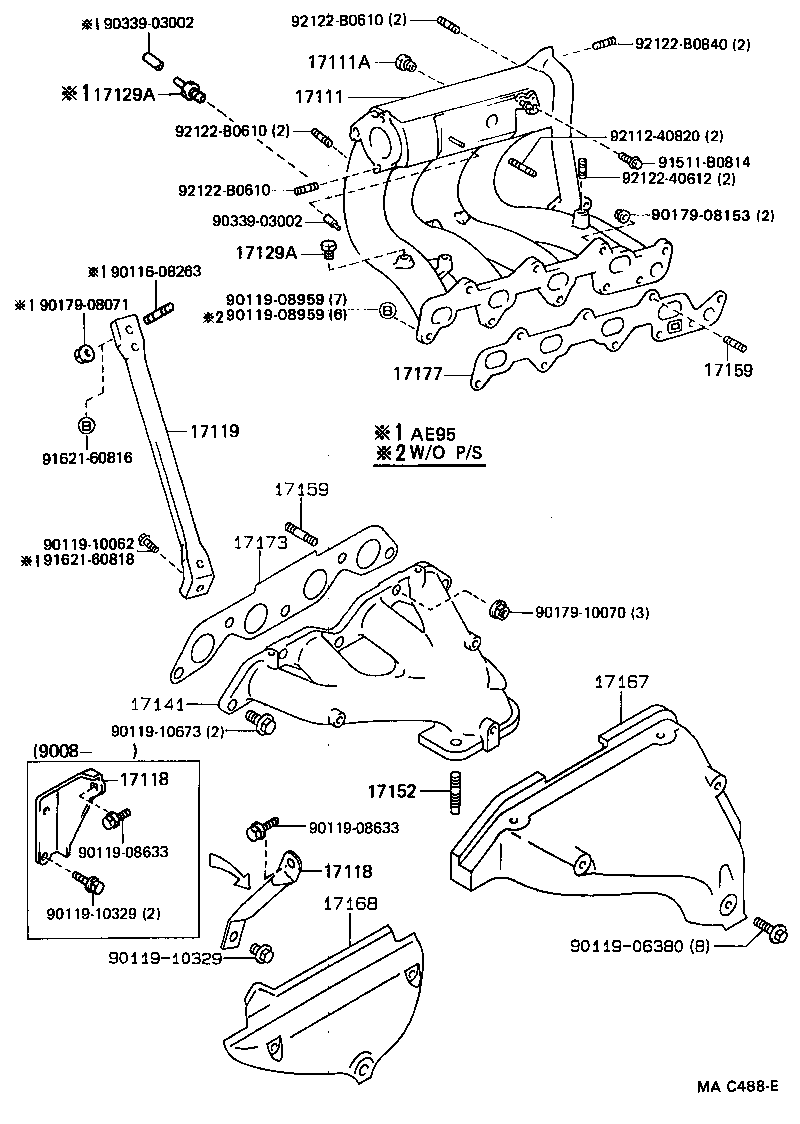

Figure NA0250F NA0250F 1987-08 → 1989-08 Figure NA0574G NA0574G 1988-02 → 1989-08 Figure MAC488E MAC488E 1989-08 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17129A Union, NO.1
17141 Manifold, Exhaust
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
