Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 3 illustrations

Illustrations

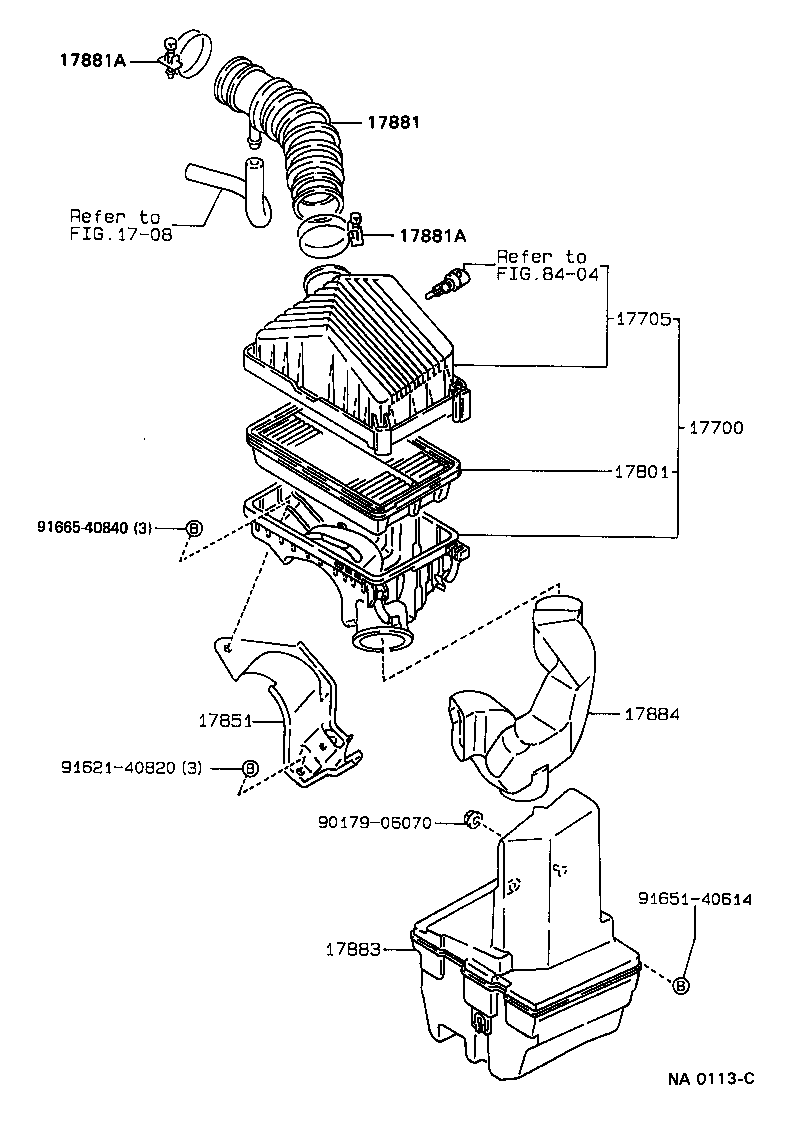

Figure MAG286 MAG286 1987-08 → 1989-08 Figure NA0113C NA0113C 1988-02 → 1989-08 Figure MAC481A MAC481A 1989-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
