Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

24 part groups · 3 illustrations

Illustrations

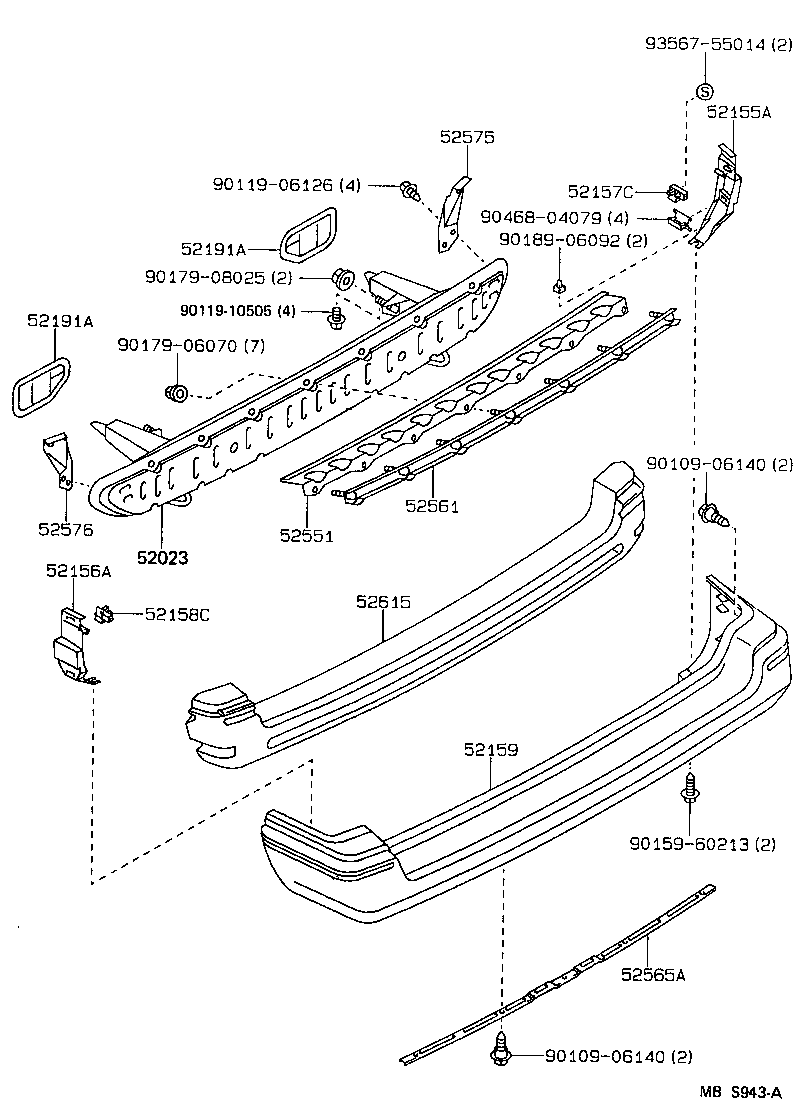

Figure NB0397D NB0397D 1987-08 → — Figure MBS943A MBS943A 1987-10 → — Figure NB0642A NB0642A 1988-02 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52075 Retainer Sub-assy, Rear Bumper Side, RH
52076 Retainer Sub-assy, Rear Bumper Side, LH
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157 Support, Rear Bumper Side, NO.2
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52191A Seal, Rear Bumper Arm
52191C Seal, Rear Bumper Arm, RH
52192C Seal, Rear Bumper Arm, LH
52551 Filler, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
