Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

85 part groups · 3 illustrations

Illustrations

NB0448G 1987-08 → —

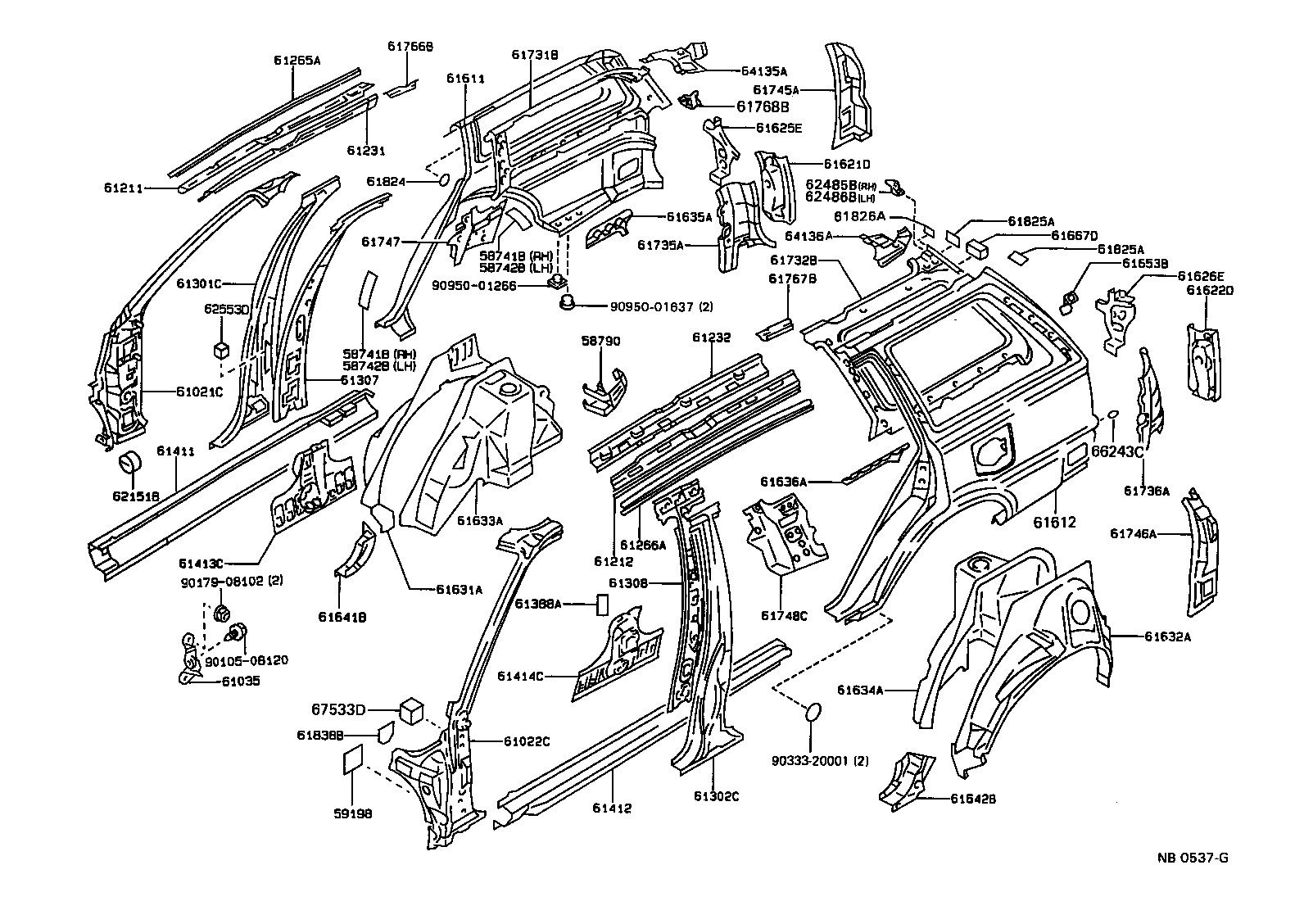

NB0537G 1987-10 → —

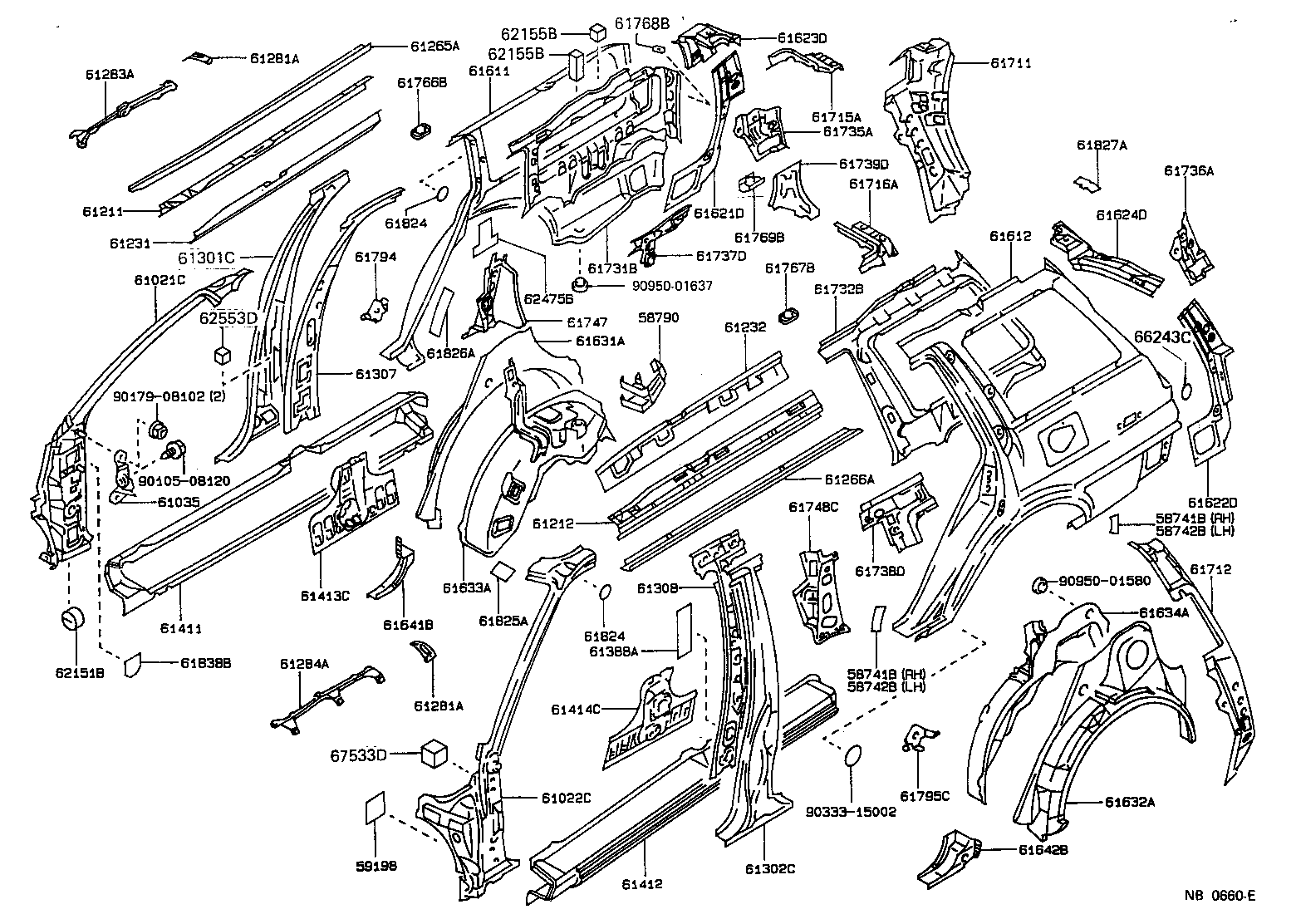

NB0660E 1988-02 → —

Part groups

PNC	Description
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
58790	Carrier Assy, Jack
59198	Seal, Noise Shutter
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61265A	Channel, Roof Drip Side, Center RH
61266A	Channel, Roof Drip Side, Center LH
61281A	Bracket, Sliding Roof Housing Side Mounting, NO.1
61283A	Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61284A	Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61301C	Pillar Sub-assy, Center Body, Outer RH
61302C	Pillar Sub-assy, Center Body, Outer LH
61307	Pillar Sub-assy, Center Body, Inner RH
61308	Pillar Sub-assy, Center Body, Inner LH
61388A	Plate, Center Body Pillar End, RH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61413C	Reinforcement, Rocker Panel, NO.2 RH
61414C	Reinforcement, Rocker Panel, NO.2 LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621C	Trough, Luggage Compartment Opening, RH
61621D	Trough, Back Door Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61622D	Trough, Back Door Opening, LH
61623D	Extension, Quarter Panel, Front RH
61624D	Extension, Quarter Panel, Front LH
61625E	Extension, Quarter Panel, Inner Rear RH
61626E	Extension, Quarter Panel, Inner Rear LH
61627B	Extension, Quarter Panel, Upper Rear RH
61628B	Extension, Quarter Panel, Upper Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61641B	Gusset, Quarter Wheel House, RH
61642B	Gusset, Quarter Wheel House, LH
61653B	Bracket, Deck Side Trim
61667D	Seal, Quarter Panel
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61715A	Extension, Roof Side, Inner Upper RH
61716A	Extension, Roof Side, Inner Upper LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61739D	Reinforcement, Jack Carrier Support
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748C	Brace, Roof Side Inner TO Wheel House, LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61768B	Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61769B	Reinforce, Belt Anchor TO Roof Side, Inner Rear LH
61794	Bracket, Radio Speaker, NO.1
61795C	Bracket, Radio Speaker, NO.2
61824	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61826A	Plate, Noise Control, NO.3
61827A	Plate, Noise Control, NO.4
61838B	Plate, Noise Control, NO.5
62151B	Pad, Cowl Side Silencer
62155B	Pad, Quarter Panel
62475B	Seal, Roof Side, Inner
62485B	Retainer, Roof Side Inner Garnish, RH
62486B	Retainer, Roof Side Inner Garnish, LH
62553D	Pad, Pillar, NO.3
62903	Duct Sub-assy, Quarter Ventilator, RH
62904	Duct Sub-assy, Quarter Ventilator, LH
64135A	Reinforcement, Back Corner, Outer RH
64136A	Reinforcement, Back Corner, Outer LH
66243C	Protector, Rear Body, NO.1
67533D	Pad, Front Door Lower Frame Garnish, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
