Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

33 part groups · 3 illustrations

Illustrations

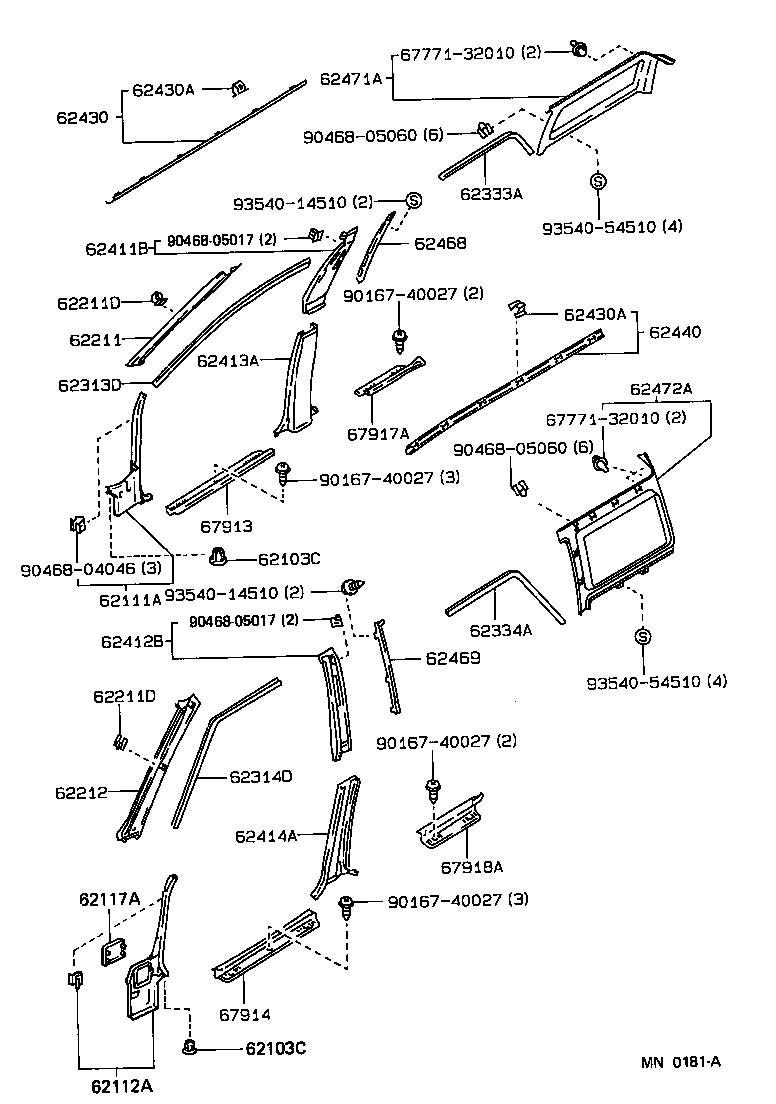

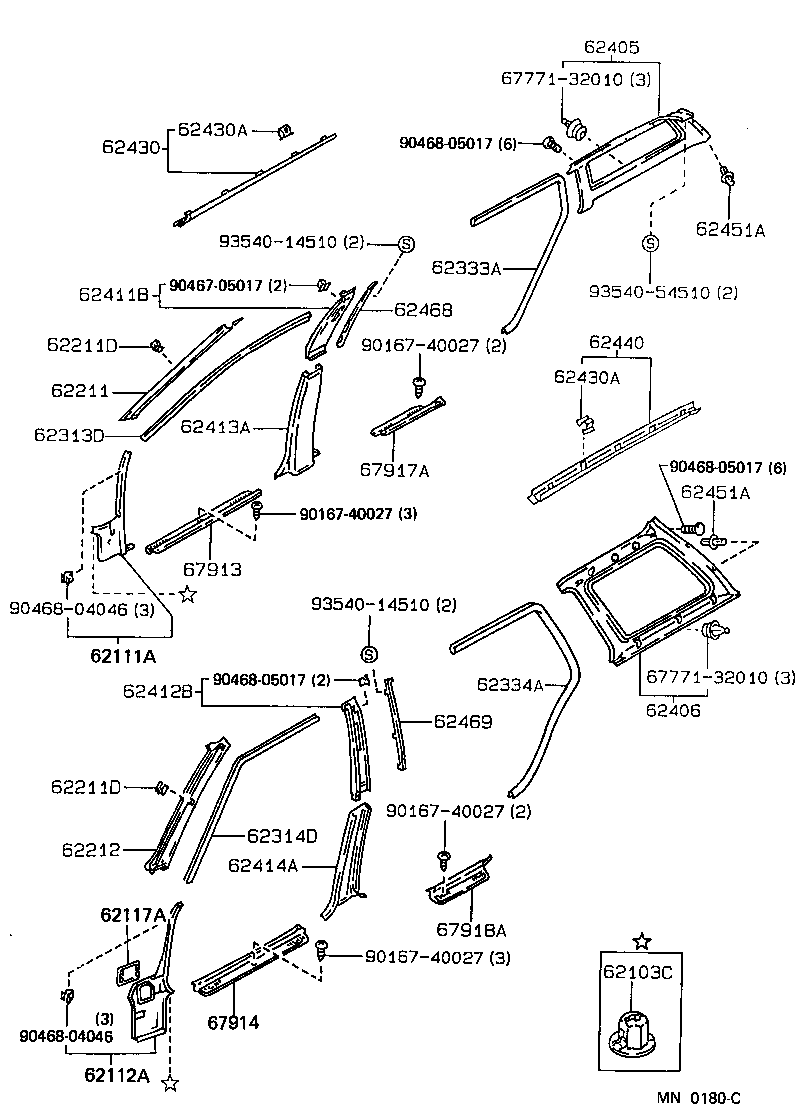

Figure MN0179A MN0179A 1987-08 → — Figure MN0180C MN0180C 1987-10 → — Figure MN0181A MN0181A 1988-02 → —

Part groups

PNCDescription
62103C Clip, Cowl Side Trim Board Set
62111A Trim Sub-assy, Cowl Side, RH
62112A Trim Sub-assy, Cowl Side, LH
62117A Cover, Cowl Side Trim Service Hole
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62405 Garnish Sub-assy, Roof Side, Inner RH
62406 Garnish Sub-assy, Roof Side, Inner LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62430 Garnish Assy, Roof Side Rail, RH
62430A Clip, Roof Side Rail Garnish
62440 Garnish Assy, Roof Side Rail, LH
62451A Clip, Side Garnish
62461F Clip (FOR ROOF SIDE TRIM GARNISH)
62468 Garnish, Center Pillar, Rear RH
62469 Garnish, Center Pillar, Rear LH
62471A Garnish, Roof Side, Inner RH
62472A Garnish, Roof Side, Inner LH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
