Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

36 part groups · 5 illustrations

Illustrations

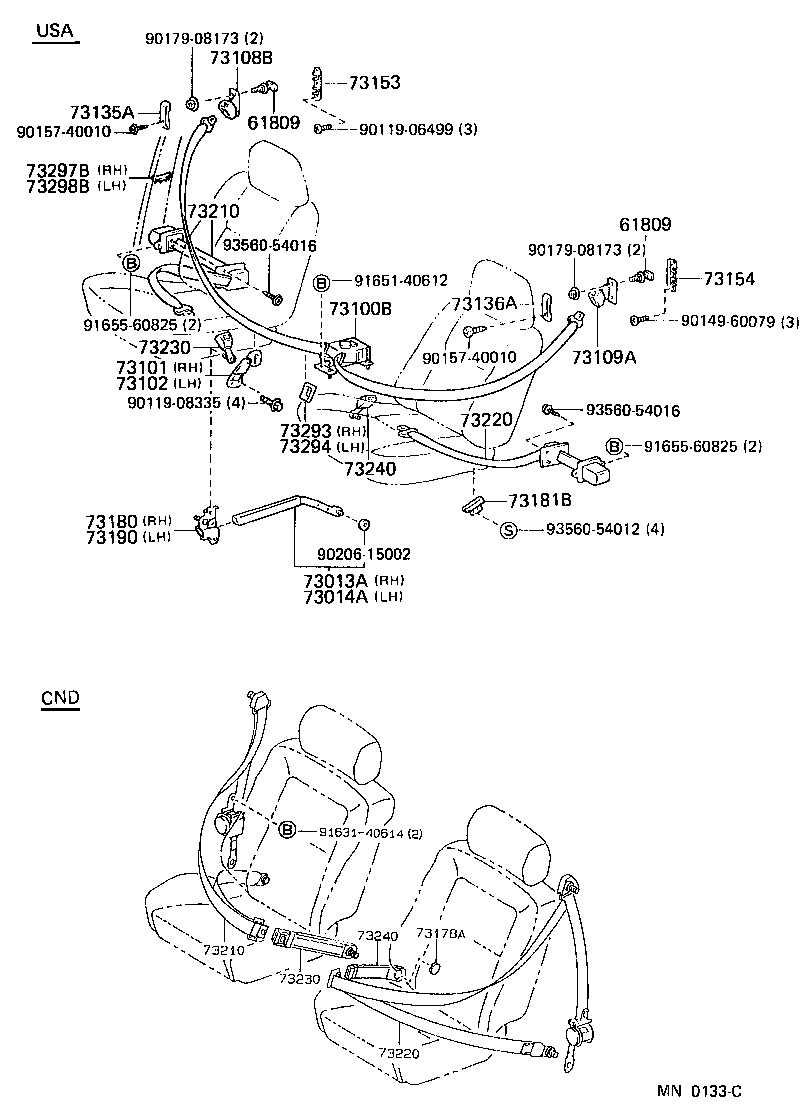

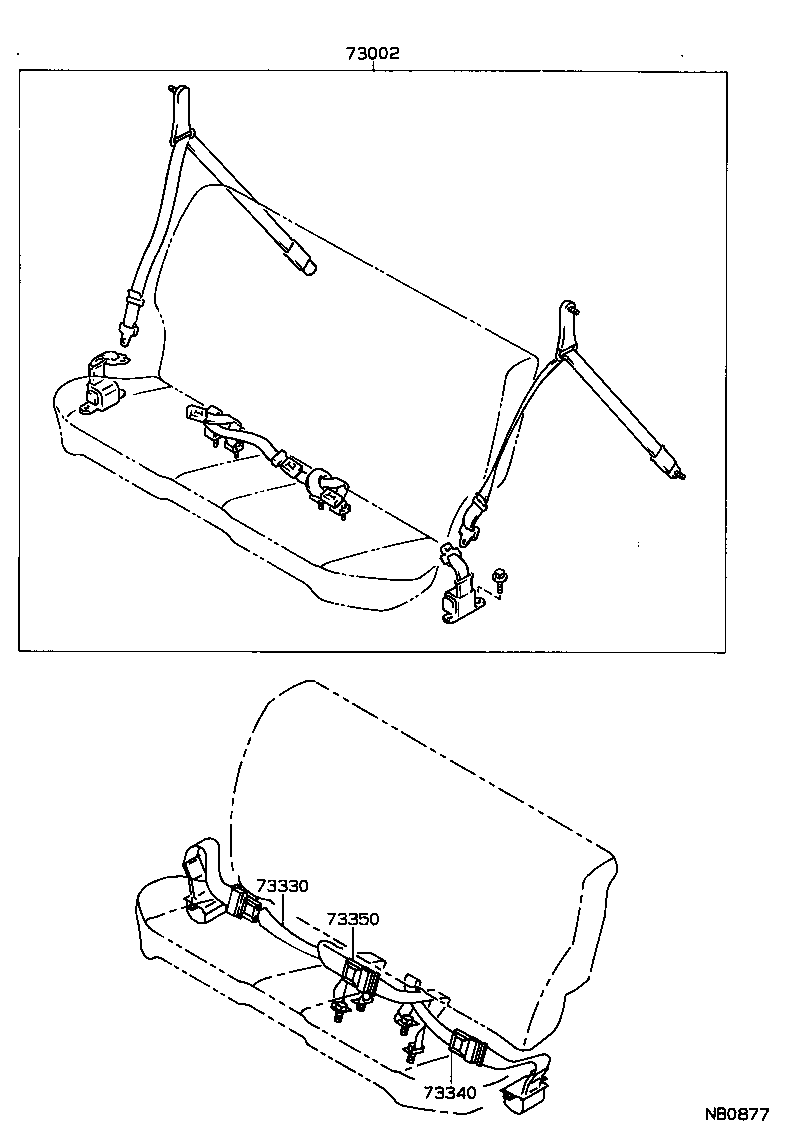

Figure NB0511 NB0511 1987-08 → 1989-08 Figure MN0133C MN0133C 1989-08 → — Figure NB0512B NB0512B 1987-08 → 1988-08 Figure NB0877 NB0877 1988-02 → 1988-08 Figure MN0255A MN0255A 1988-08 → —

Part groups

PNCDescription
61809 Pin Sub-assy, Shoulder Belt Anchor
73002 Belt Set, Rear Seat
73003 Belt Set, Rear Seat 3 Point Type, RH
73004 Belt Set, Rear Seat 3 Point Type, LH
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73014A Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73100B Belt Assy, Front Seat Shoulder
73101 Guide Sub-assy, Front Seat Belt, Inner RH
73102 Guide Sub-assy, Front Seat Belt, Inner LH
73108B Buckle Sub-assy, Front Shoulder Belt Anchor, RH
73109A Buckle Sub-assy, Front Shoulder Belt Anchor, LH
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73153 Clevis, Front Shoulder Belt Anchor, RH
73154 Clevis, Front Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73181B Guide, Front Seat Lap Belt, Outer
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73293 Cover, Rear Console Belt Hole, RH
73294 Cover, Rear Console Belt Hole, LH
73297B Cover, Quarter Trim Belt Hole, RH
73298B Cover, Quarter Trim Belt Hole, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
