Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

15 part groups · 3 illustrations

Illustrations

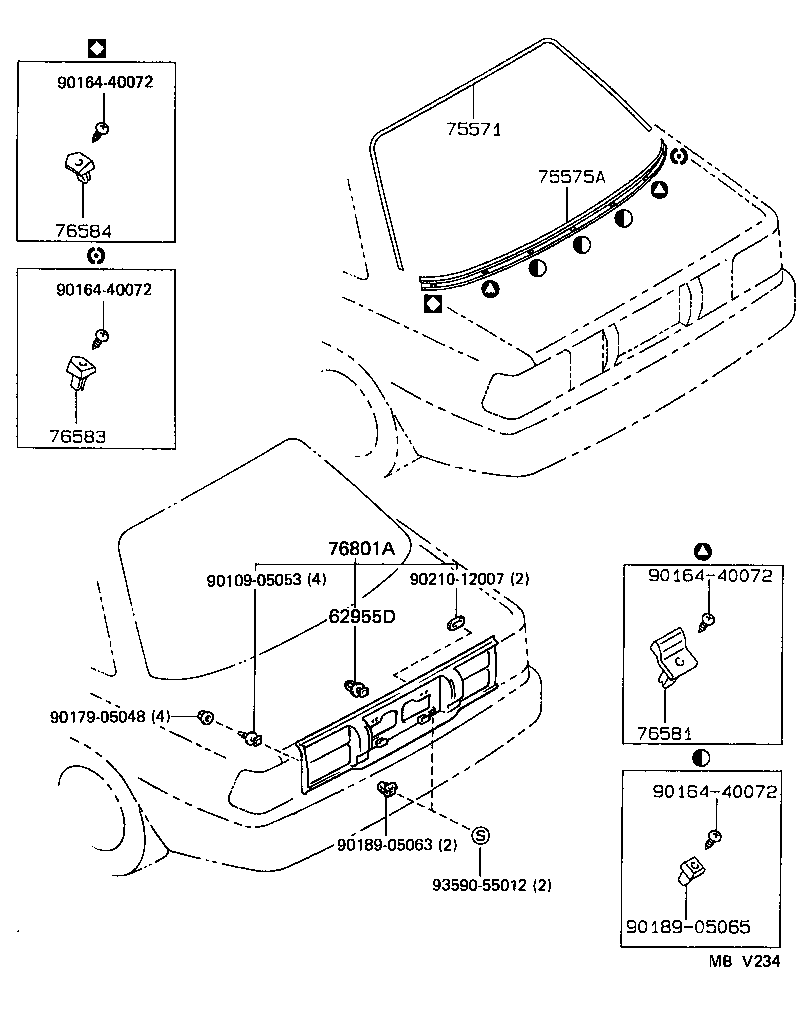

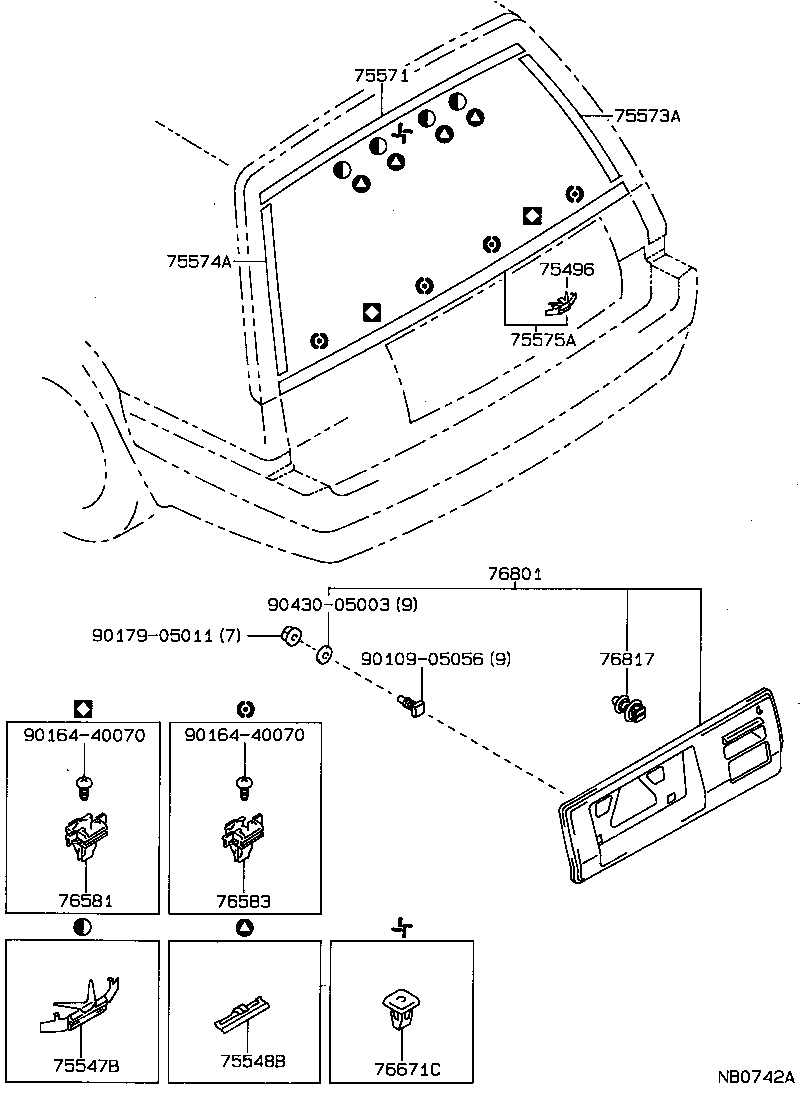

Figure NB0095C NB0095C 1987-08 → 1990-08 Figure MBV234 MBV234 1990-08 → — Figure NB0742A NB0742A 1988-02 → —

Part groups

PNCDescription
62955D Retainer, Luggage Compartment Door Garnish
75496 Clip, Back Window Outside Moulding, NO.1
75547B Clip, Windshield Outside Moulding, NO.3
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
76671C Clip, Back Window Moulding
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
