Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

12 part groups · 2 illustrations

Illustrations

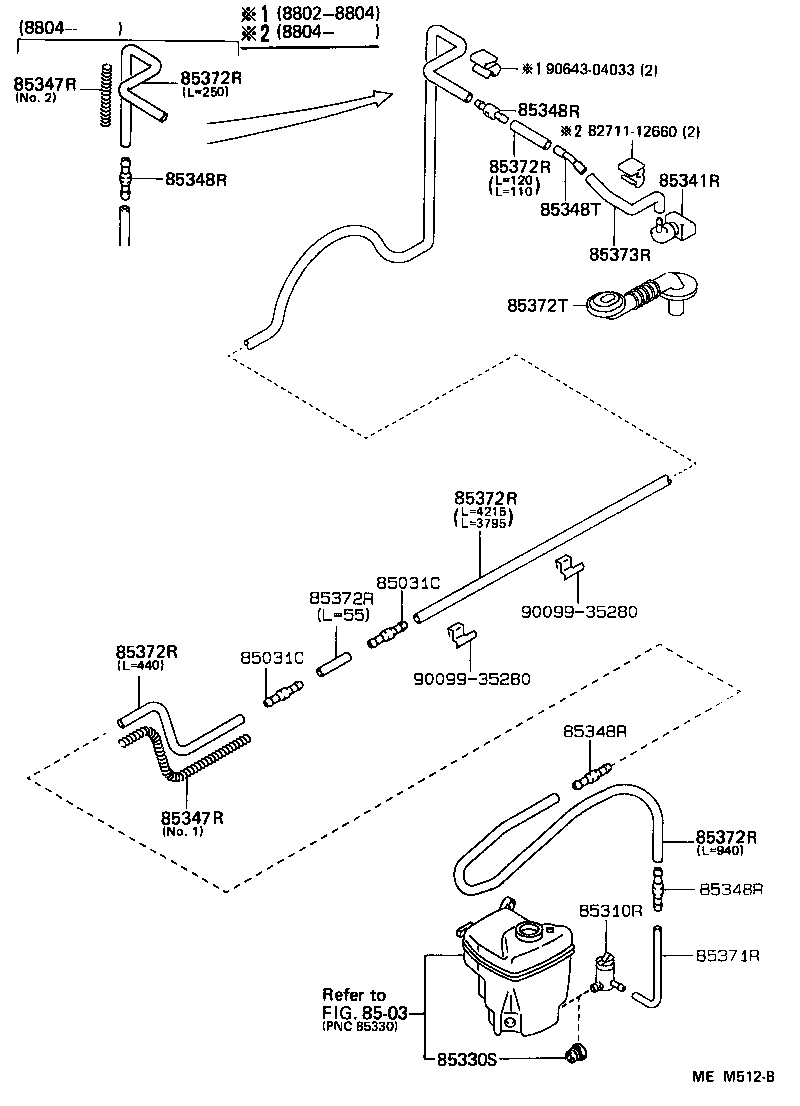

Figure NE0512F NE0512F 1987-10 → — Figure MEM512B MEM512B 1988-02 → 1990-09

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85341R Nozzle Assy, Washer
85347R Spring
85348R Joint, Rear Washer Hose, NO.1
85348T Joint, Rear Washer Hose, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85372T Grommet, Washer
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85382 Cover, Rear Washer Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
