Factory parts data · Europe

Toyota Corolla Jpp

1987-08 → 1992-06 · chassis AE92,95 · catalogue 151420 · Europe

Discontinued model Data version 1993-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

3 part groups · 2 illustrations

Illustrations

Figure MEN208B

MEN208B 1987-08 → —

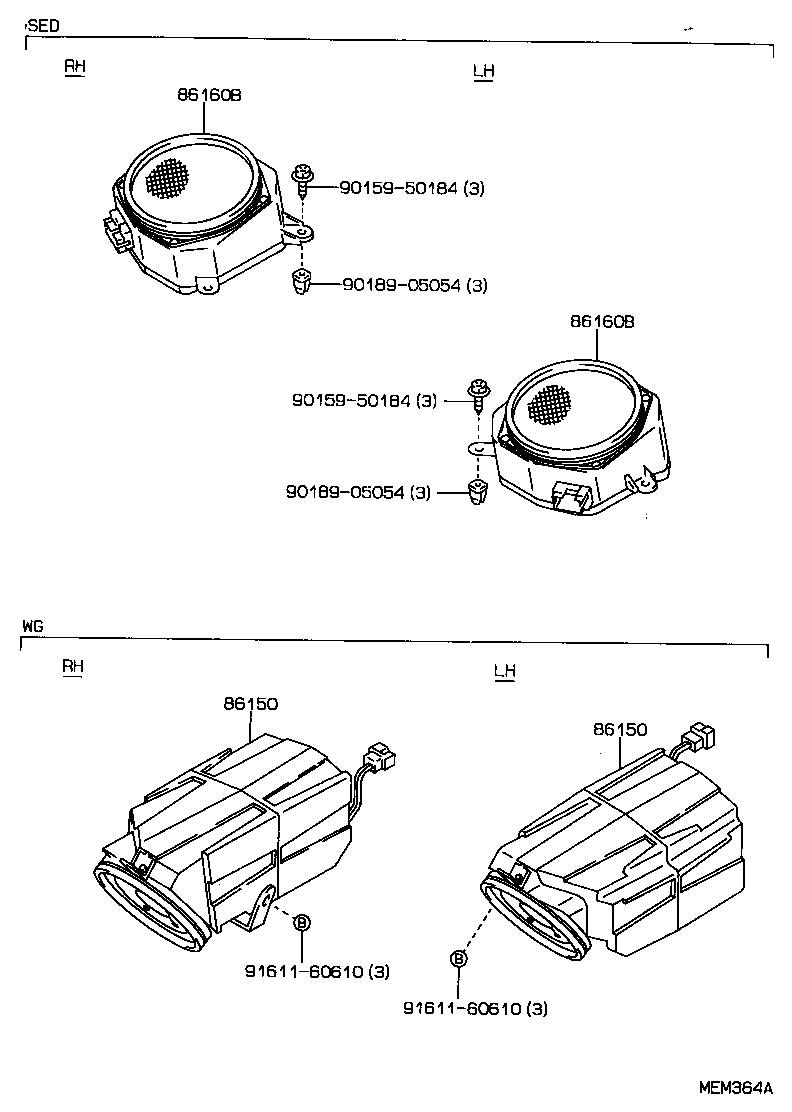

Figure MEM364A

MEM364A 1987-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
