Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 5 illustrations

Illustrations

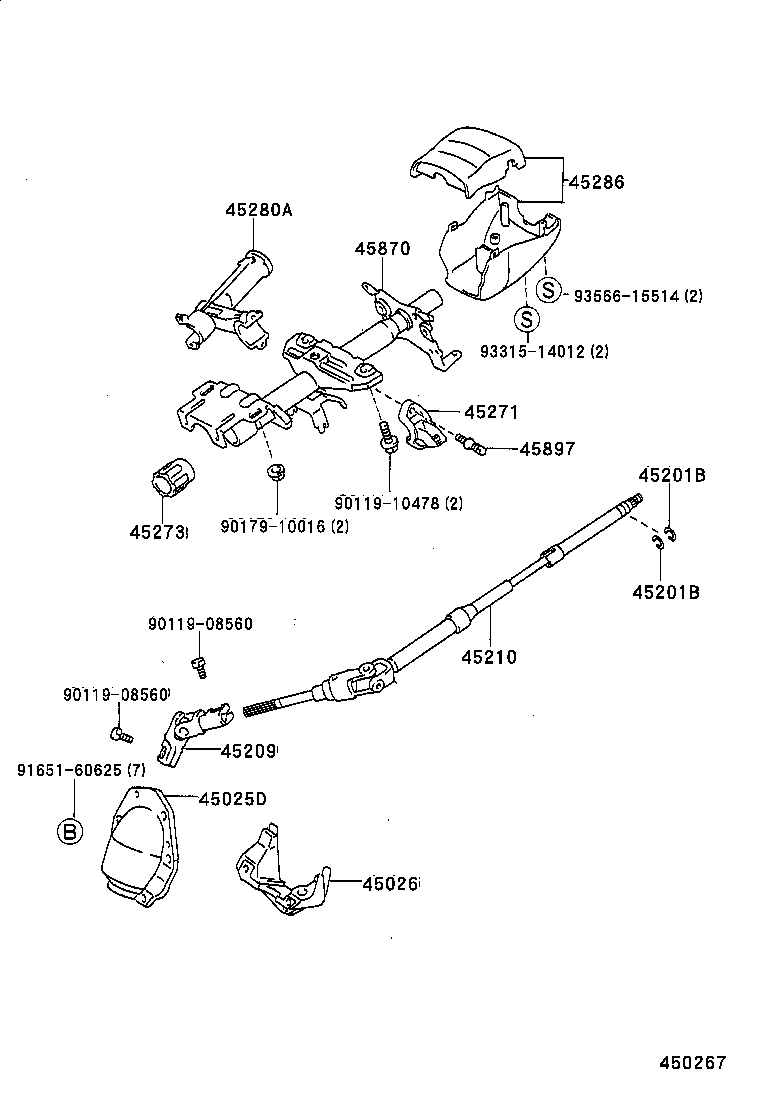

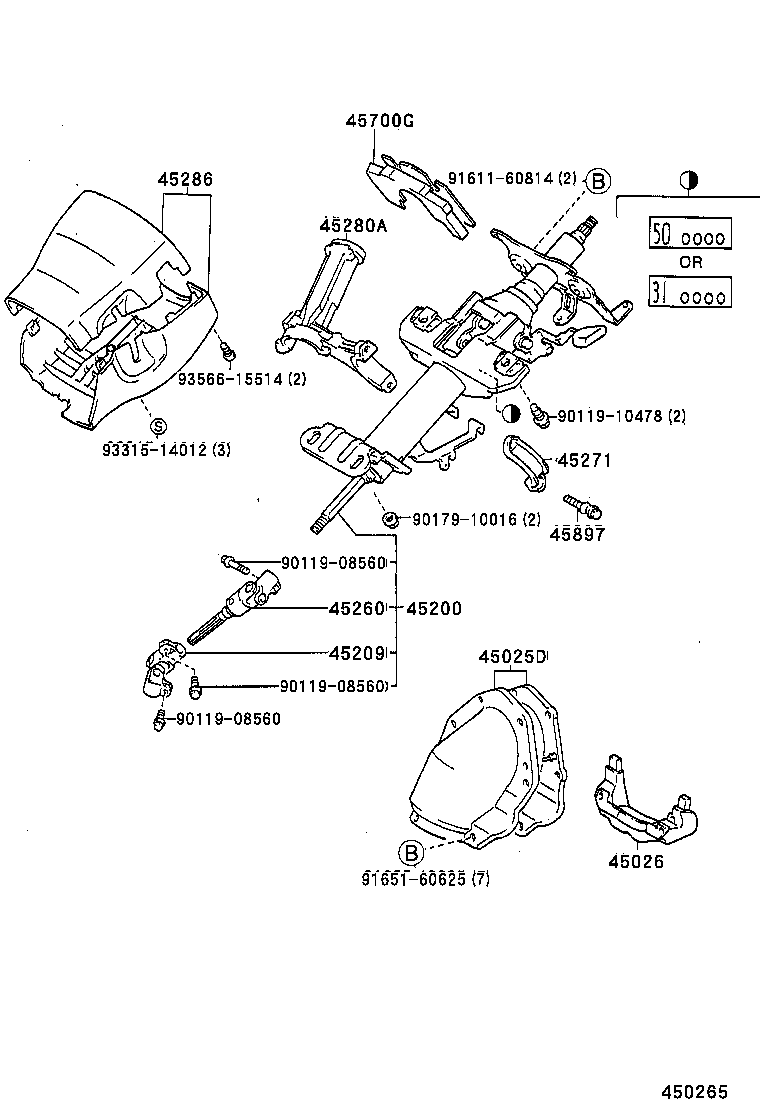

Figure 450264 450264 1992-06 → — Figure 450265 450265 1993-01 → — Figure 450266 450266 1992-09 → — Figure 450266 450266 1995-08 → — Figure 450267 450267 1992-06 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45200 Post Assy, Steering
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45700G Damper Assy, Steering
45870 Tube Assy, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
