Toyota Corolla Jpp
1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe
Discontinued model
Data version 1998-02

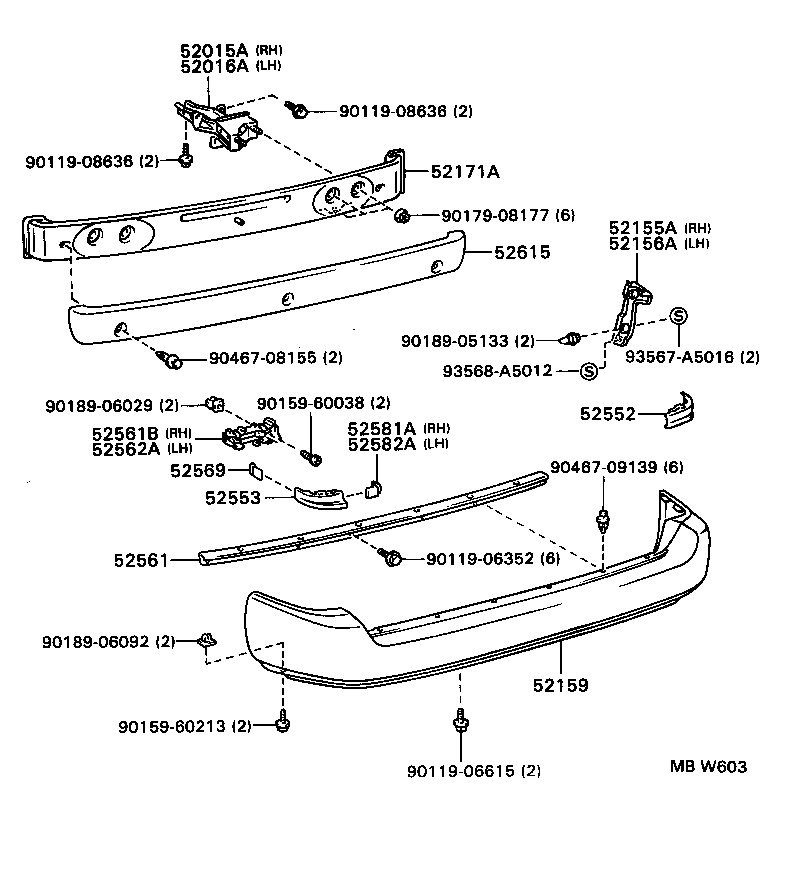

Rear Bumper & Bumper Stay
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52075 | Retainer Sub-assy, Rear Bumper Side, RH |
| 52076 | Retainer Sub-assy, Rear Bumper Side, LH |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52187B | Guide, Rear Bumper Location |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52561 | Retainer, Rear Bumper, Upper Center |
| 52561B | Retainer, Rear Bumper Filler, NO.1 |
| 52562A | Retainer, Rear Bumper Filler, NO.2 |
| 52569 | Pad, Rear Bumper Filler |
| 52581 | Protector, Rear Bumper, RH |
| 52581A | Protector, Rear Bumper Filler |
| 52582 | Protector, Rear Bumper, LH |
| 52582A | Protector, Rear Bumper Filler, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52615 | Absorber, Rear Bumper Energy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
