Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02

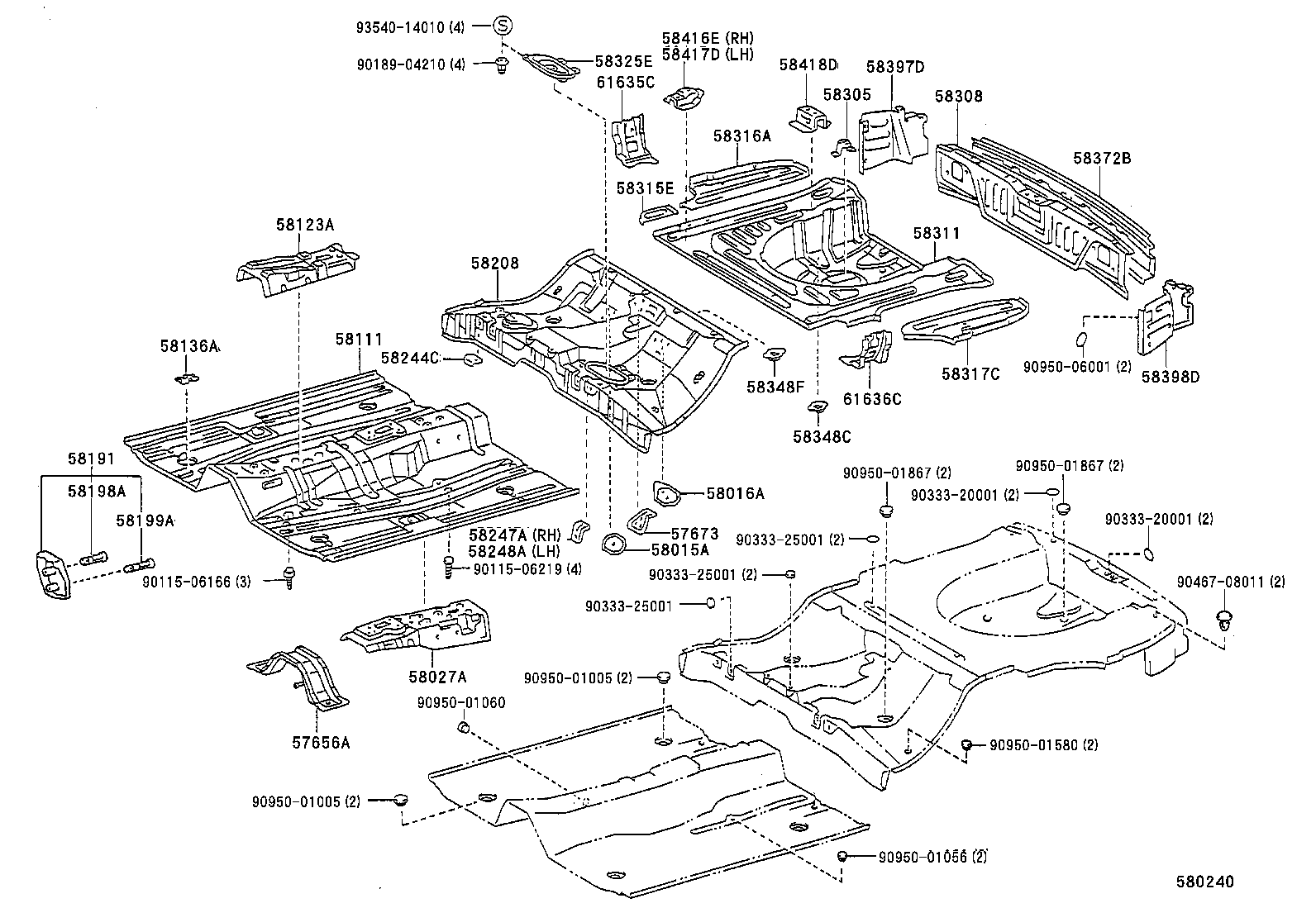

Floor Pan & Lower Back Panel

38 part groups · 2 illustrations

PNC	Description
57656A	Bracket, Exhaust Pipe Mounting, NO.1
57673	Bracket, Rear Seatback Hinge Mounting
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027A	Reinforce Sub-assy, Seat Belt Anchor
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136A	Cover, Front Floor Service Hole
58191	Footrest, Front Floor
58198A	Clip, Footrest, NO.1
58199A	Clip, Footrest, NO.2
58208	Pan, Center Floor
58215B	Bracket, Rear Seat Mounting, RH
58216B	Bracket, Rear Seat Mounting, LH
58244C	Bracket, Rear Seat Cushion Mounting, RH
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58308	Panel Sub-assy, Body Lower Back, Inner
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58315E	Extension Rear Floor Side Panel, Front RH
58316A	Extension, Rear Floor Side Panel, Rear RH
58317C	Extension, Rear Floor Side Panel, Rear LH
58325E	Cover, Rear Floor Service Hole
58348C	Bracket, Rear Floor Heat Insulator, NO.3
58348F	Bracket, Center Floor Hear Insulator, NO.3
58355C	Bracket, Rear Bumper Arm
58372B	Panel, Body Lower Back, Lower
58397D	Panel, Rear Floor End Dust Seal, RH
58398D	Panel, Rear Floor End Dust Seal, LH
58416E	Bracket, Deck Board, NO.1 RH
58417D	Bracket, Deck Board, NO.1 LH
58418D	Bracket, Deck Board, NO.2
61635C	Brace, Quarter Wheel House, RH
61636C	Brace, Quarter Wheel House, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
