Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02

Front Door Panel & Glass

38 part groups · 3 illustrations

PNC	Description

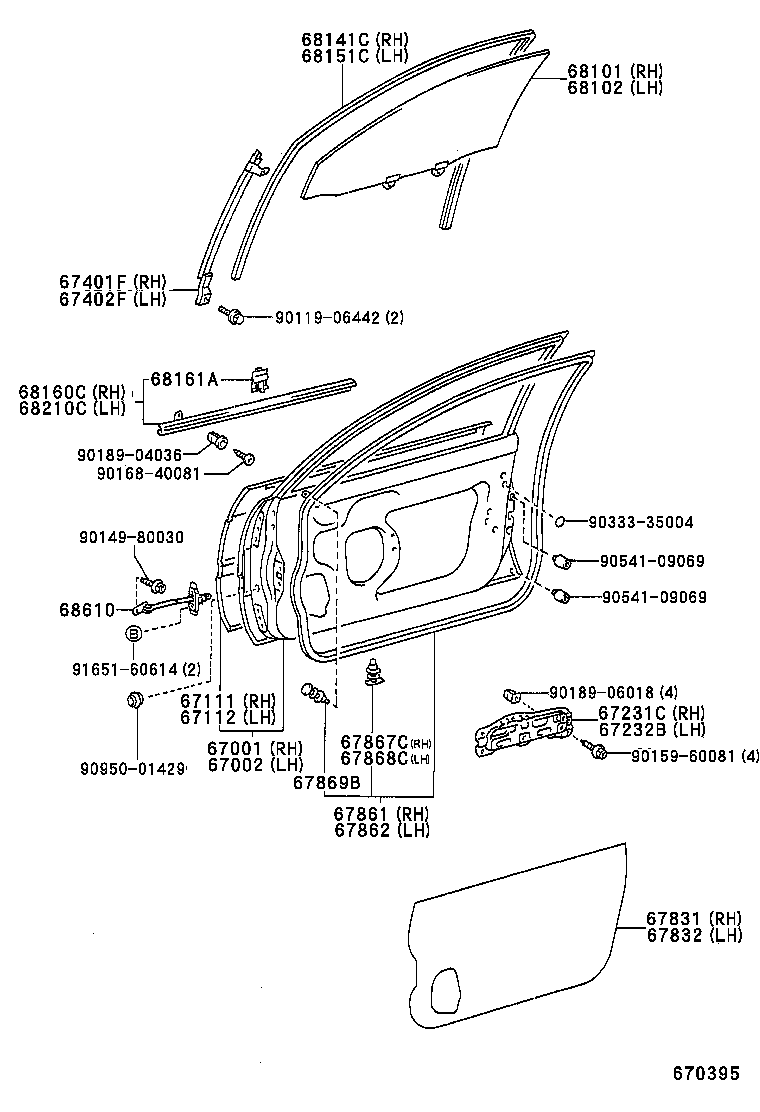

67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67231C	Support, Door Trim, RH
67232B	Support, Door Trim, LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67491B	Garnish, Front Door Window Upper Bracket, RH
67492B	Garnish, Front Door Window Upper Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish

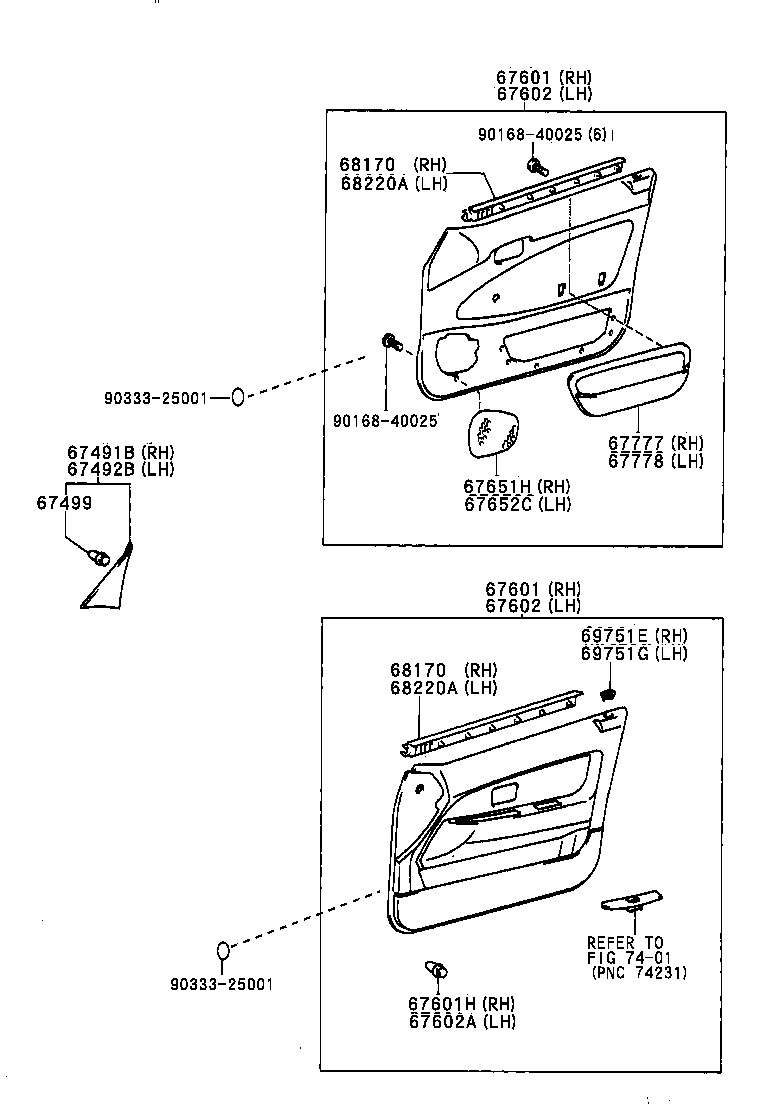

67601	Board Sub-assy, Front Door Trim, RH
67601H	Retainer, Door Trim, RH
67602	Board Sub-assy, Front Door Trim, LH
67602A	Retainer, Door Trim, LH
67651H	Grille, Speaker Door, RH
67652C	Grille, Speaker Door, LH
67777	Pocket, Front Door Trim, RH
67778	Pocket, Front Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68160C	Weatherstrip Assy, Front Door Glass, Outer RH
68161A	Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170	Weatherstrip Assy, Front Door Glass, Inner
68210C	Weatherstrip Assy, Front Door Glass, Outer LH
68220A	Weatherstrip Assy, Front Door Glass, Inner LH
68610	Check Assy, Front Door
69751E	Holder, Front Door Lock Control Knob
69751G	Holder, Front Door Lock Control Knob

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
