Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

38 part groups · 6 illustrations

Illustrations

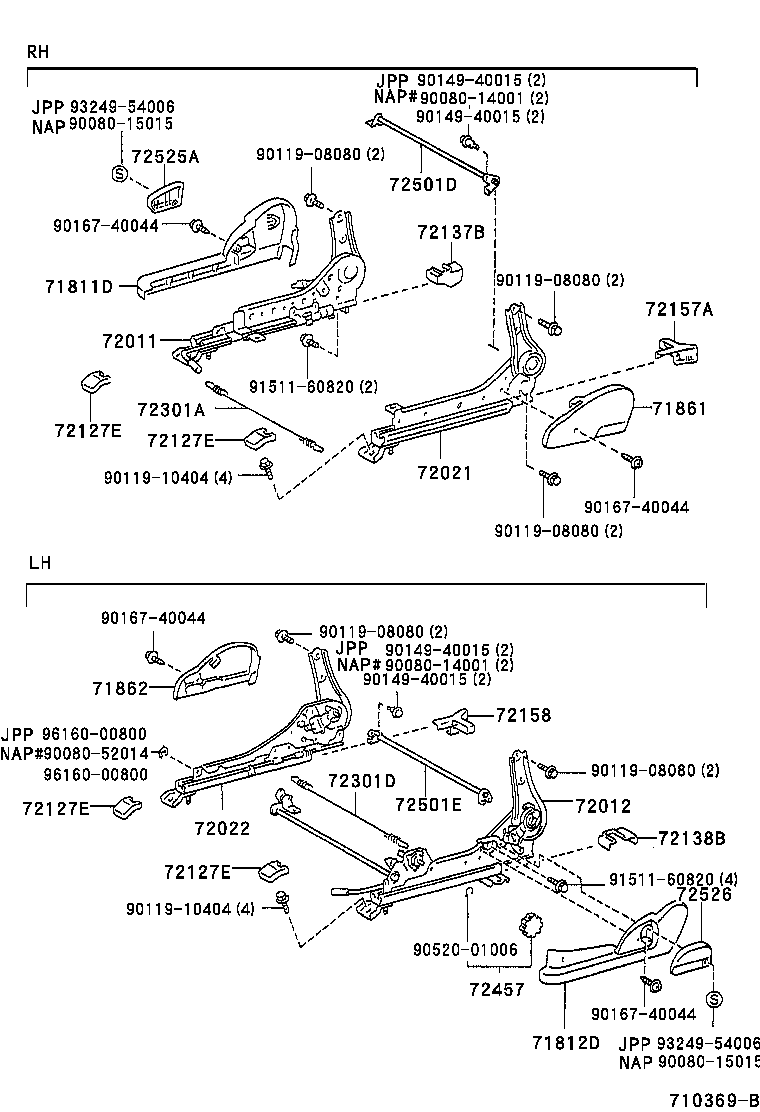

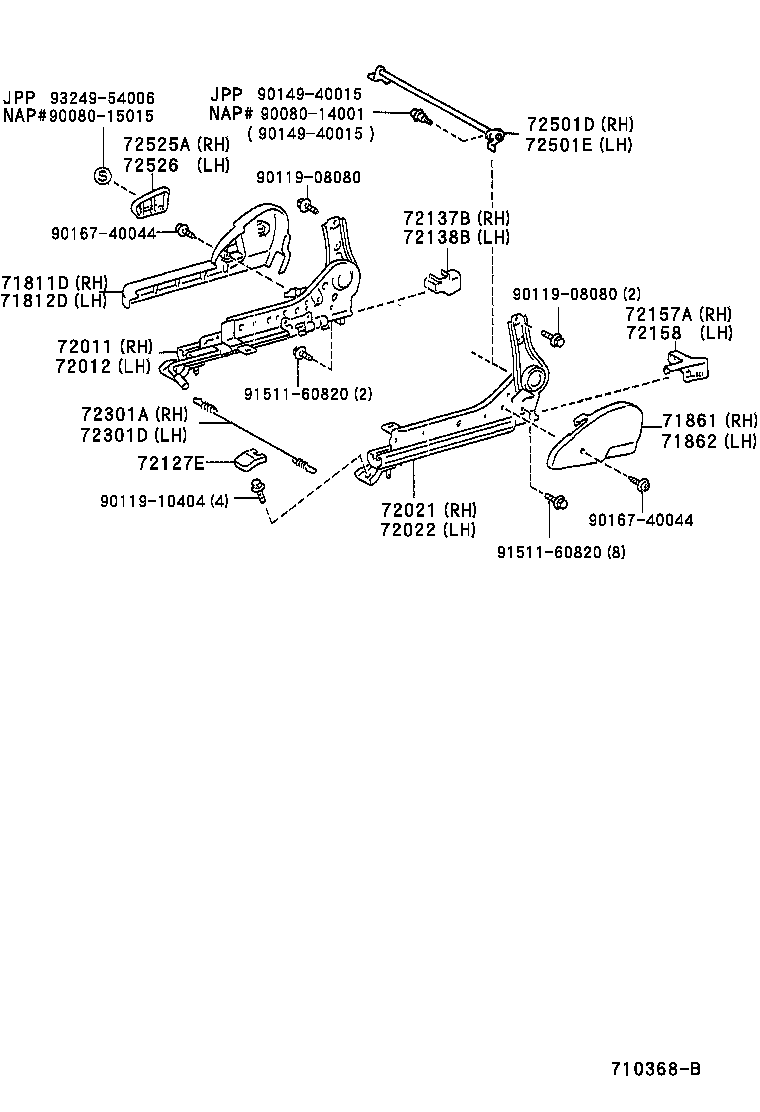

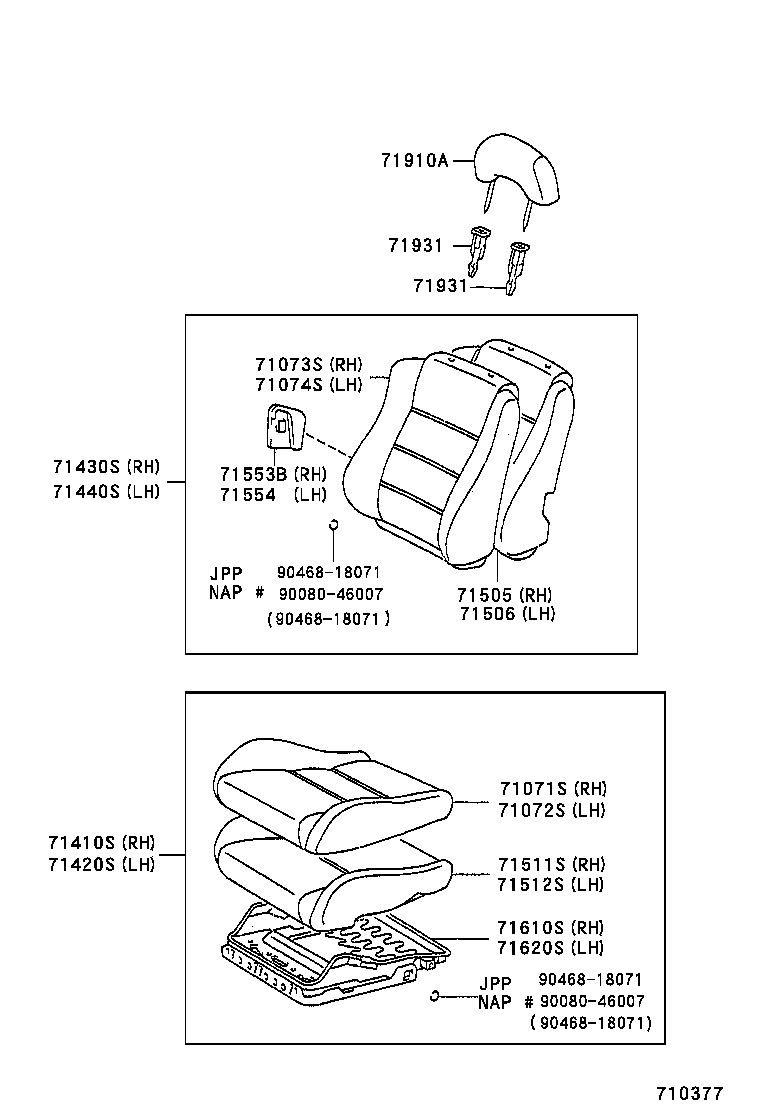

Figure 710376 710376 1996-08 → — Figure 710366A 710366A 1992-06 → 1996-08 Figure 710377 710377 1996-08 → — Figure 710367A 710367A 1992-06 → 1996-08 Figure 710368B 710368B 1992-06 → — Figure 710369B 710369B 1992-06 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505 Pad Sub-assy, Front Seatback W/Frame, RH
71506 Pad Sub-assy, Front Seatback W/Frame, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71553B Pad, Front Seatback, B
71554 Pad, Front Seatback, C
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72127E Cover, Seat Track Bracket, Inner Front
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72457 Knob, Vertical Seat Adjuster
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
