Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

49 part groups · 6 illustrations

Illustrations

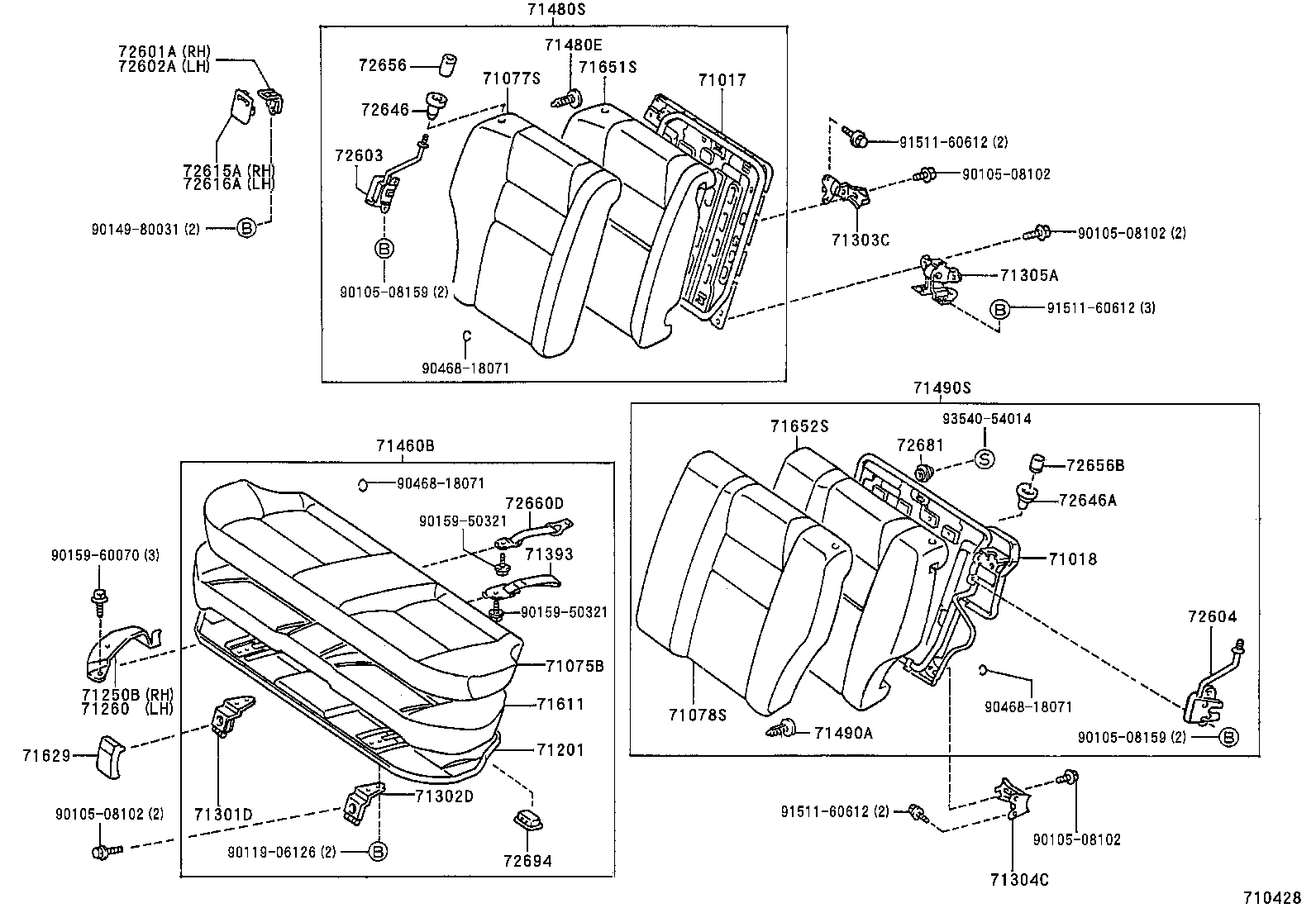

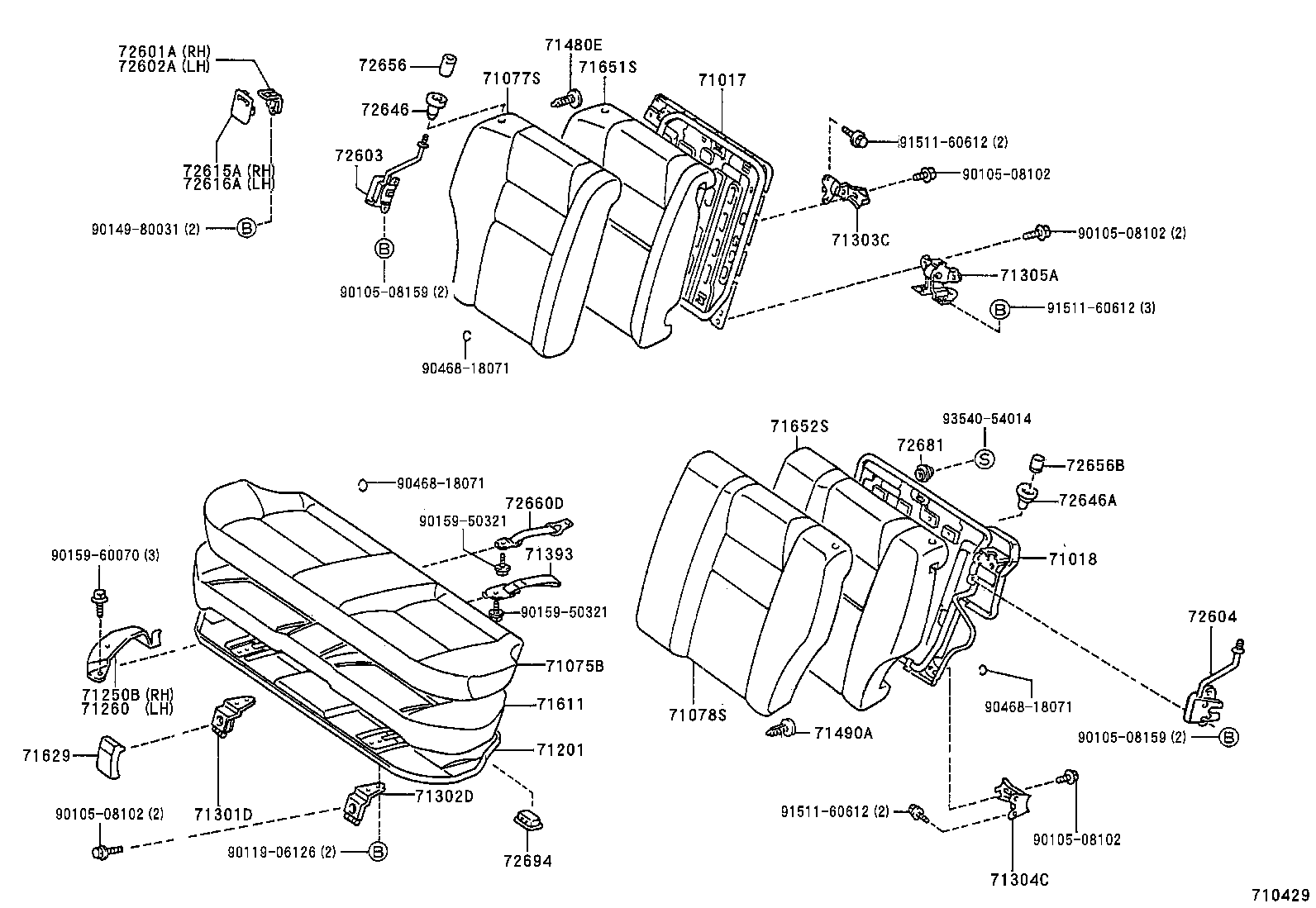

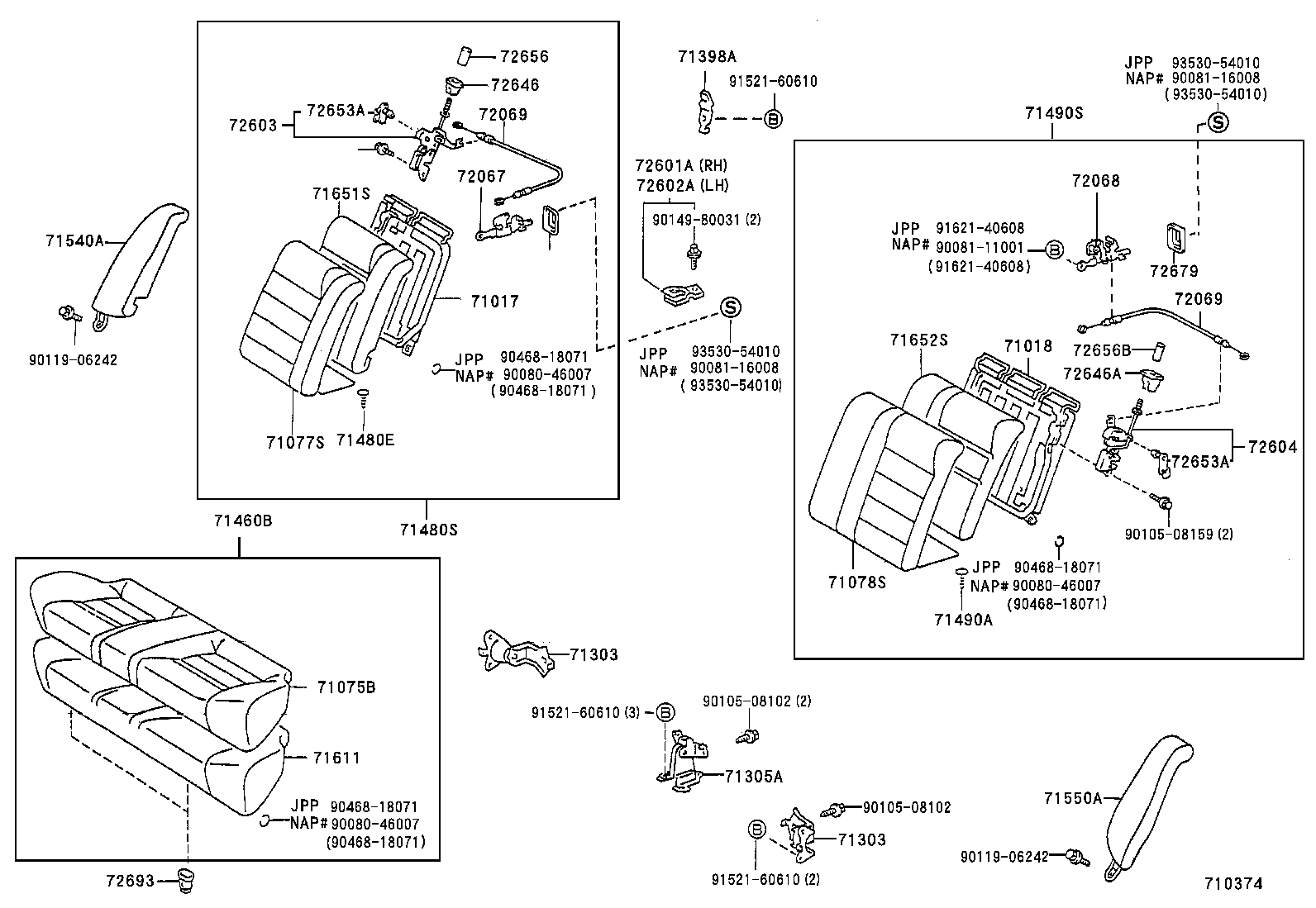

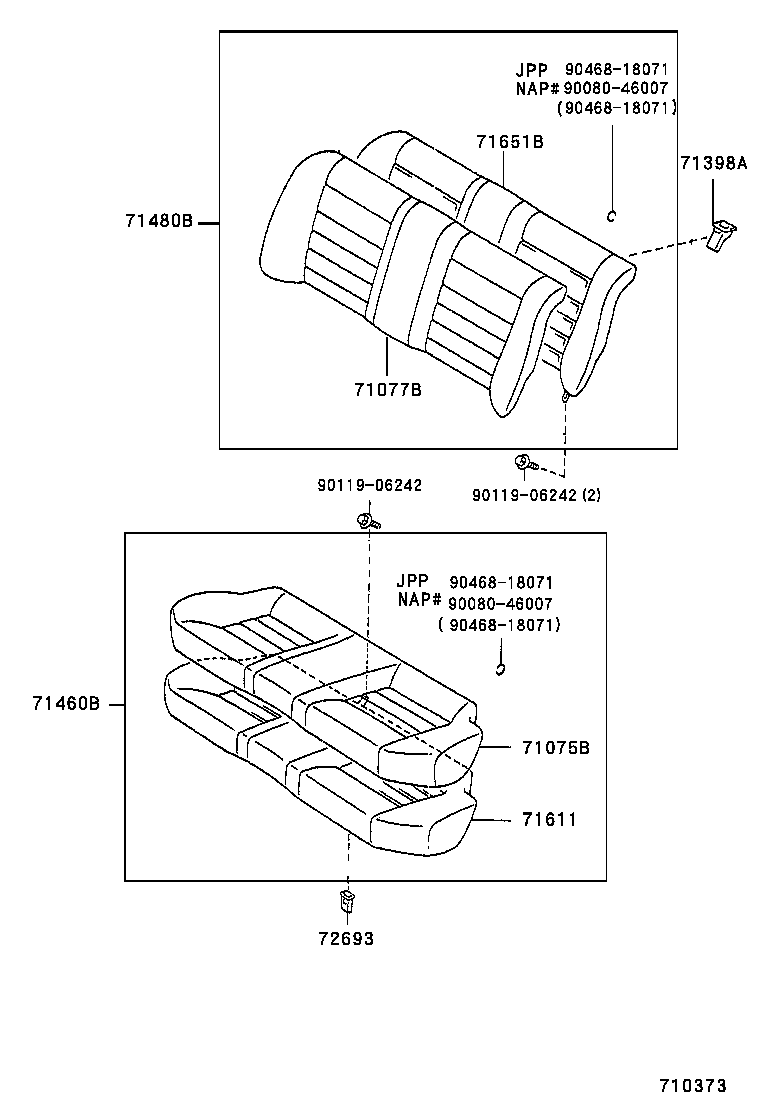

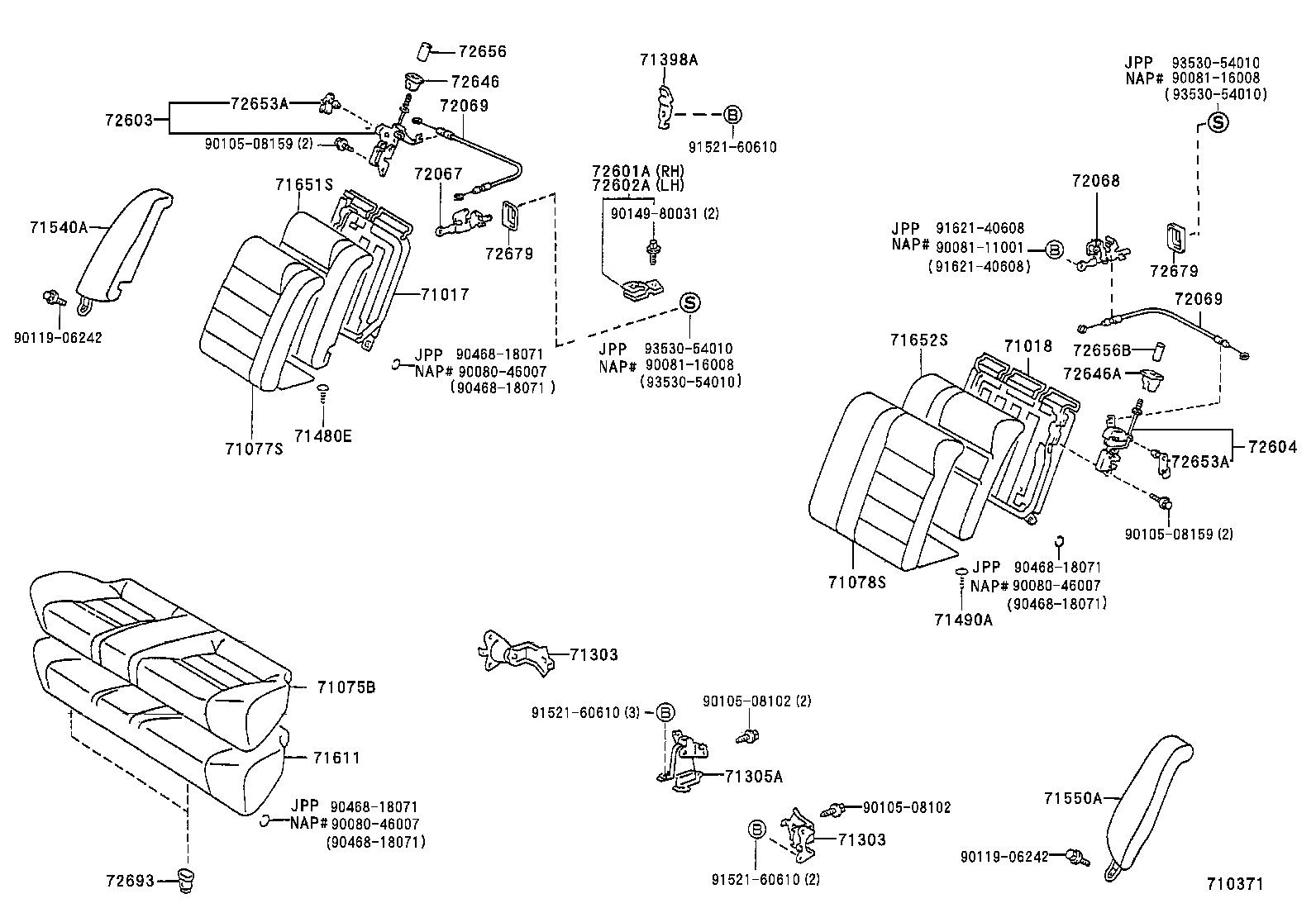

Figure 710370 710370 1992-06 → 1996-08 Figure 710373 710373 1996-08 → — Figure 710371 710371 1992-06 → 1996-08 Figure 710374 710374 1996-08 → — Figure 710429 710429 1992-06 → 1996-08 Figure 710428 710428 1996-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71250B Bracket Assy, Seat, Outer RH
71260 Bracket Assy, Seat, Outer LH
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71303 Hinge Sub-assy, Rear Seatback
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71393 Band, Rear Seat Cushion
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480E Clip, Rear Seatback, RH
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A Clip, Rear Seatback, LH
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71629 Cover, Rear Seat Cushion Hinge
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72069 Cable Sub-assy, Rear Seatback Lock Control
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72646 Grommet, Rear Seatback Stop Button
72646A Grommet, Rear Seatback Stop Button
72653A Snap, Rear Seatback Lock Rod
72656 Button, Rear Seatback Stop Release
72656B Button, Rear Seatback Stop Release
72660D Support Assy, Rear Seat Cushion
72679 Bezel, Rear Seatback Lock Control
72681 Hook, Rear Seatback Lock, Lower
72693 Hook, Rear Seat Cushion Lock
72694 Cover, Rear Seat Cushion Lock
