Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

5 part groups · 2 illustrations

Illustrations

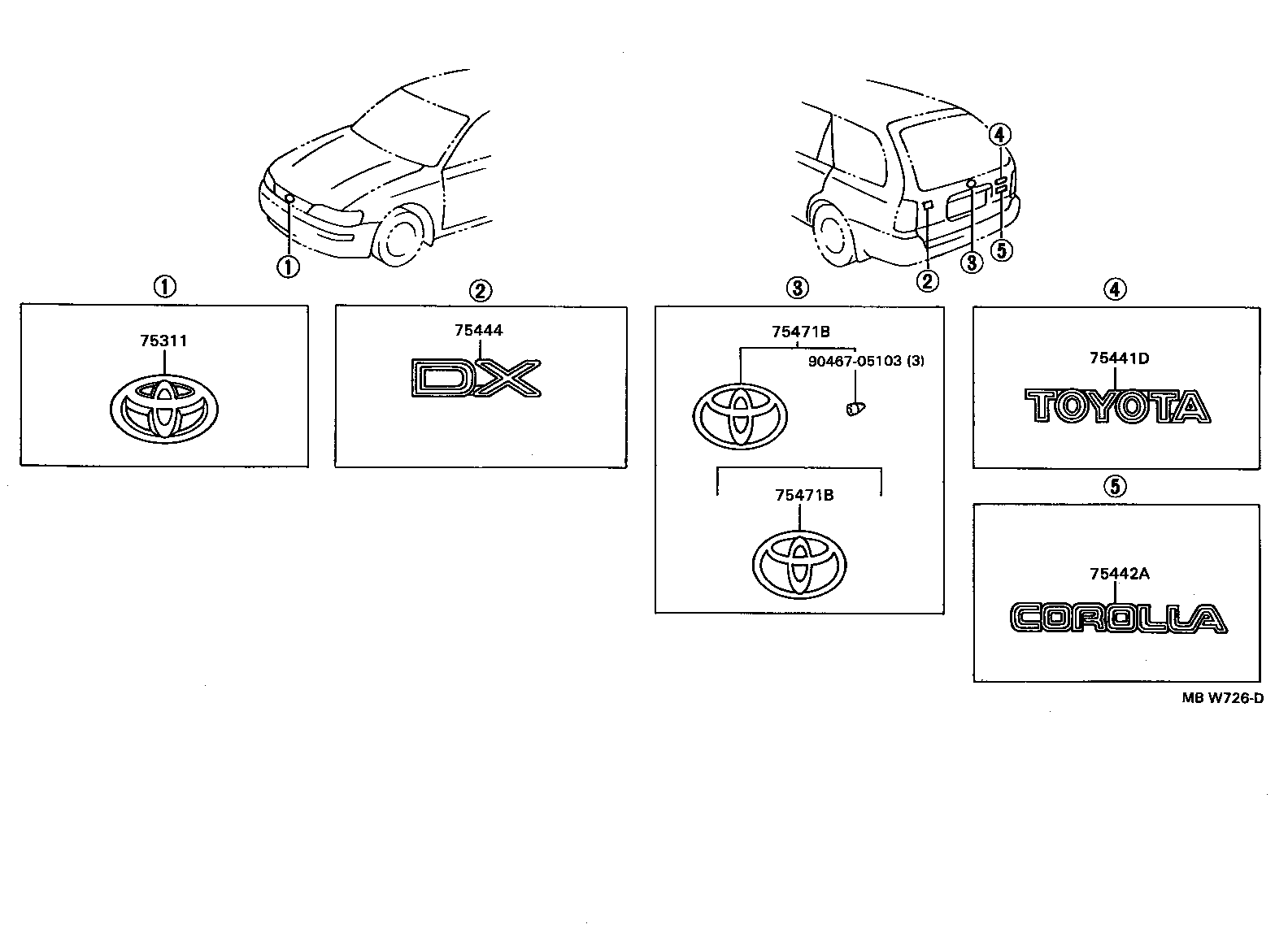

Figure 750123 750123 1992-06 → — Figure MBW726D MBW726D 1992-06 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75441D Plate, Luggage Compartment Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75444 Plate, Luggage Compartment Door, NO.4
75471B Plate, Rear Body Name, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
