Toyota Corolla Jpp

1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

4 part groups · 2 illustrations

Illustrations

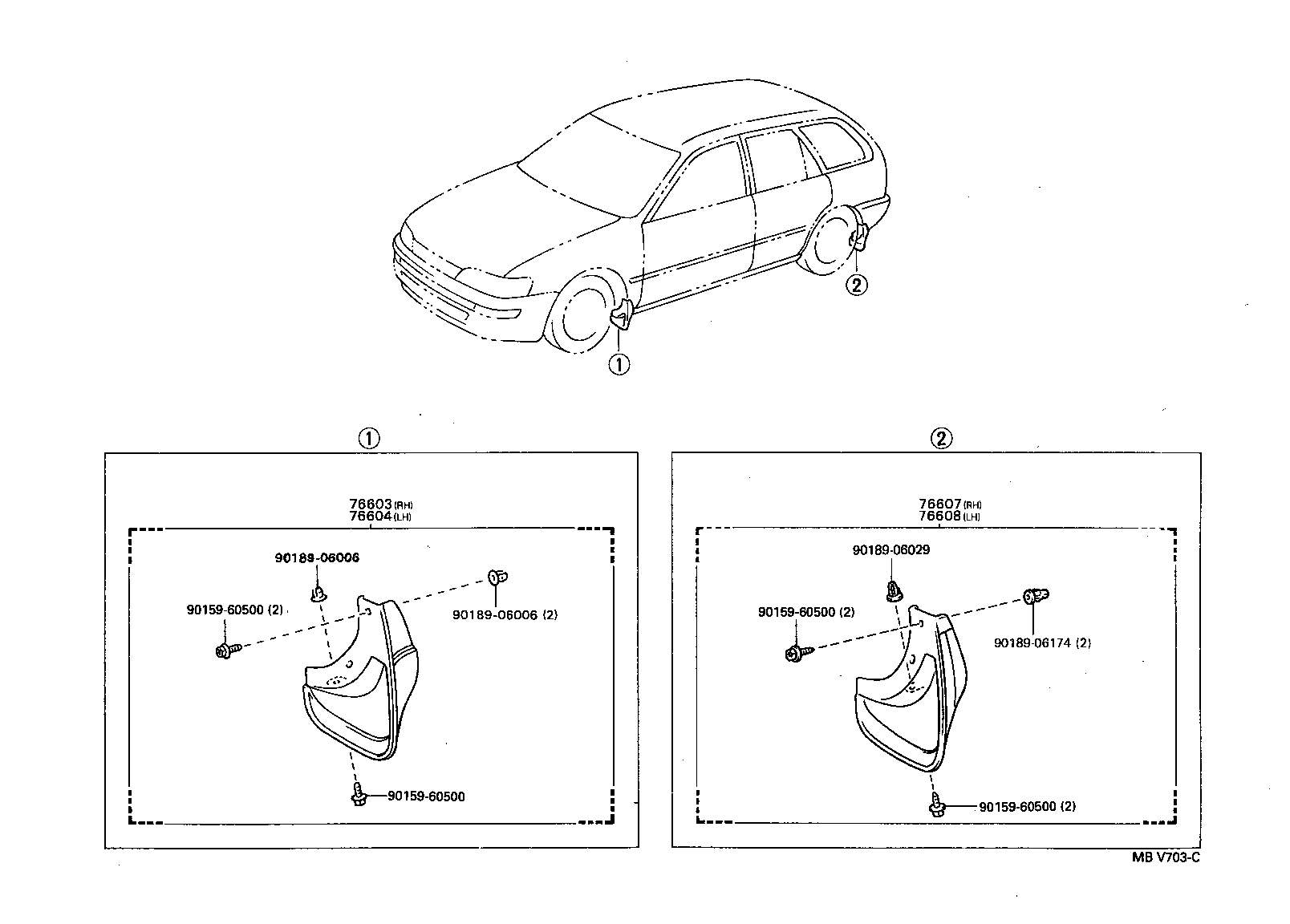

Figure 760043 760043 1992-06 → — Figure MBV703C MBV703C 1992-06 → —

Part groups

PNCDescription
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
