Toyota Corolla Jpp
1992-06 → 1997-04 · chassis AE10# · catalogue 151430 · Europe
Discontinued model
Data version 1998-02

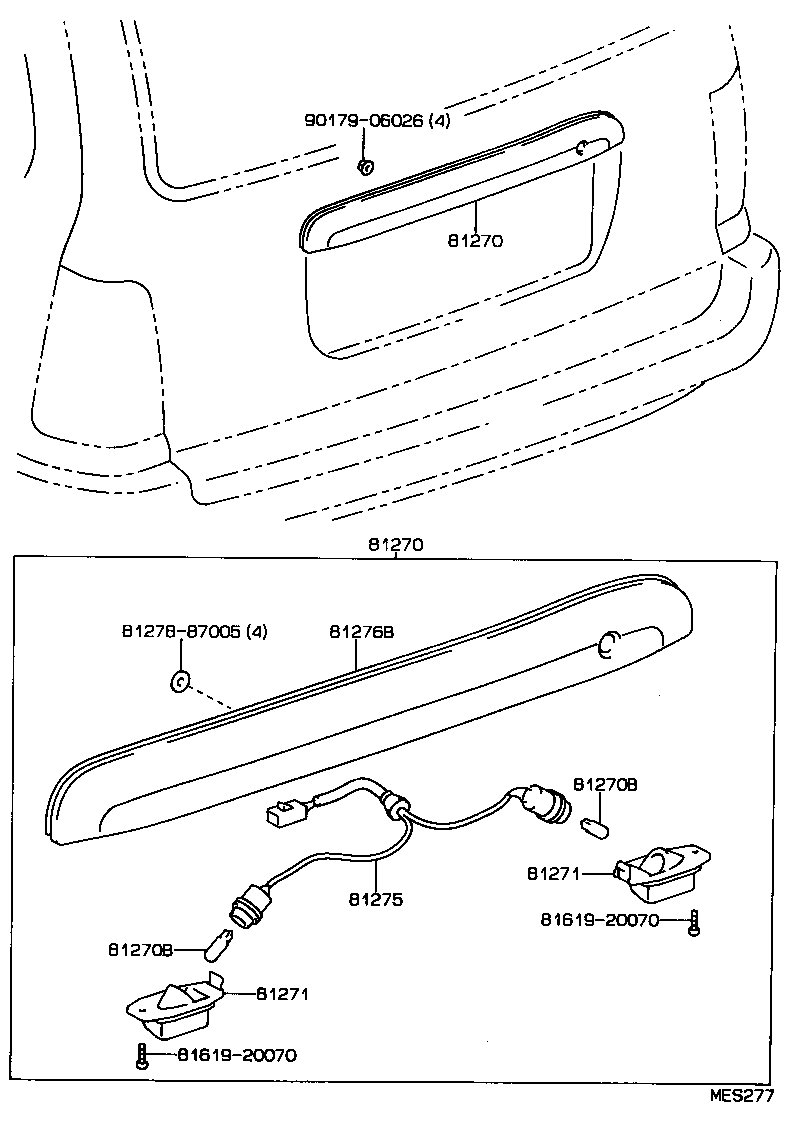

Rear License Plate Lamp
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81275 | Socket And Wire, License Plate Lamp |
| 81275A | Cord, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
