Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 7 illustrations

Illustrations

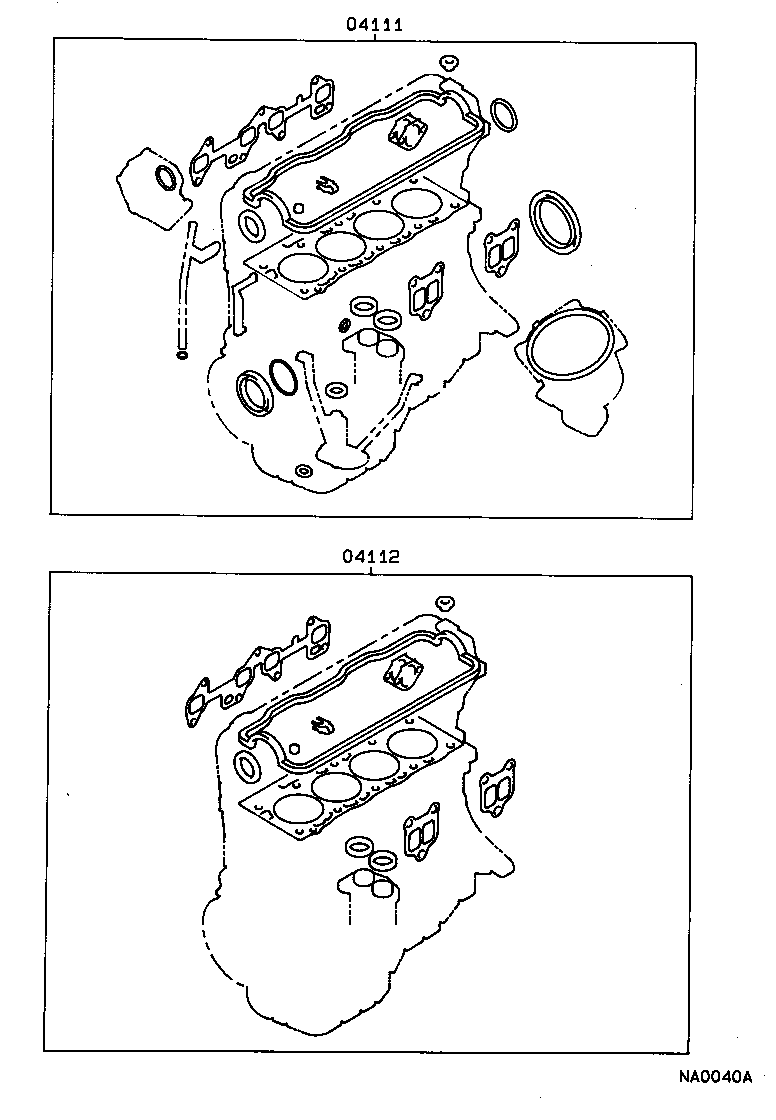

Figure NA0041A NA0041A 1987-05 → — Figure NA0042A NA0042A 1987-10 → — Figure NA0043A NA0043A 1987-05 → 1989-08 Figure MAC235 MAC235 1989-08 → — Figure NA0219 NA0219 1987-05 → — Figure NA0040A NA0040A 1987-05 → — Figure MA7888B MA7888B 1989-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
