Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

25 part groups · 7 illustrations

Illustrations

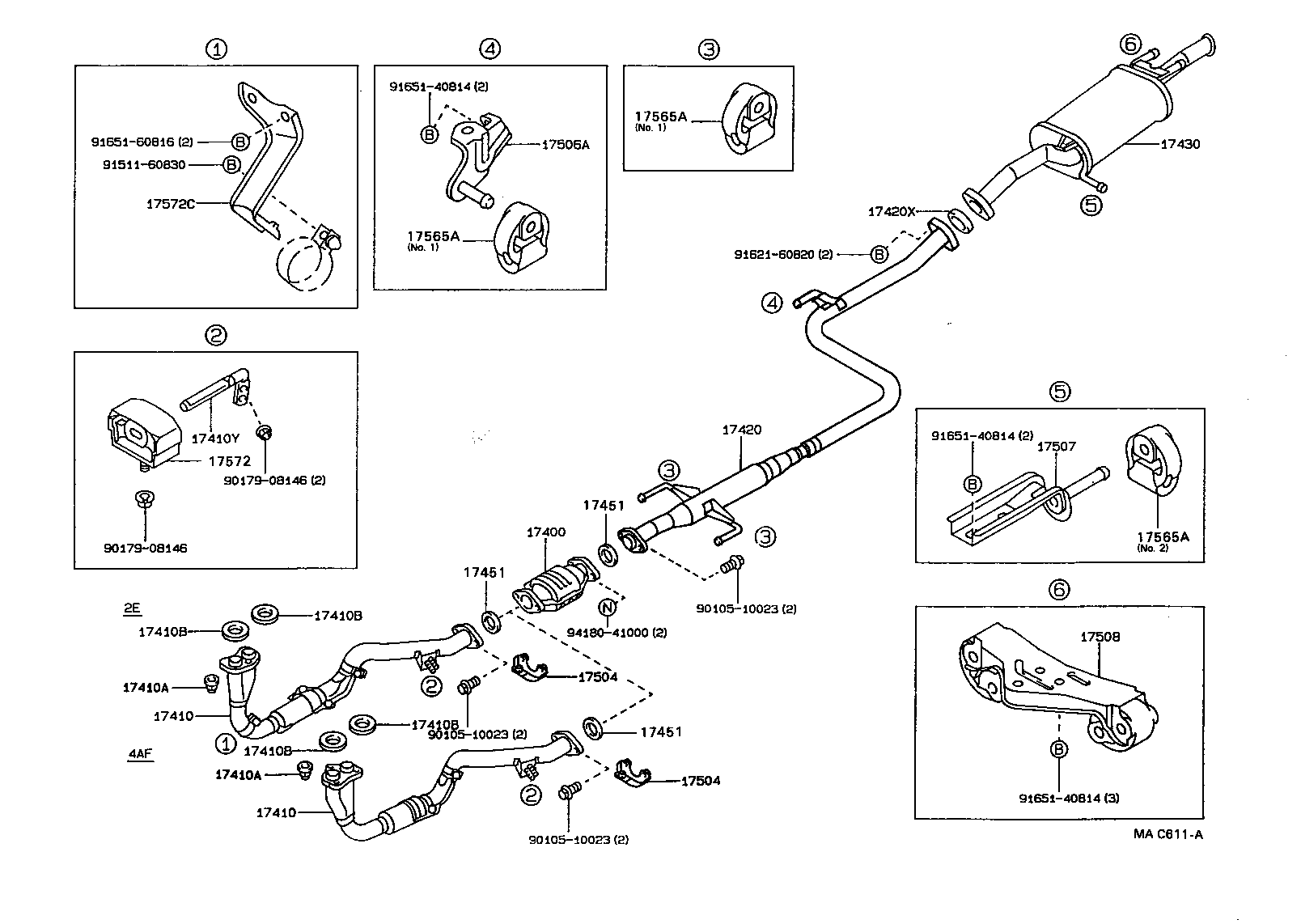

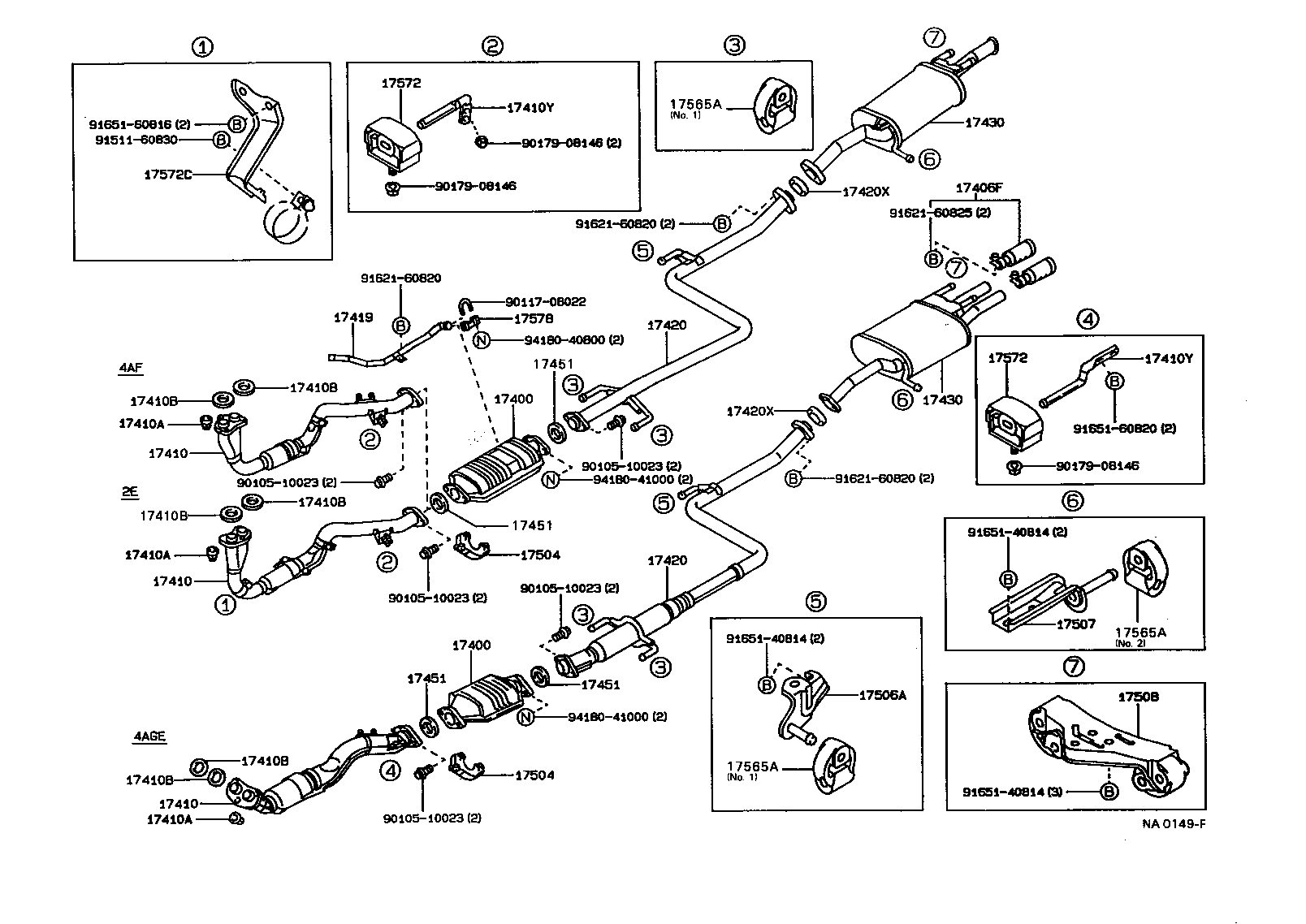

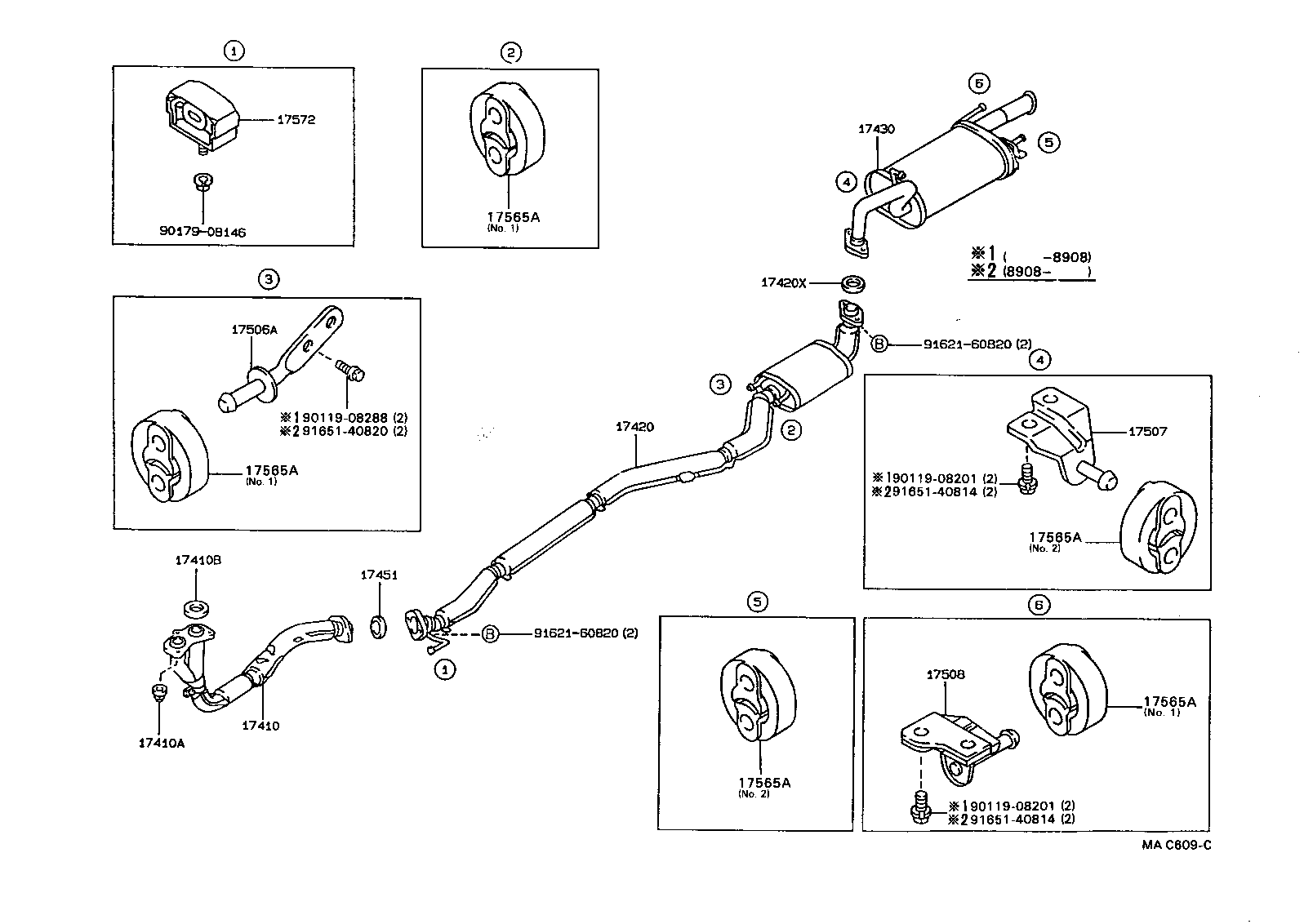

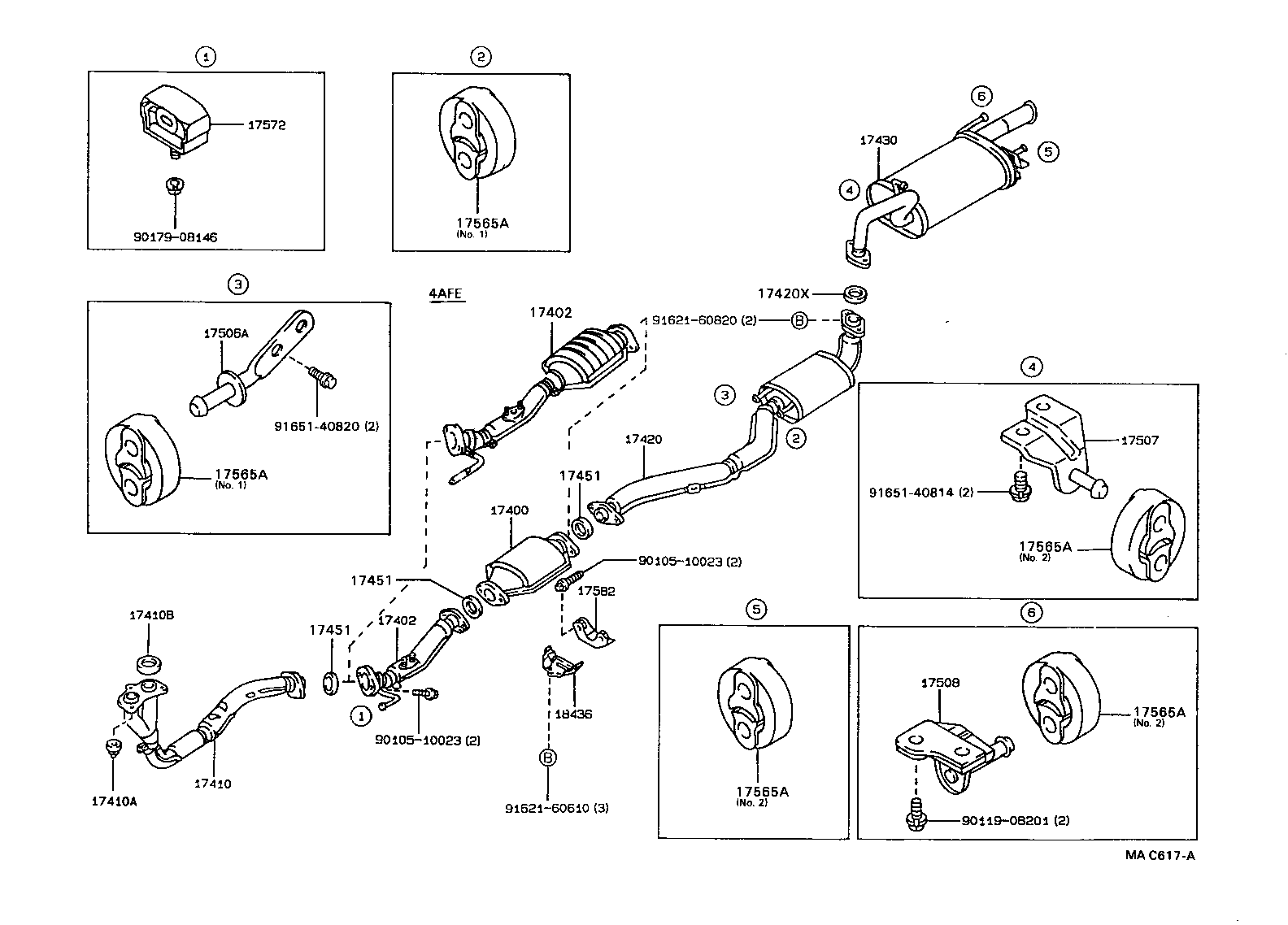

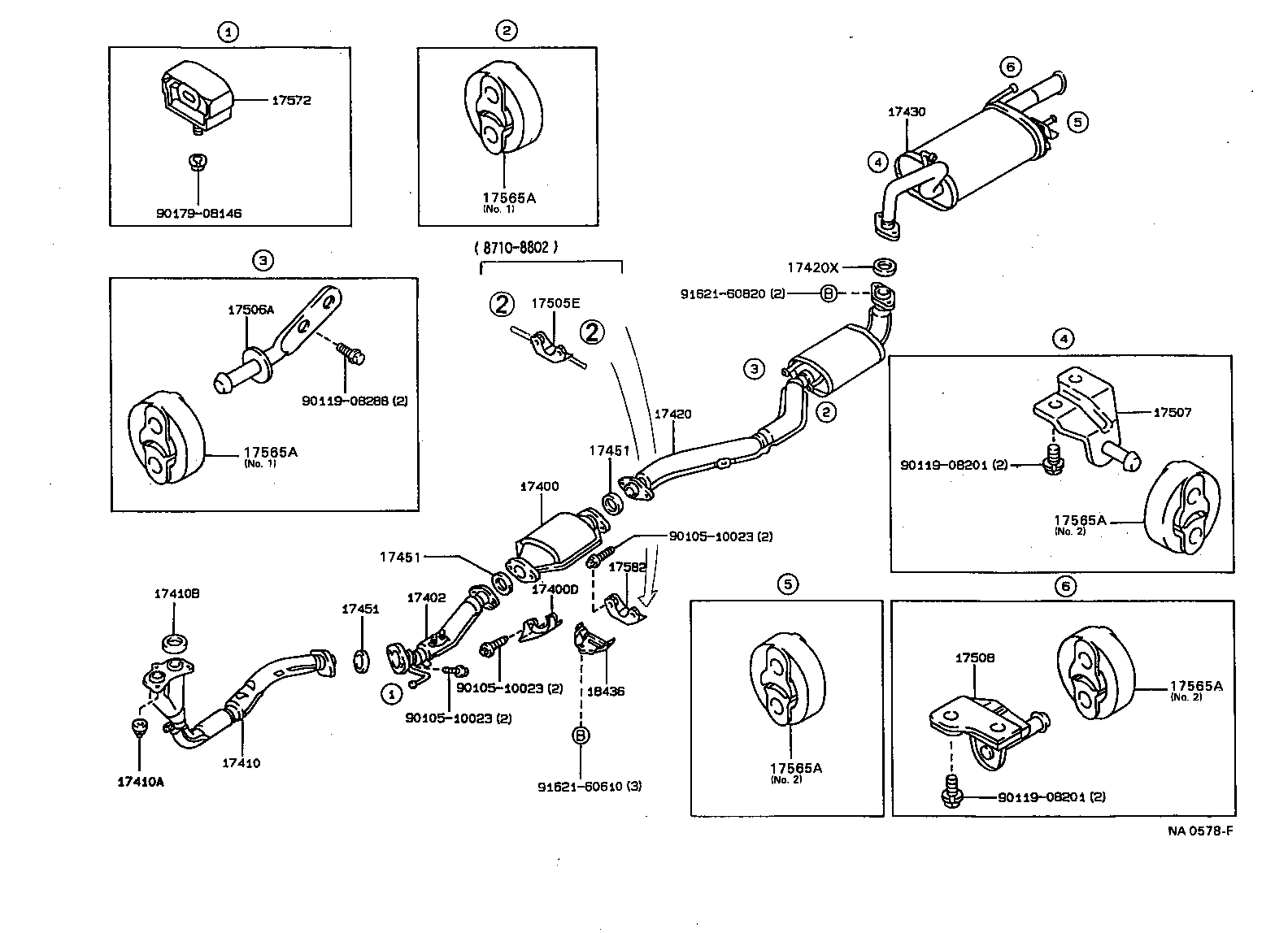

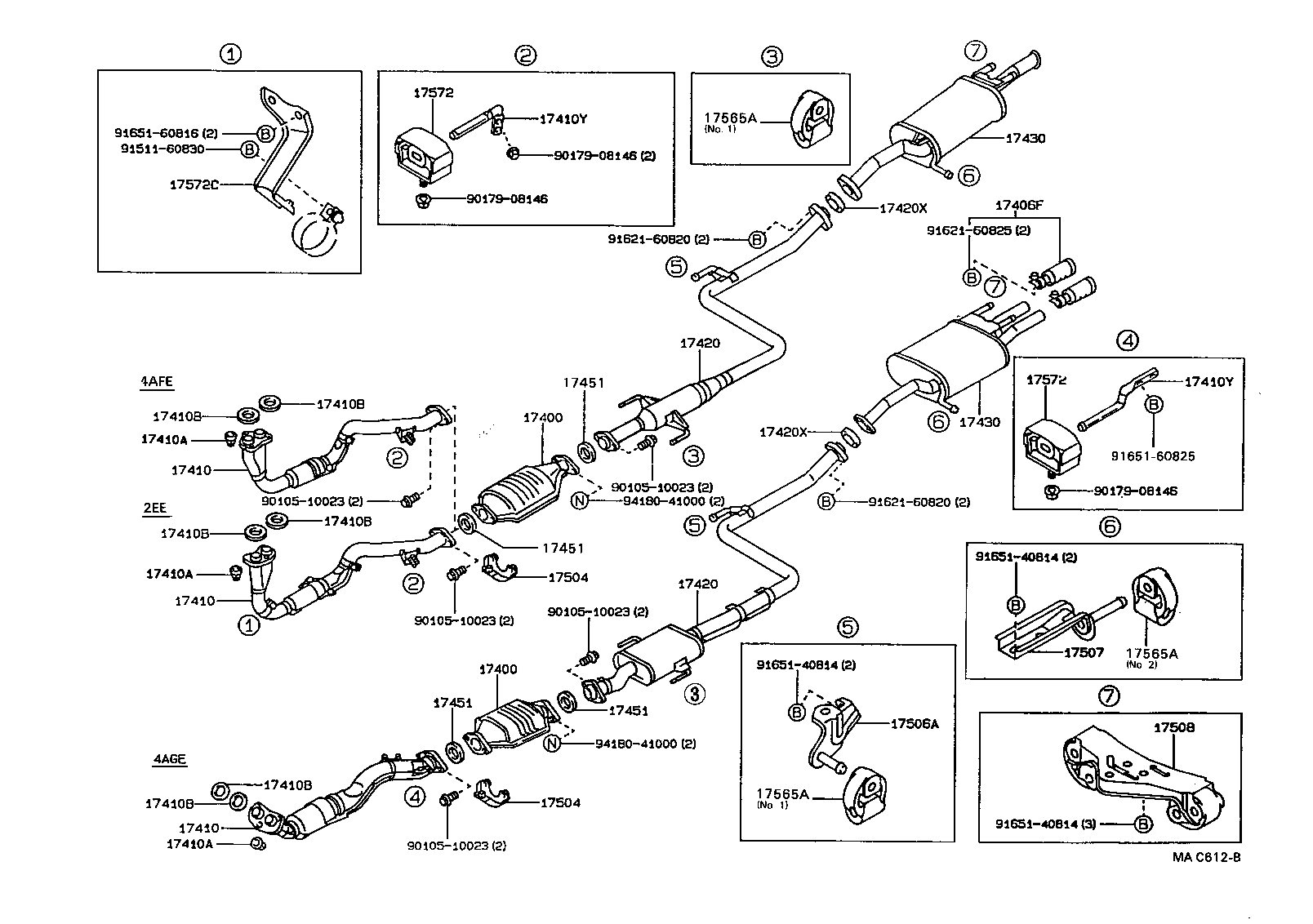

Figure MAC610B MAC610B 1987-05 → — Figure MAC611A MAC611A 1987-05 → 1989-11 Figure NA0149F NA0149F 1987-05 → 1989-08 Figure MAC612B MAC612B 1989-08 → — Figure MAC609C MAC609C 1987-10 → — Figure NA0578F NA0578F 1987-10 → 1989-08 Figure MAC617A MAC617A 1989-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17402 Pipe Sub-assy, Exhaust, Front NO.2
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17419 Pipe, Converter Air Inlet
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17504 Bracket Sub-assy, Catalytic Converter
17505E Support Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17578 Clamp, Pipe
17582 Bracket, Catalytic Converter Support, Upper
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
