Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 9 illustrations

Illustrations

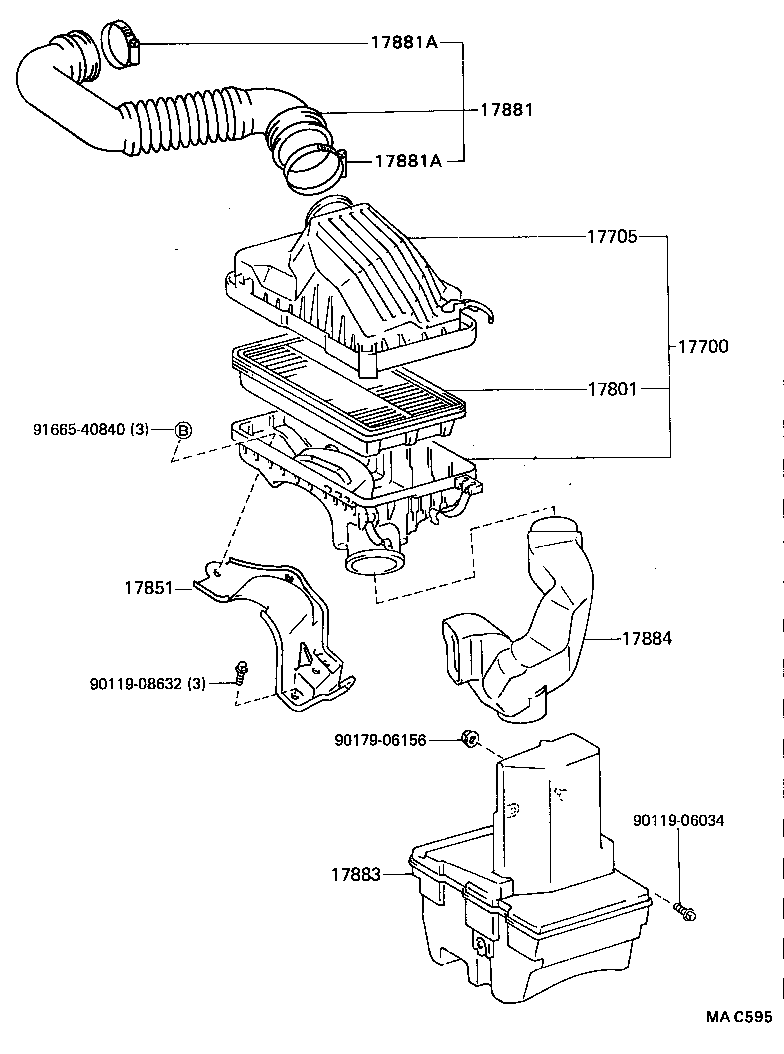

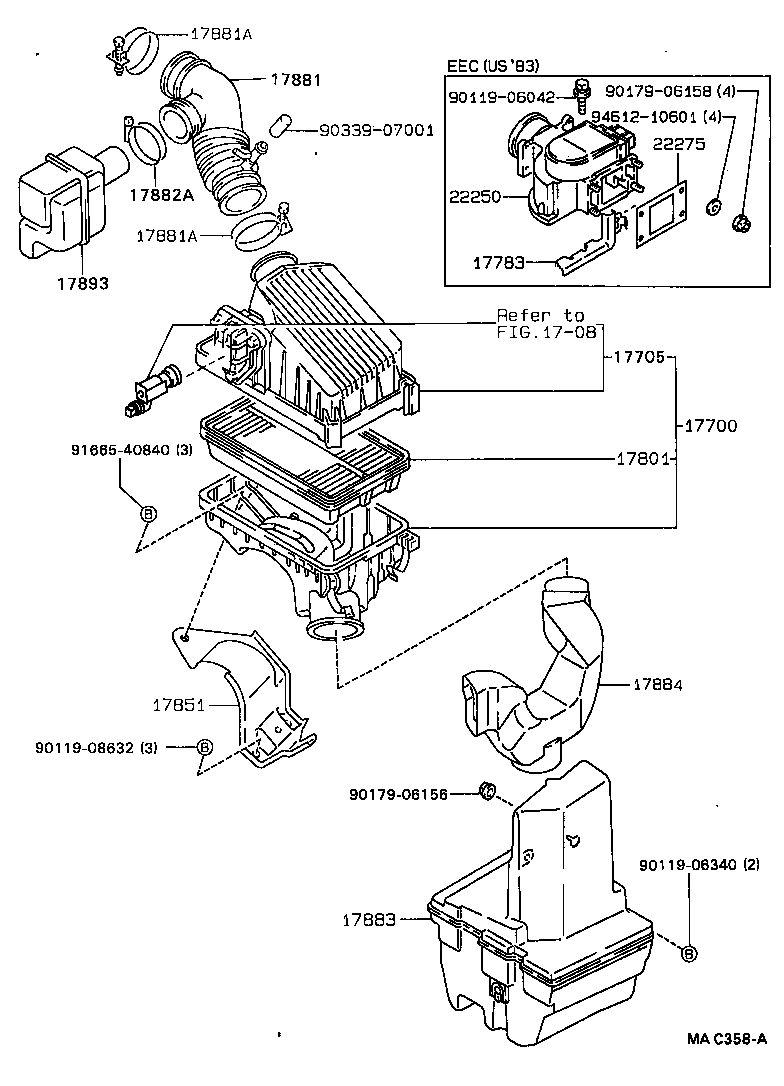

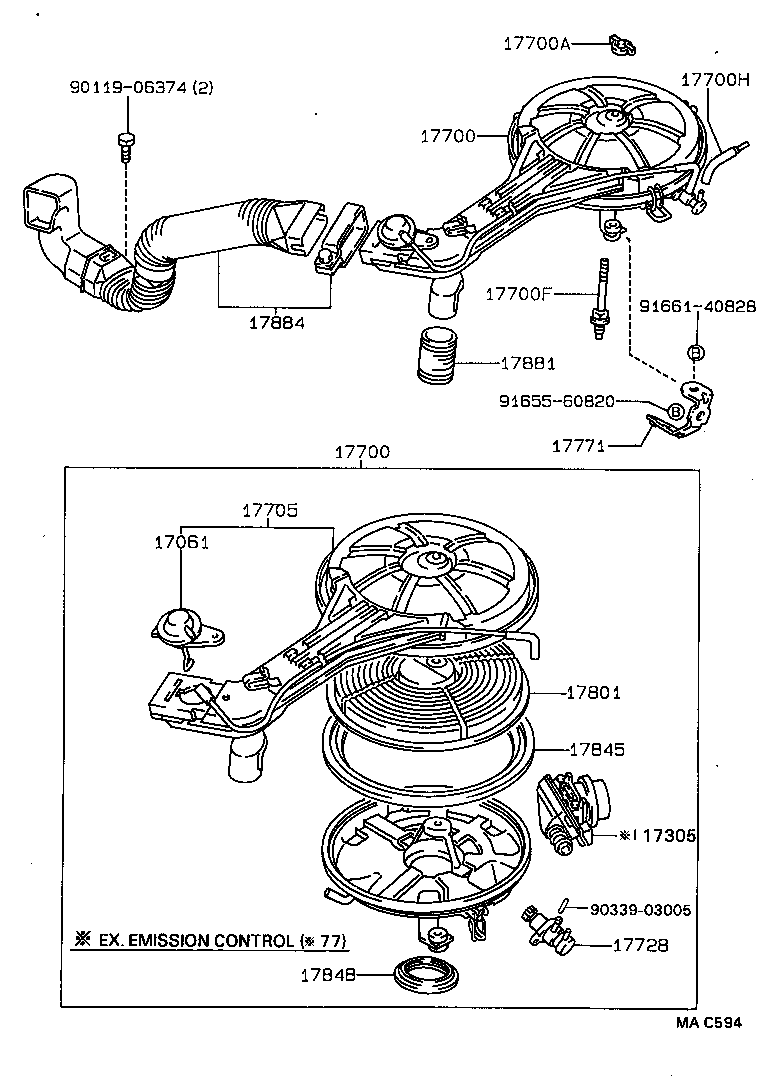

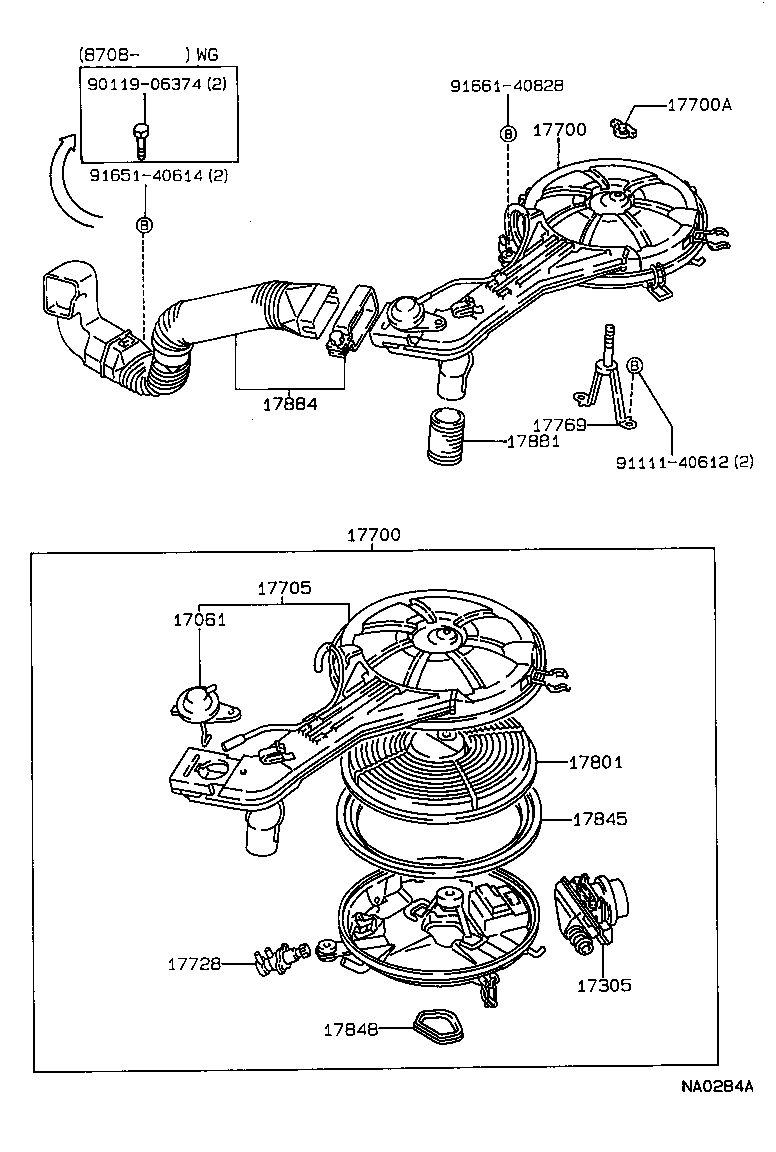

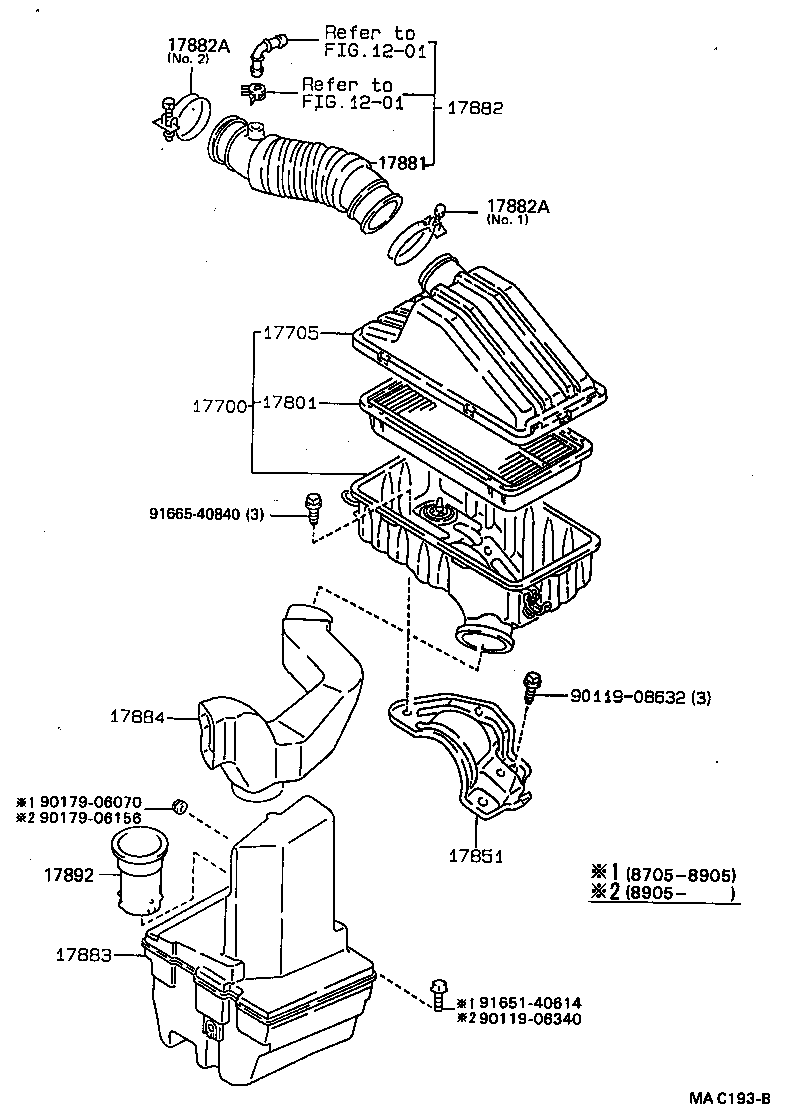

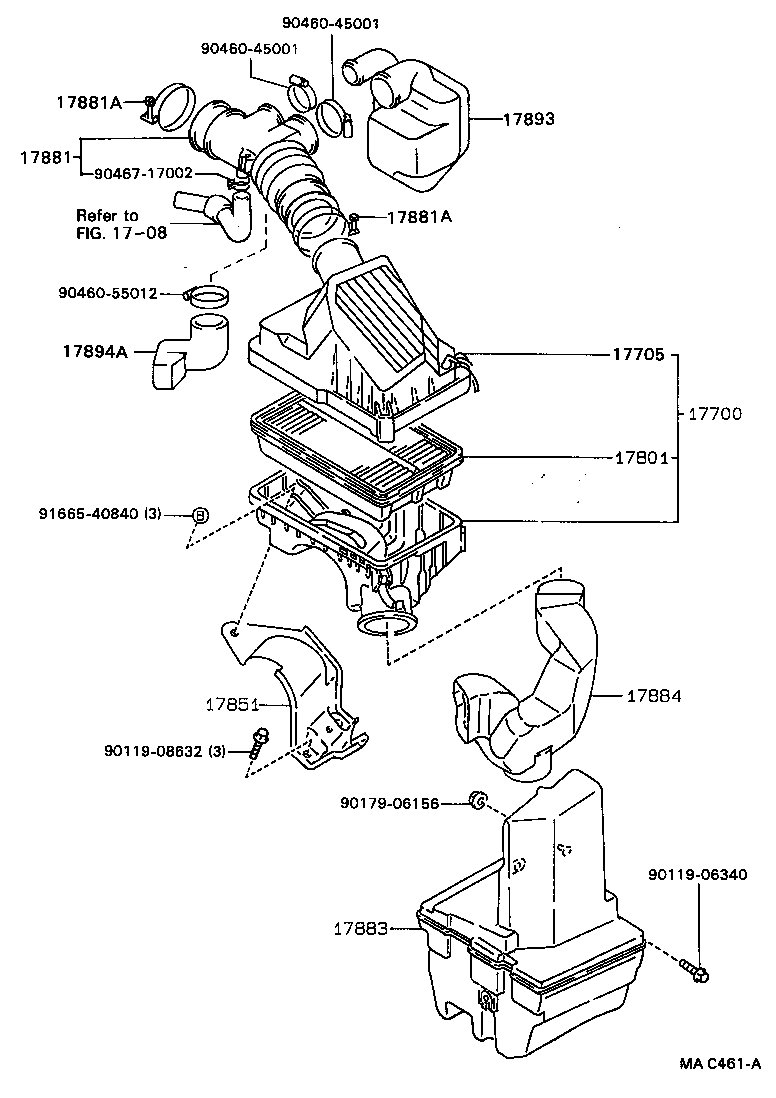

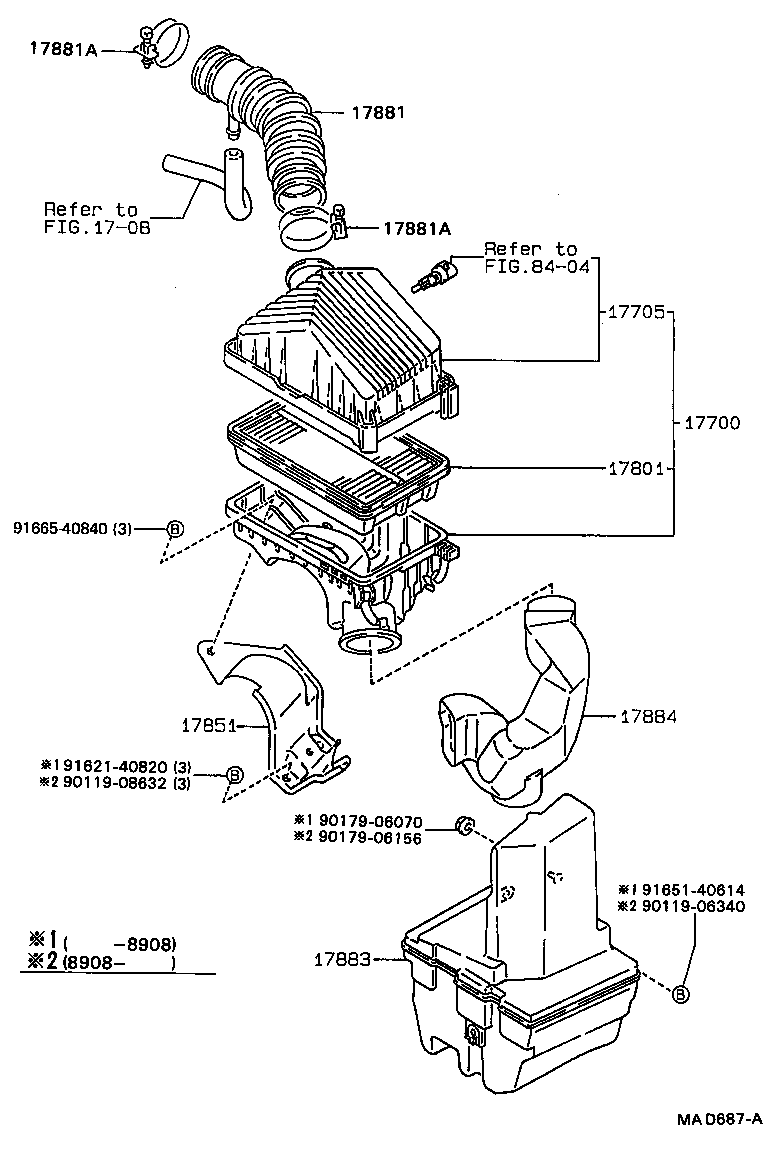

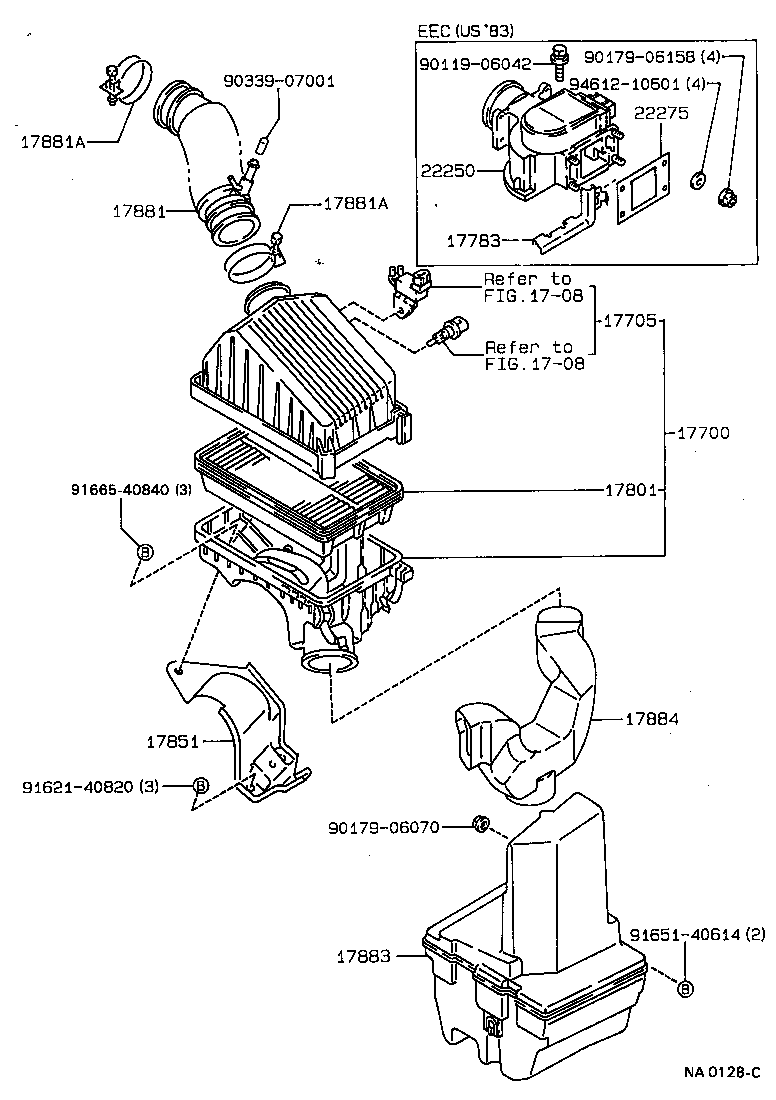

Figure MAG286 MAG286 1987-05 → — Figure MAD687A MAD687A 1987-10 → — Figure MAC461A MAC461A 1989-08 → — Figure NA0128C NA0128C 1987-05 → 1989-08 Figure MAC358A MAC358A 1989-08 → — Figure MAC193B MAC193B 1987-05 → — Figure NA0284A NA0284A 1987-05 → 1989-08 Figure MAC594 MAC594 1989-08 → — Figure MAC595 MAC595 1989-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
