Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

38 part groups · 20 illustrations

Illustrations

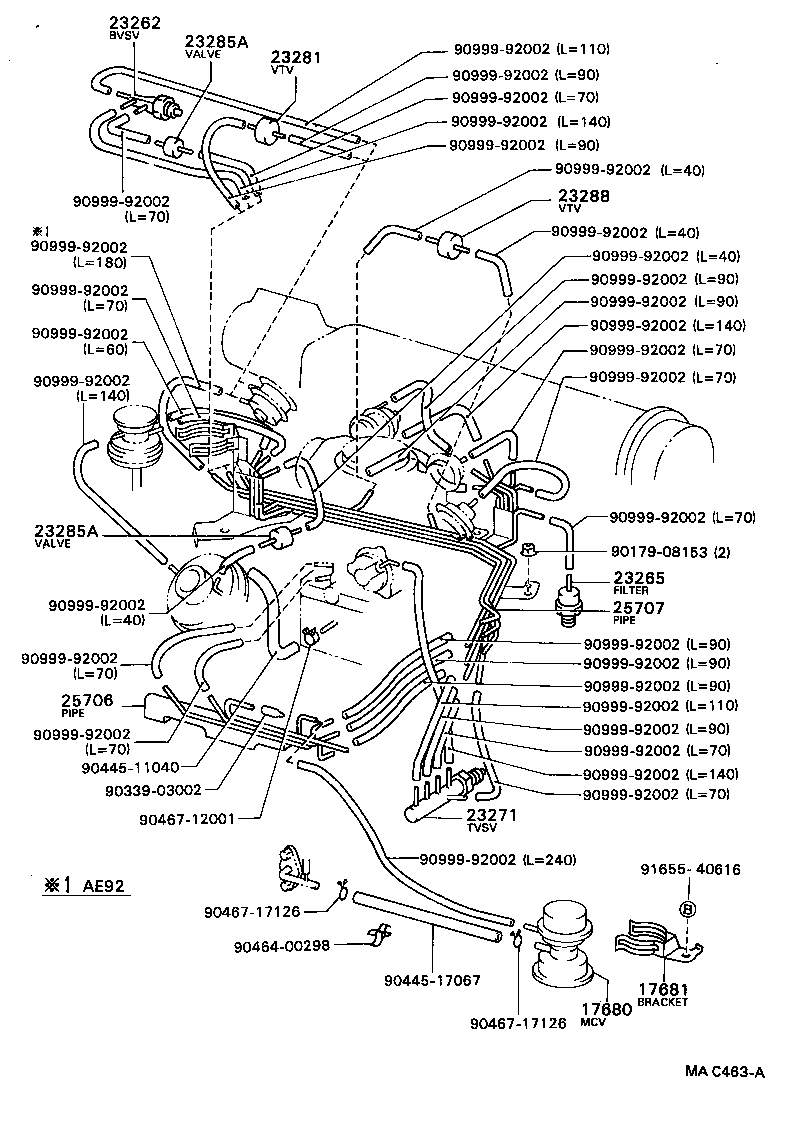

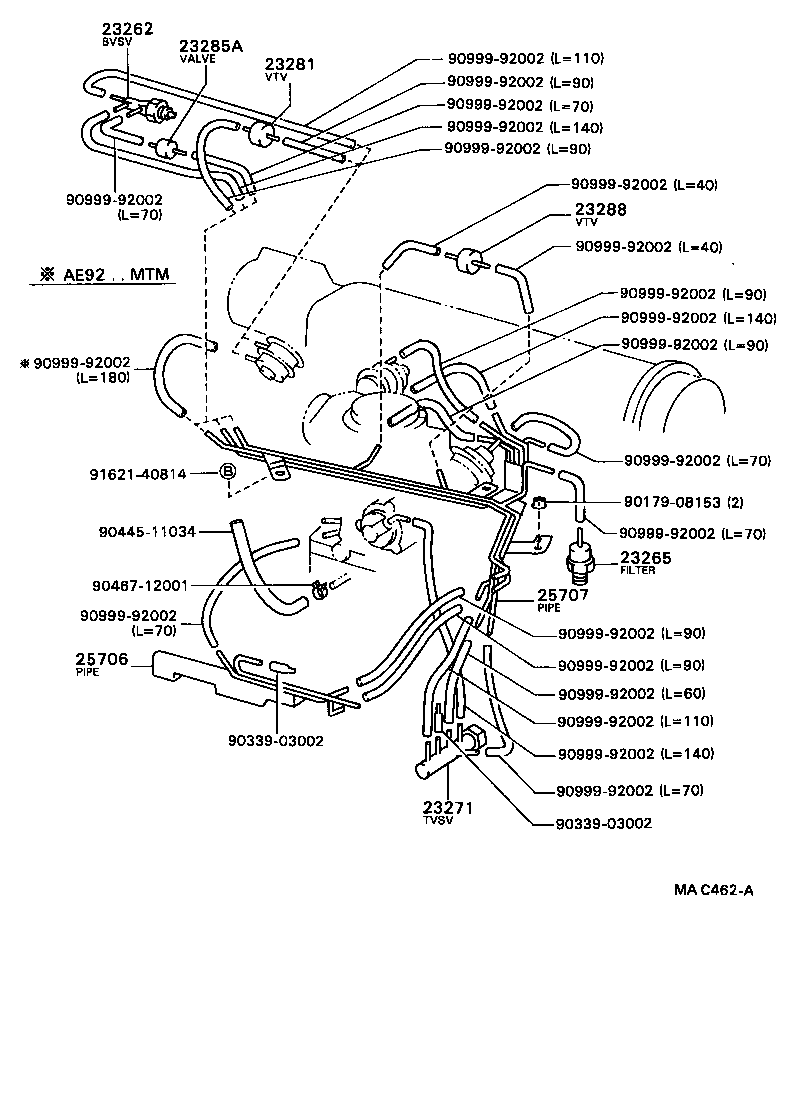

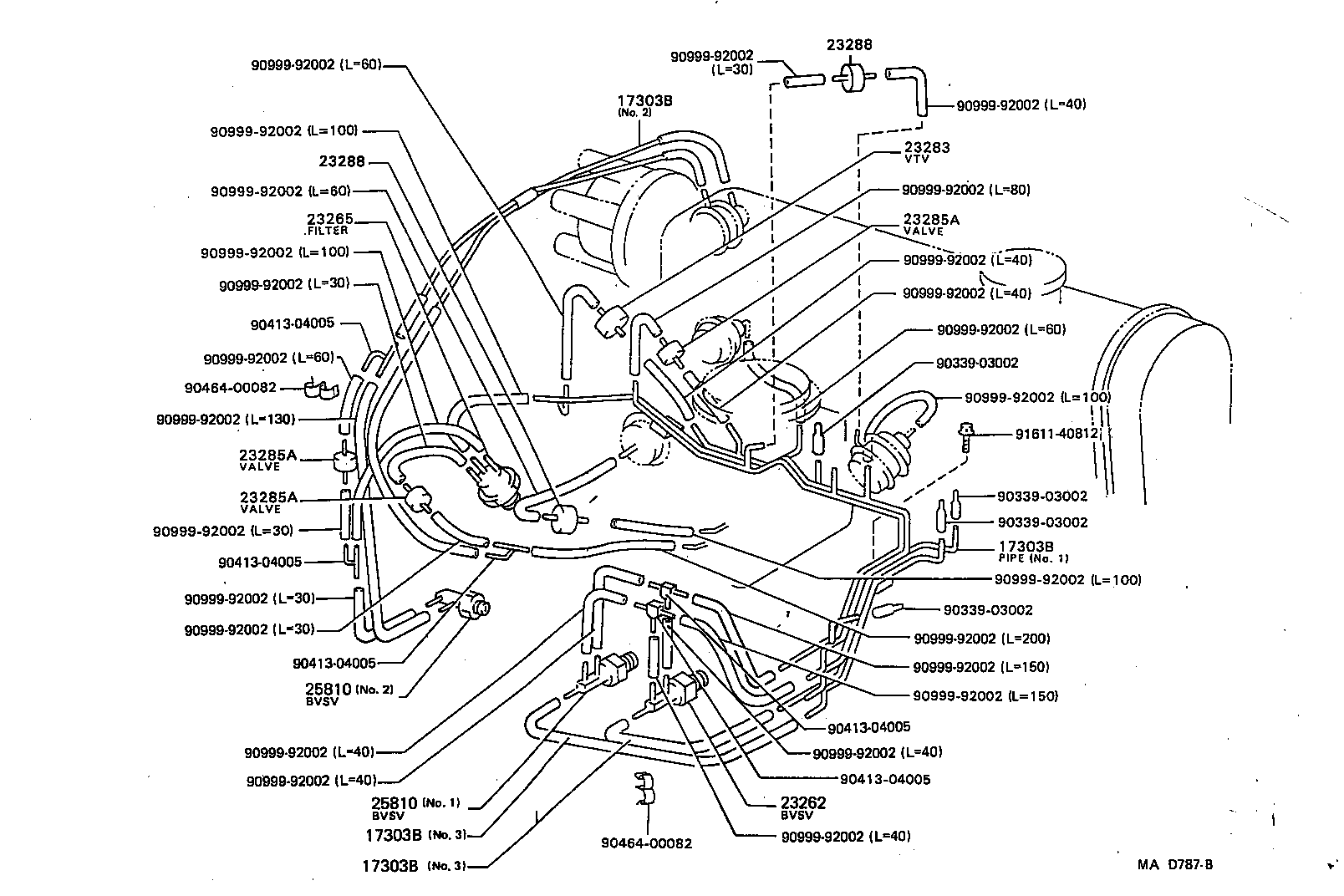

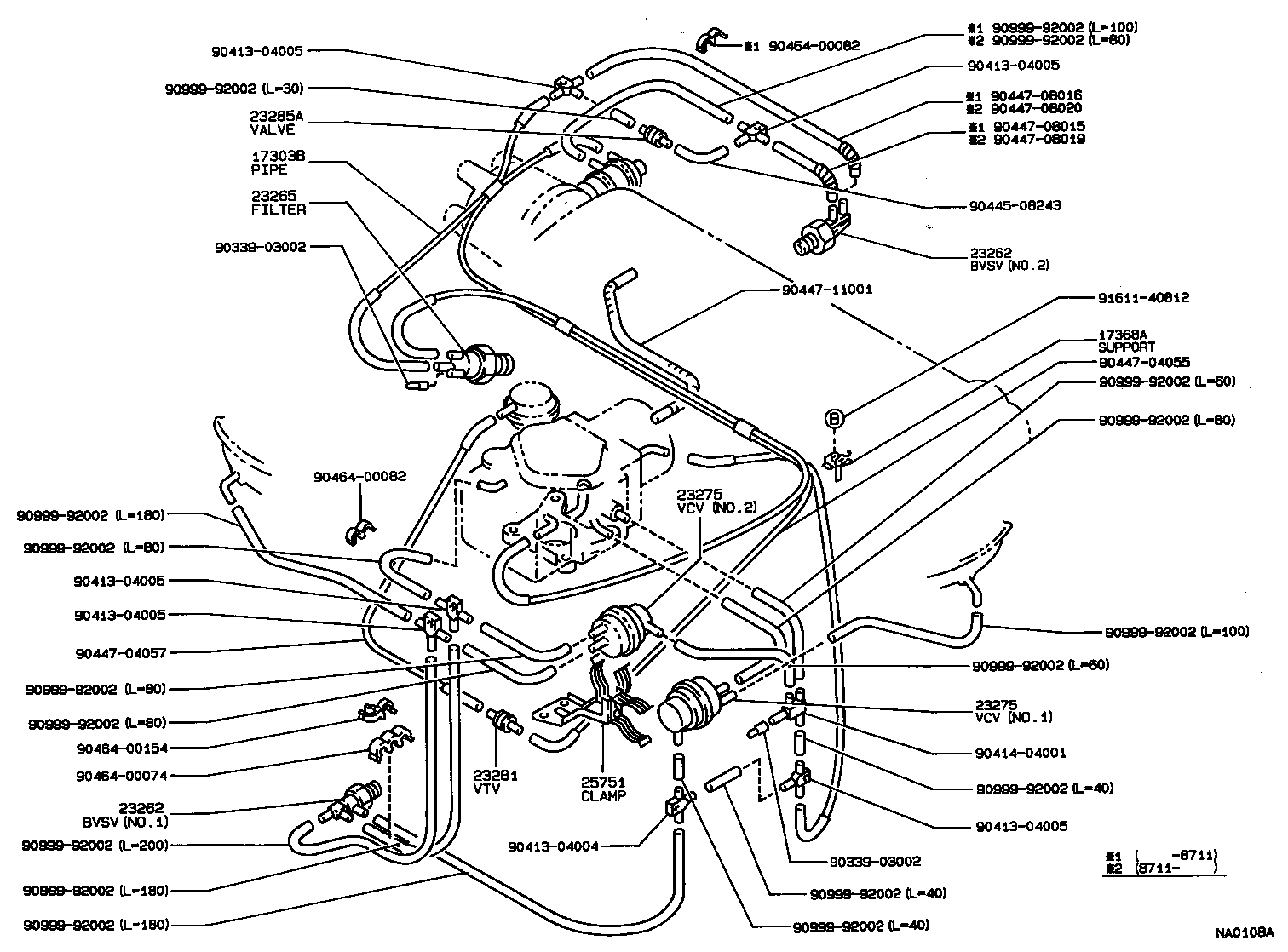

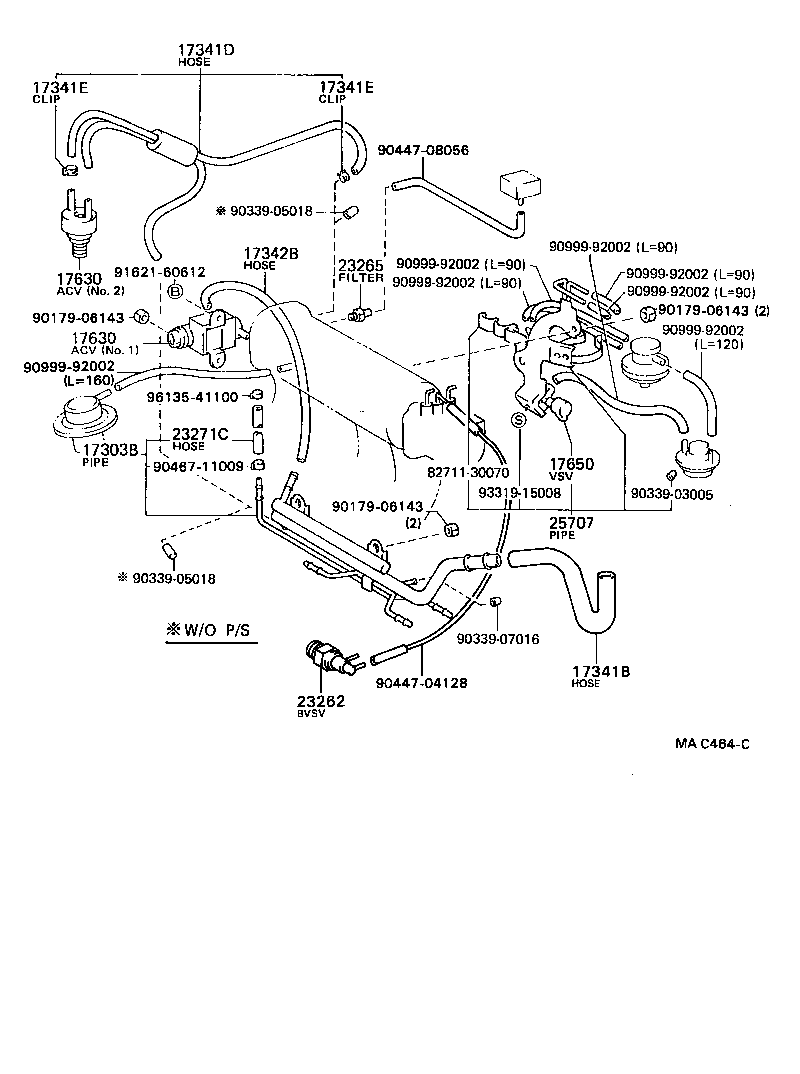

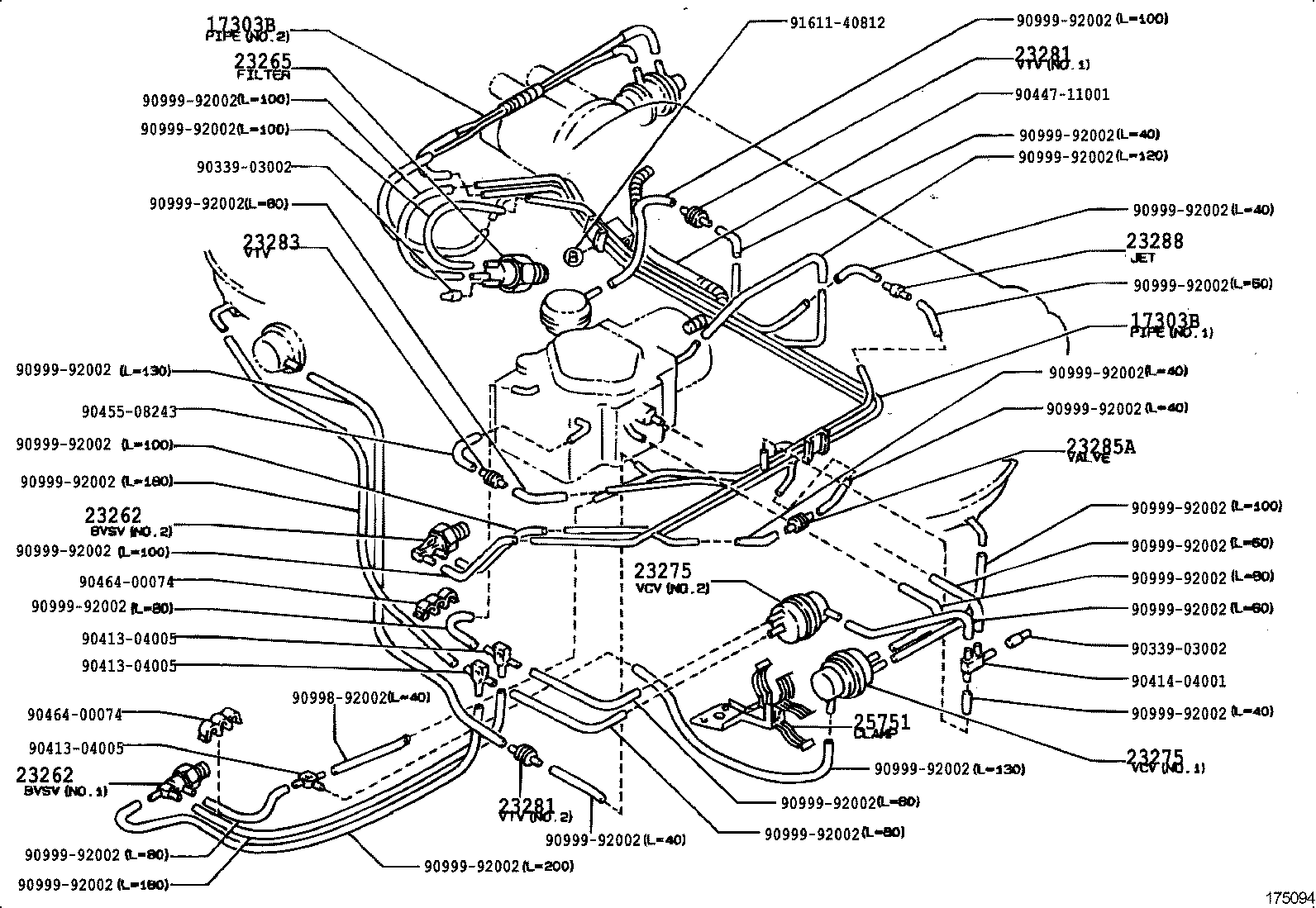

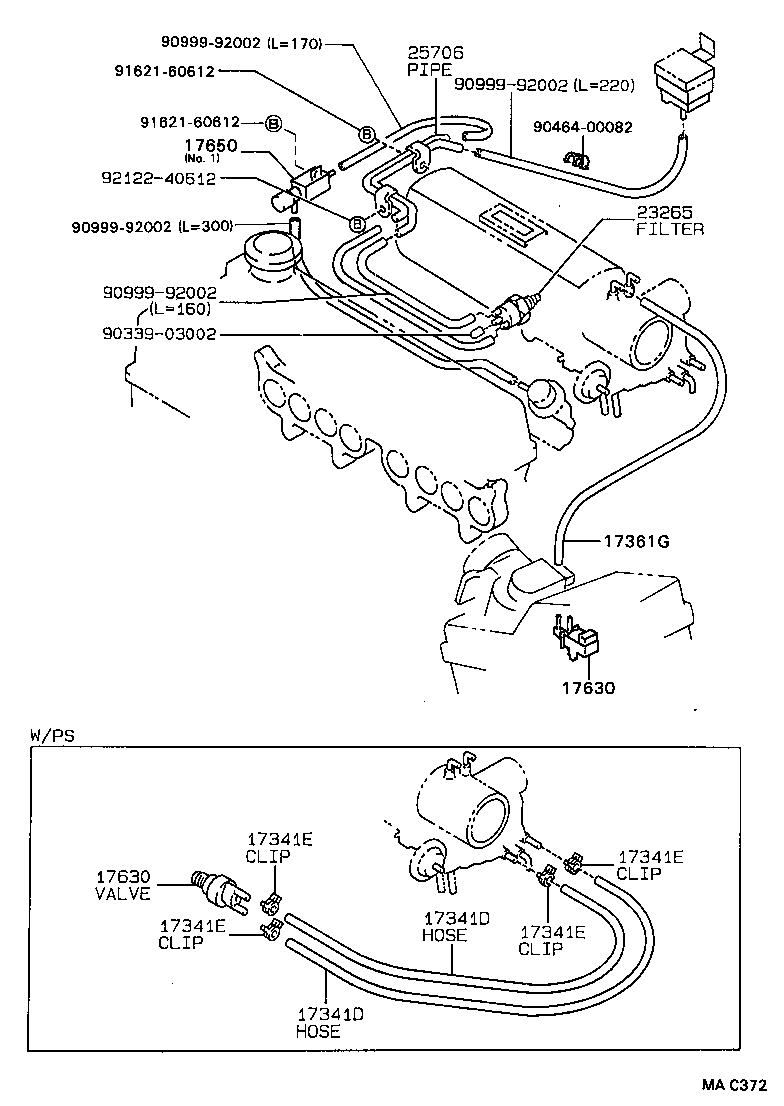

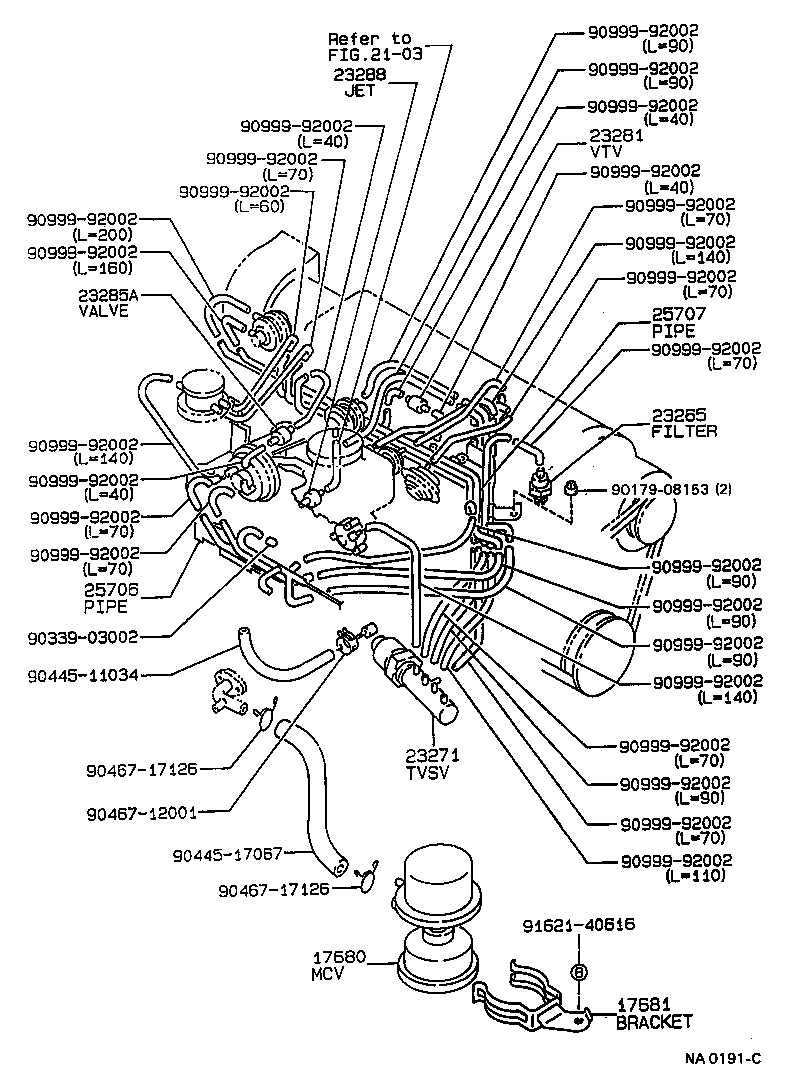

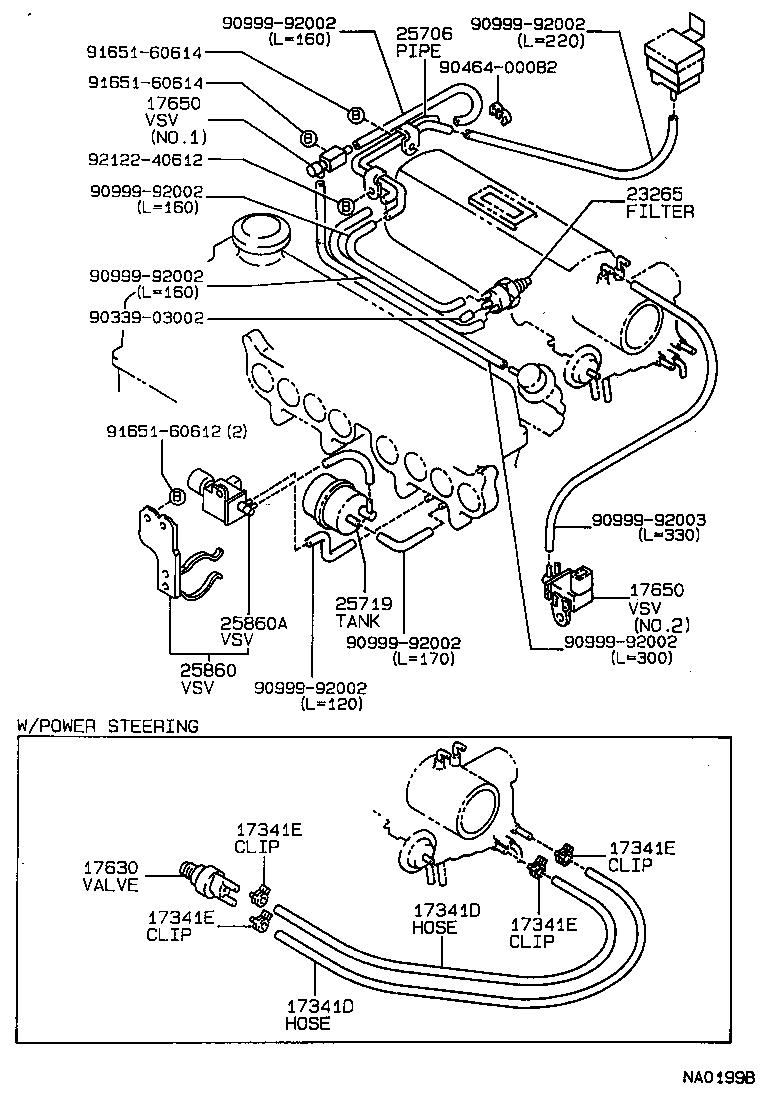

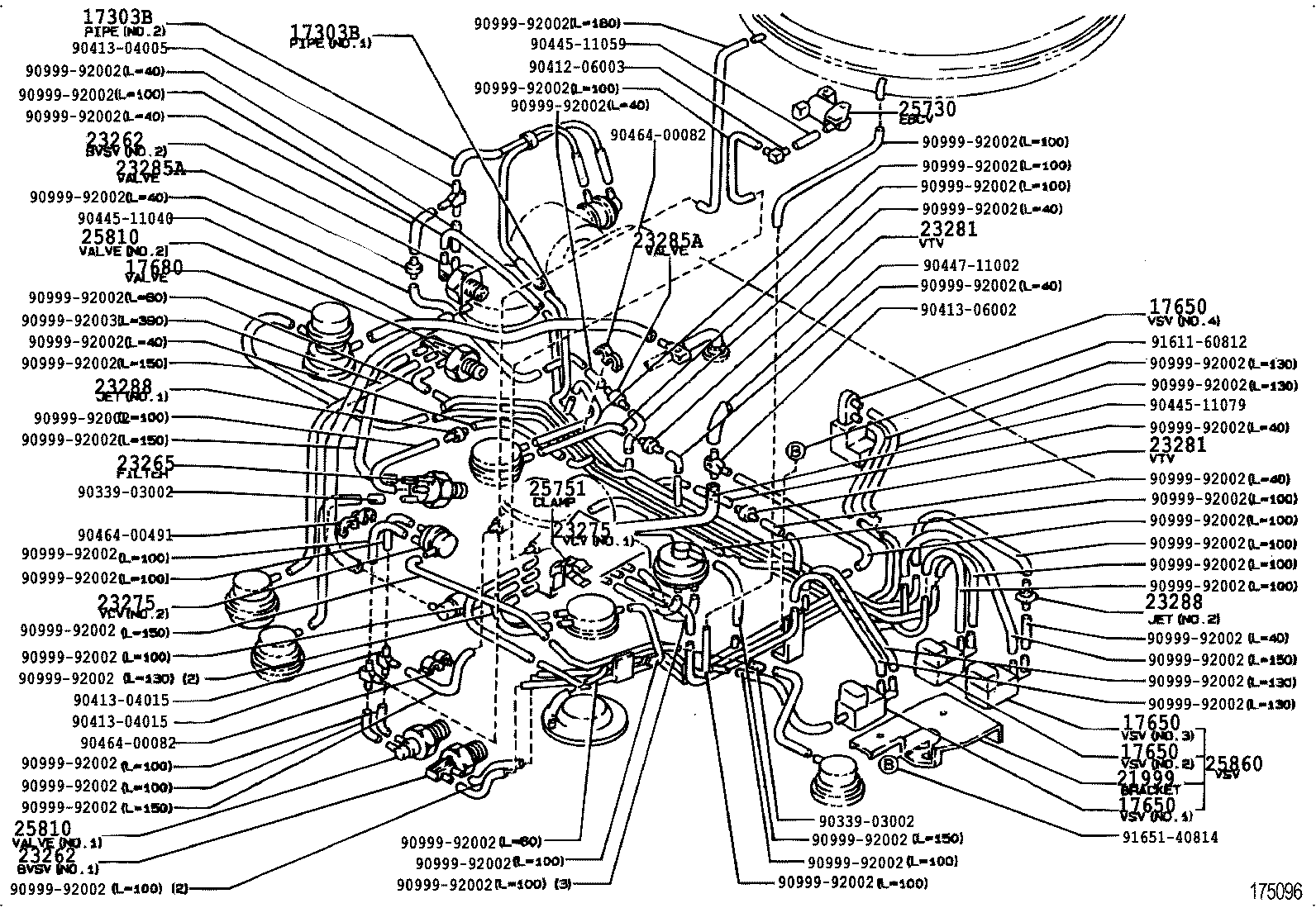

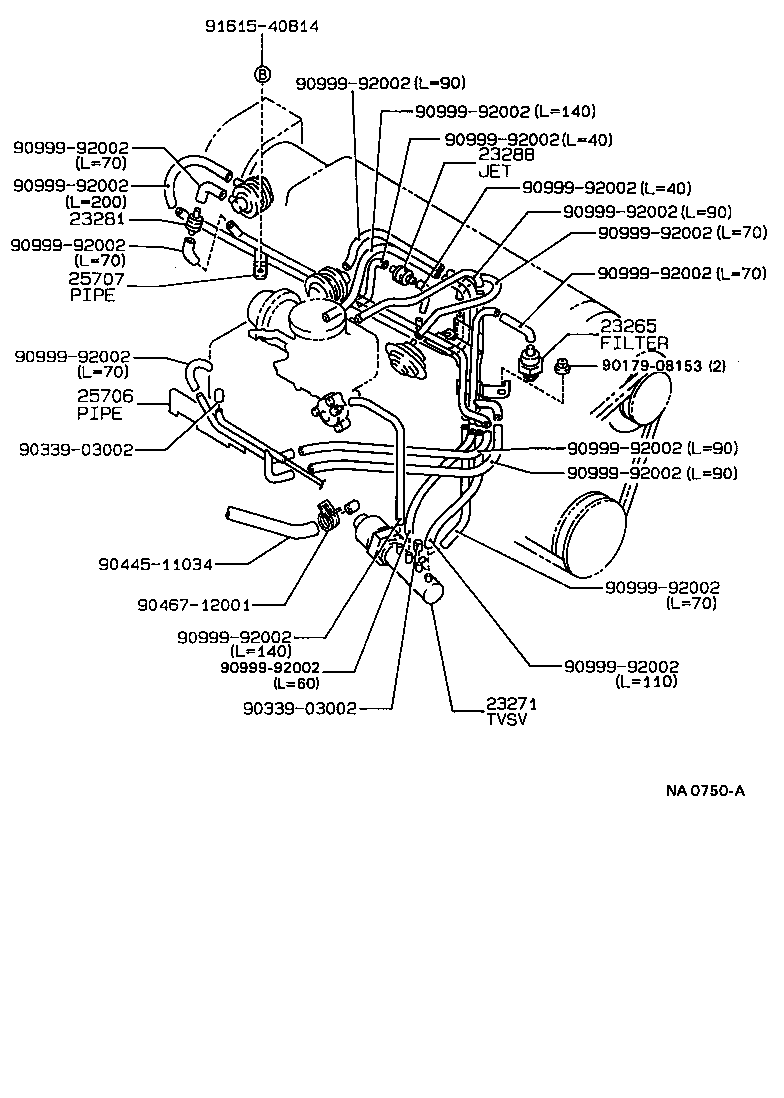

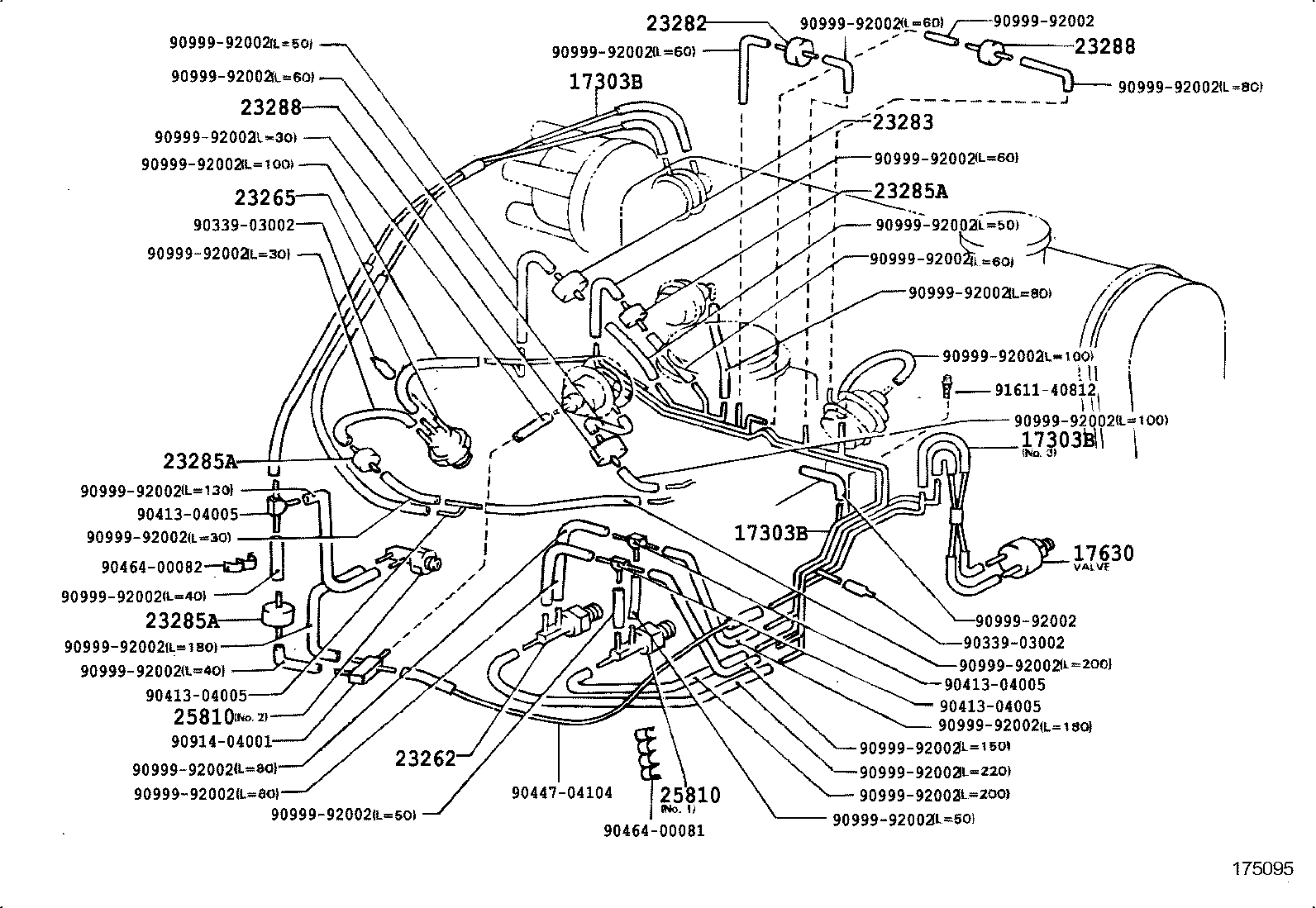

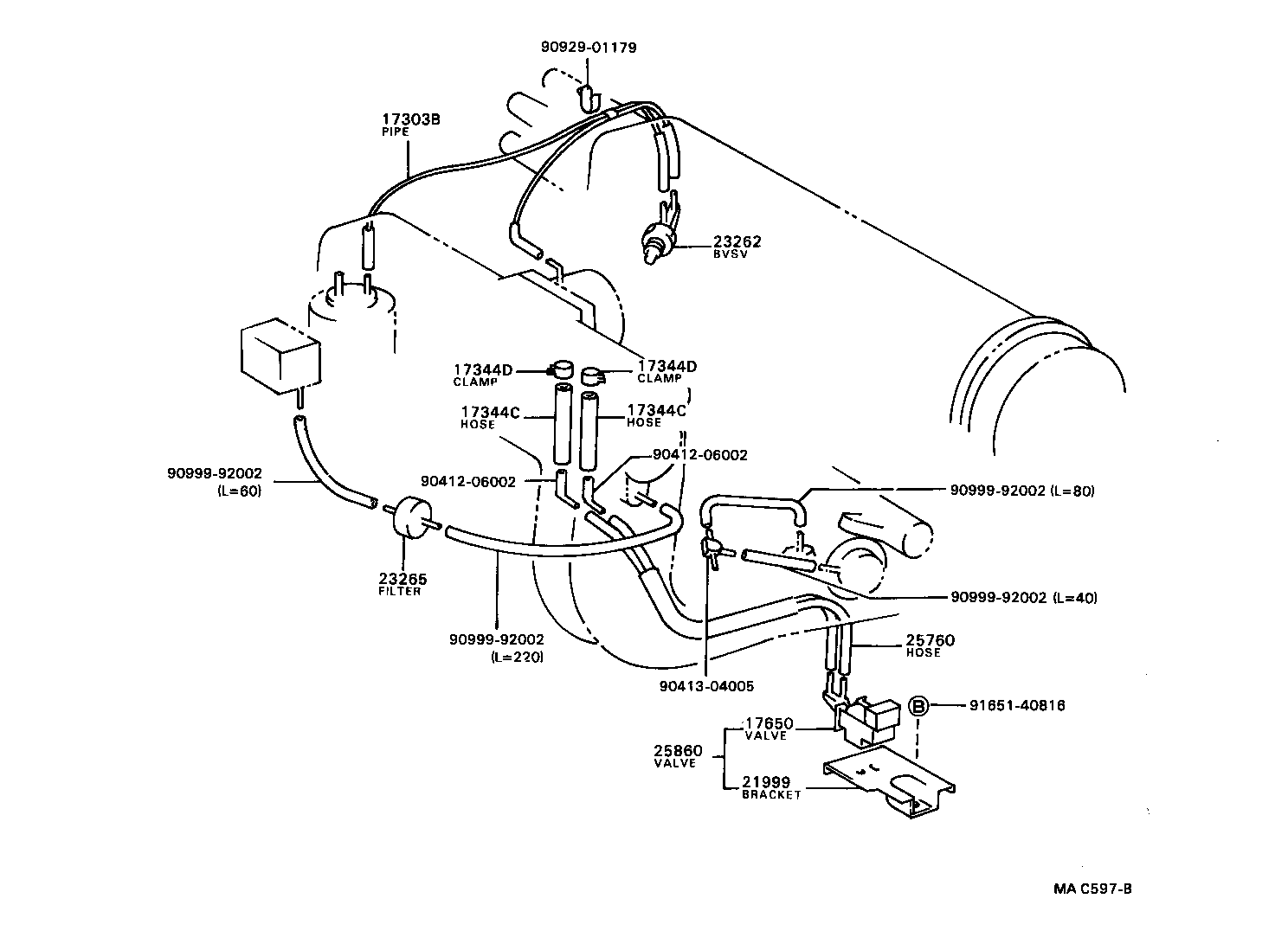

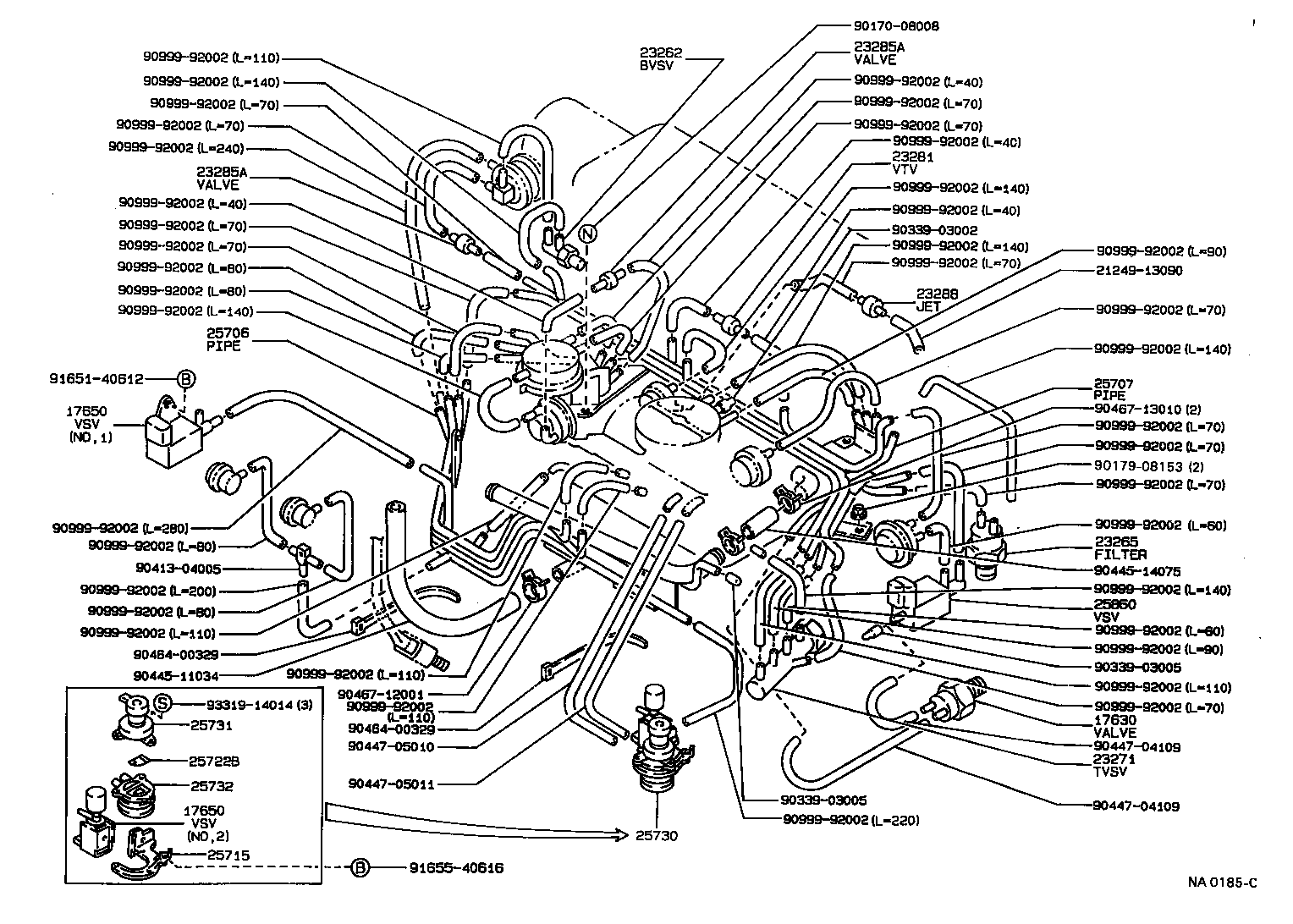

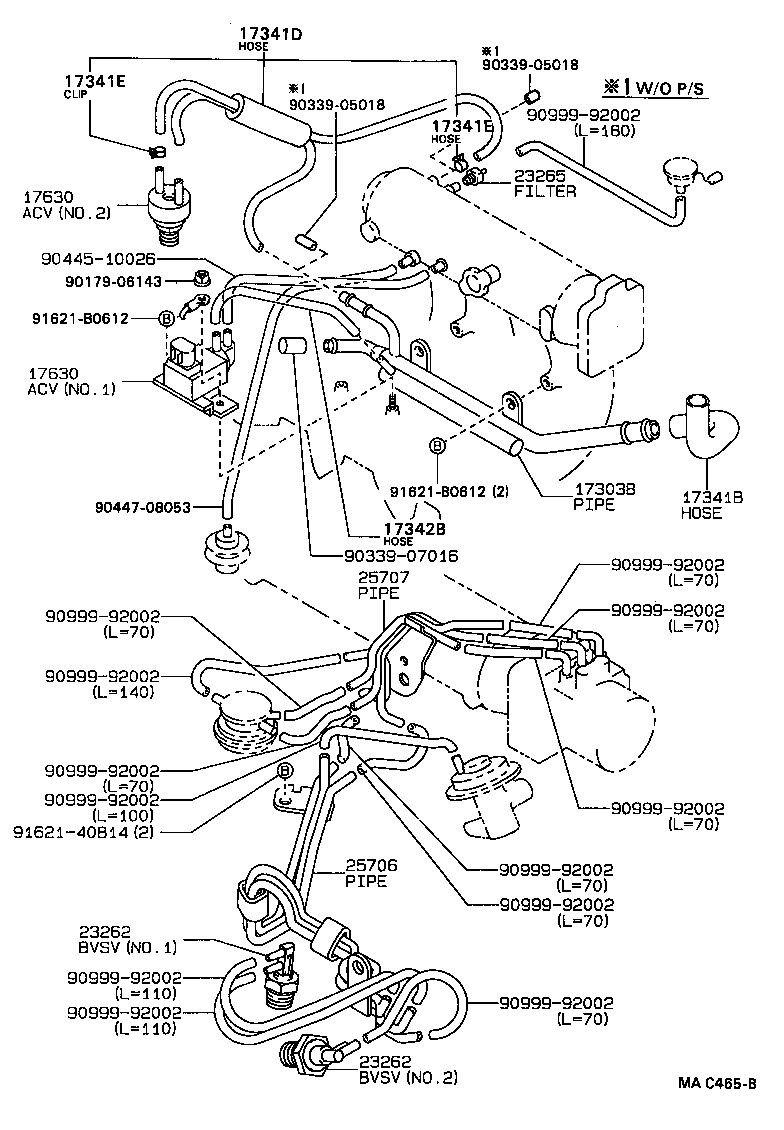

Figure MA9504B MA9504B 1987-05 → — Figure NA0750A NA0750A 1987-05 → 1989-08 Figure NA0191C NA0191C 1987-05 → 1989-08 Figure NA0185C NA0185C 1987-05 → 1989-08 Figure MAC462A MAC462A 1989-08 → — Figure MAC463A MAC463A 1989-08 → 1989-11 Figure MAC465B MAC465B 1987-10 → — Figure MAC464C MAC464C 1989-08 → — Figure NA0199B NA0199B 1987-05 → 1989-08 Figure NA0200A NA0200A 1987-05 → 1989-08 Figure MAC372 MAC372 1989-08 → — Figure MAC373A MAC373A 1989-08 → — Figure MA9504B MA9504B 1987-05 → — Figure MA9504B MA9504B 1987-05 → — Figure NA0108A NA0108A 1987-05 → 1989-08 Figure 175094 175094 1987-05 → 1989-08 Figure 175096 175096 1987-05 → 1989-08 Figure MAD787B MAD787B 1989-08 → — Figure 175095 175095 1989-08 → — Figure MAC597B MAC597B 1989-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17361G Tube, Air(FOR IDLE-UP)
17368A Support, Air Tube
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17681 Bracket, Mixture Control Valve
21999 Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23271C Hose, Fuel
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25722B Gasket, Electric Bleed Air Control Valve
25730 Valve Assy, Electric Bleed Air Control
25731 Valve, Electric Bleed Air Control
25732 Filter, Electric Bleed Air Control
25751 Clamp, Vacuum Control Valve, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
