Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 3 illustrations

Illustrations

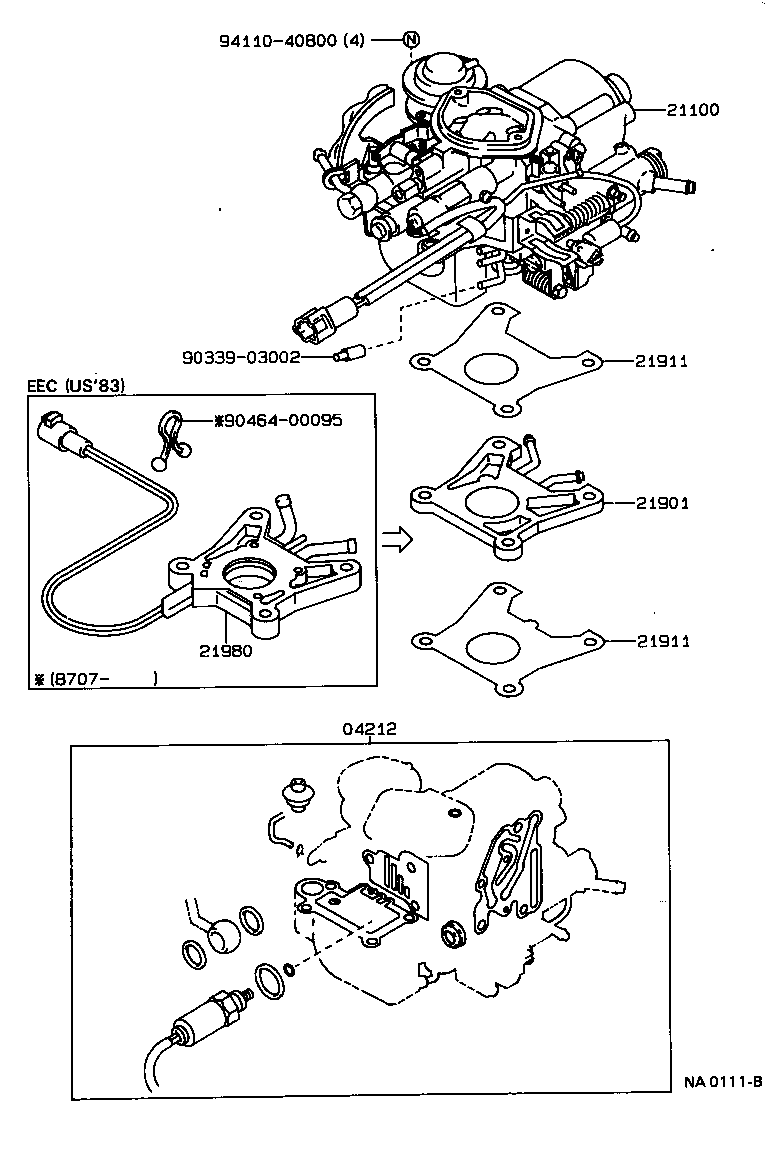

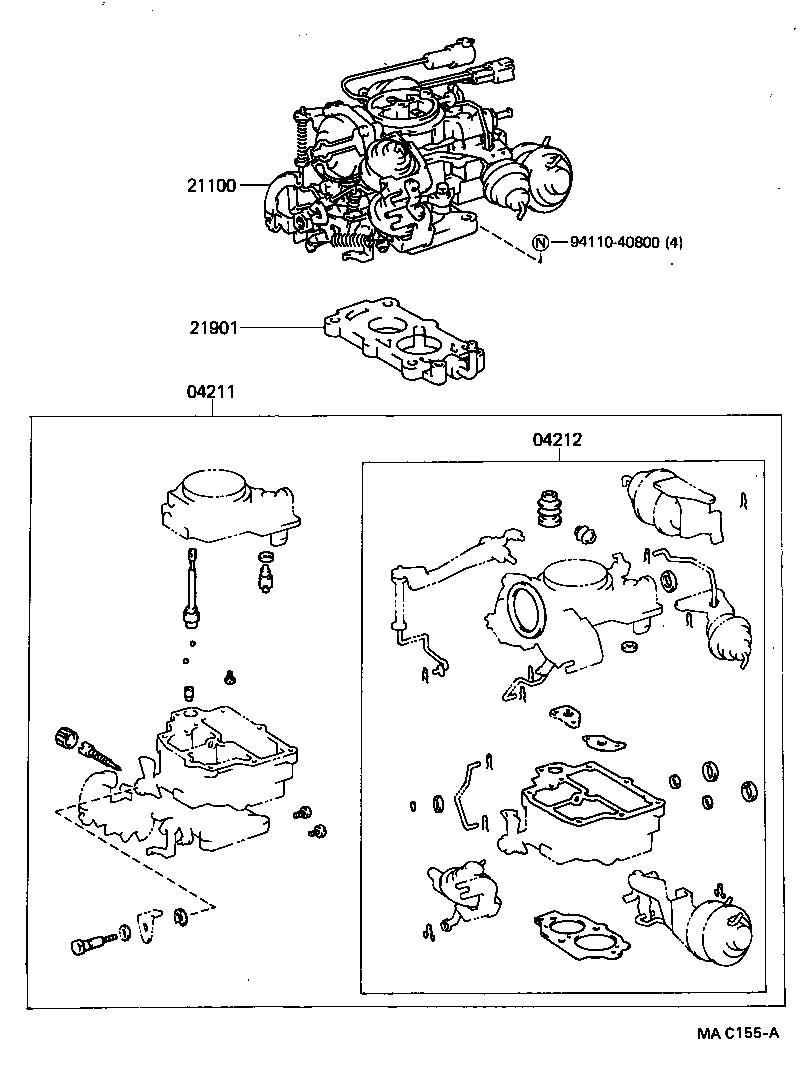

Figure MAC469A MAC469A 1987-05 → — Figure NA0111B NA0111B 1987-05 → 1989-08 Figure MAC155A MAC155A 1989-08 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21916 Gasket, Carburetor, NO.2
21980 Heater Assy, Cold Mixture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
