Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 3 illustrations

Illustrations

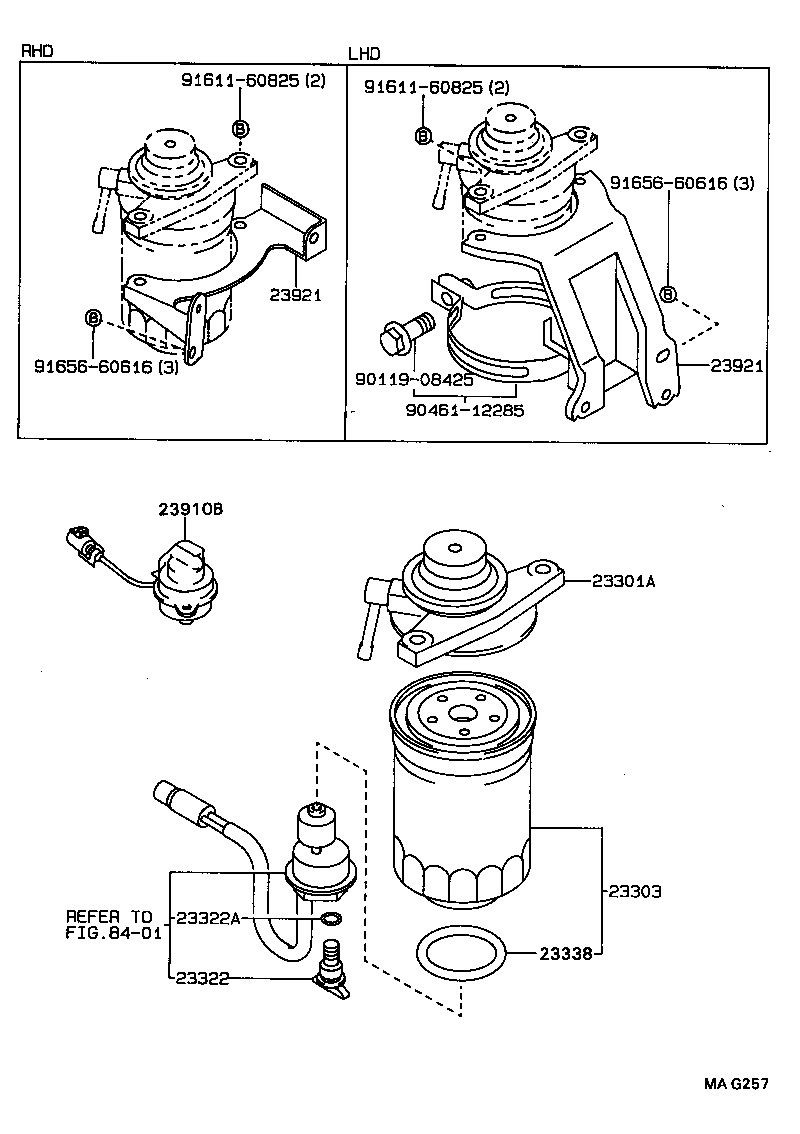

Figure NA0168 NA0168 1987-05 → — Figure MAG257 MAG257 1987-05 → — Figure NA0168 NA0168 1987-05 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
