Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 11 illustrations

Illustrations

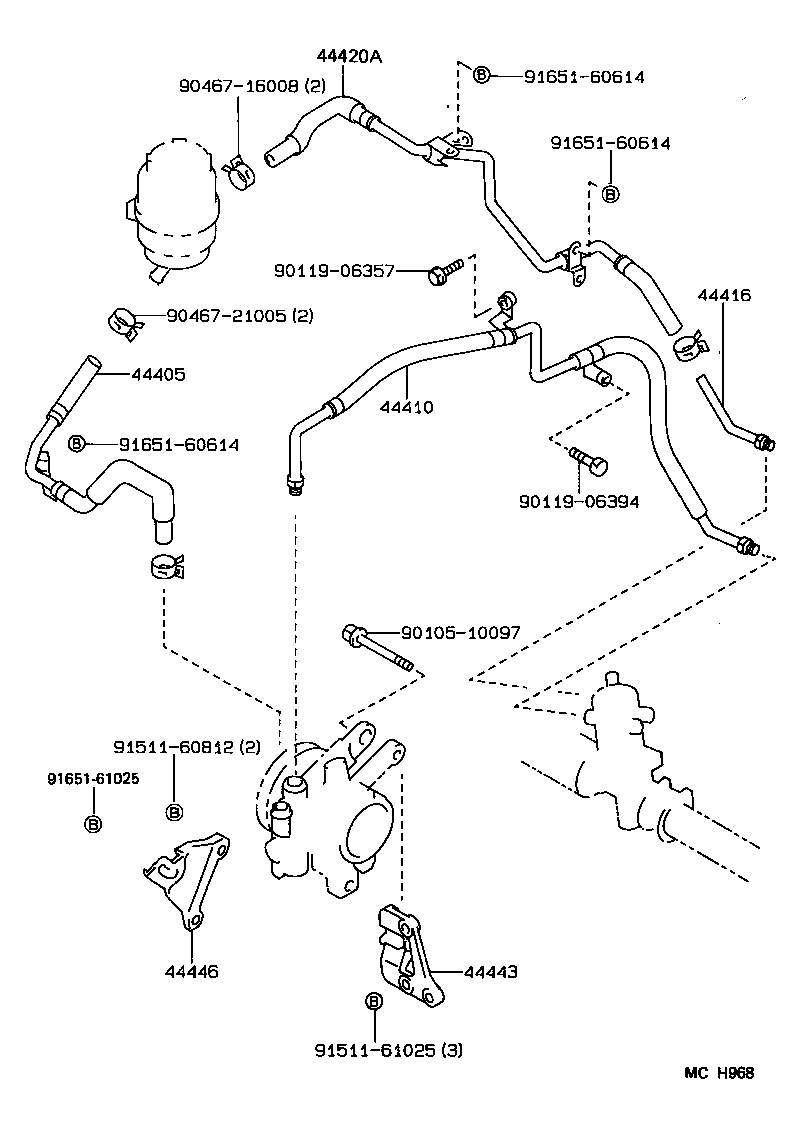

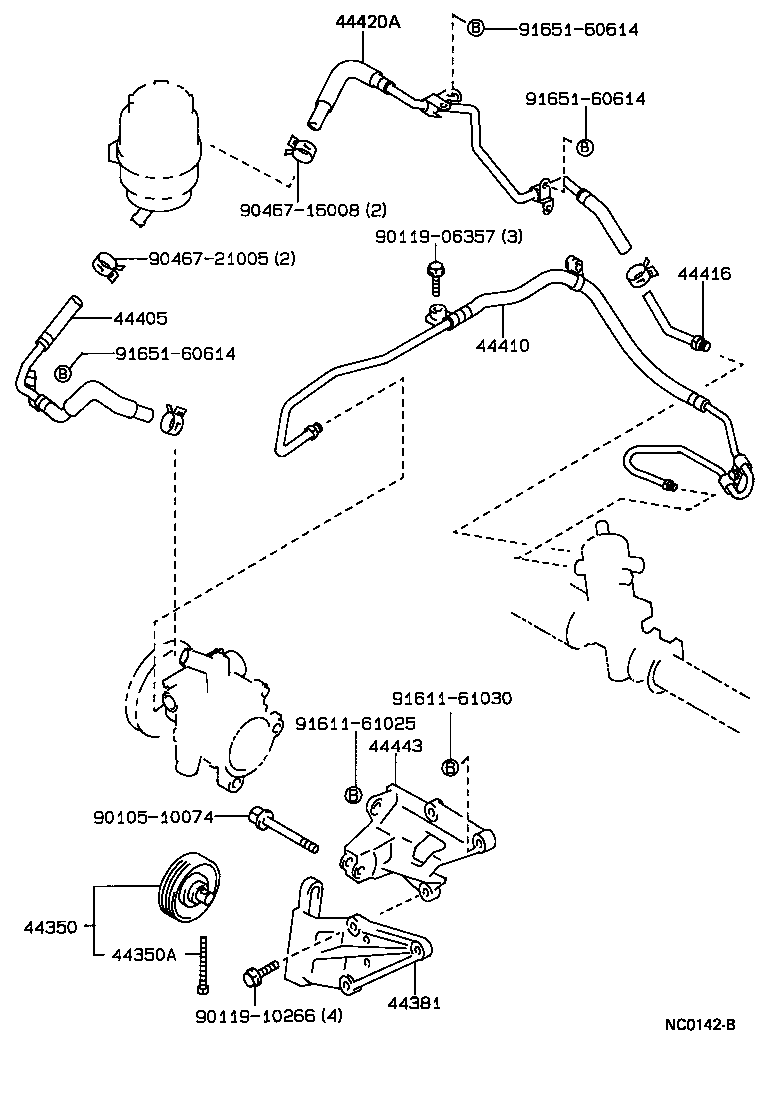

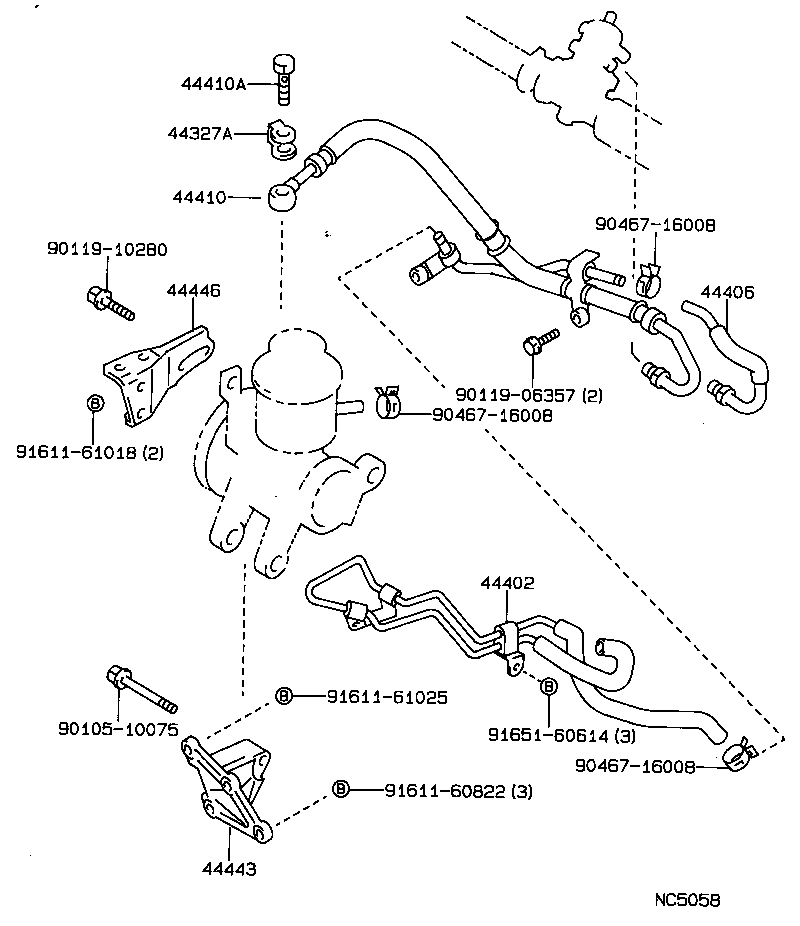

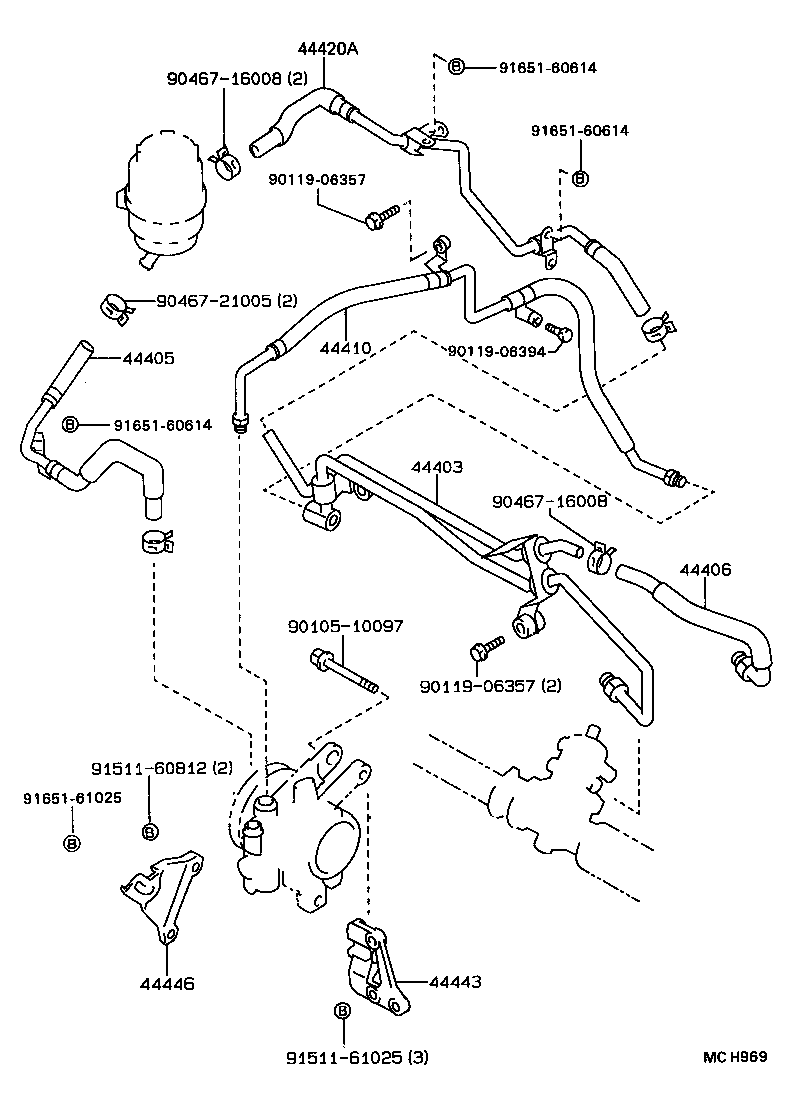

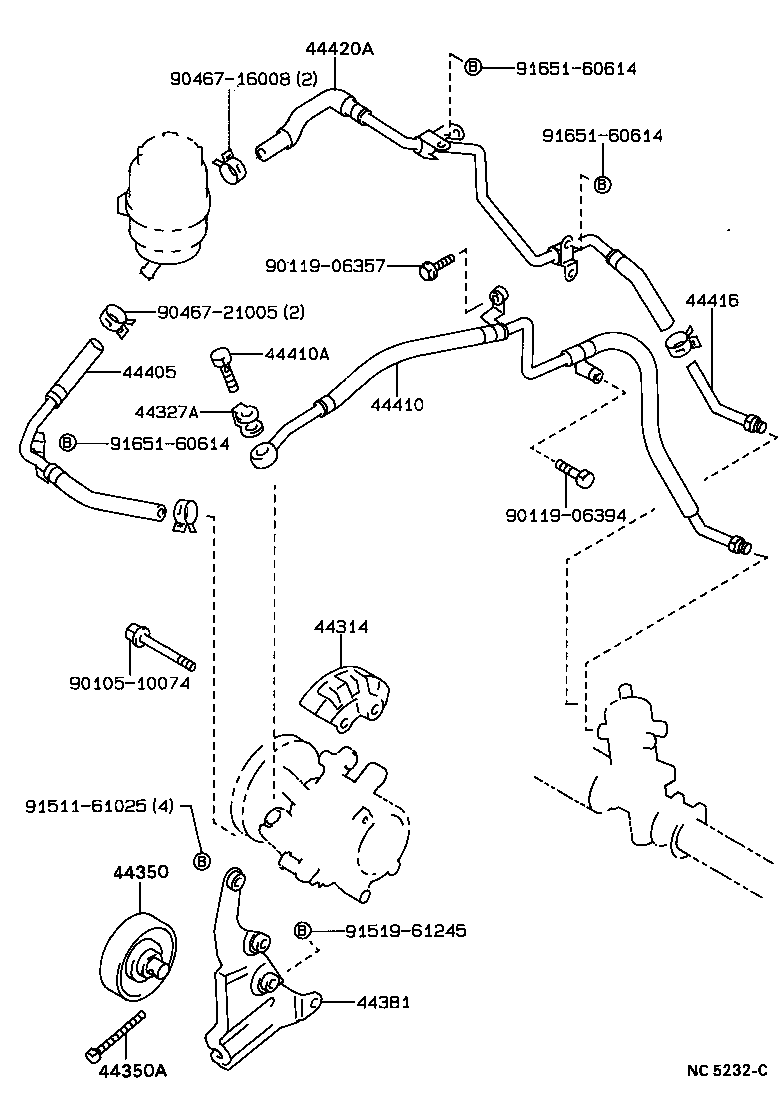

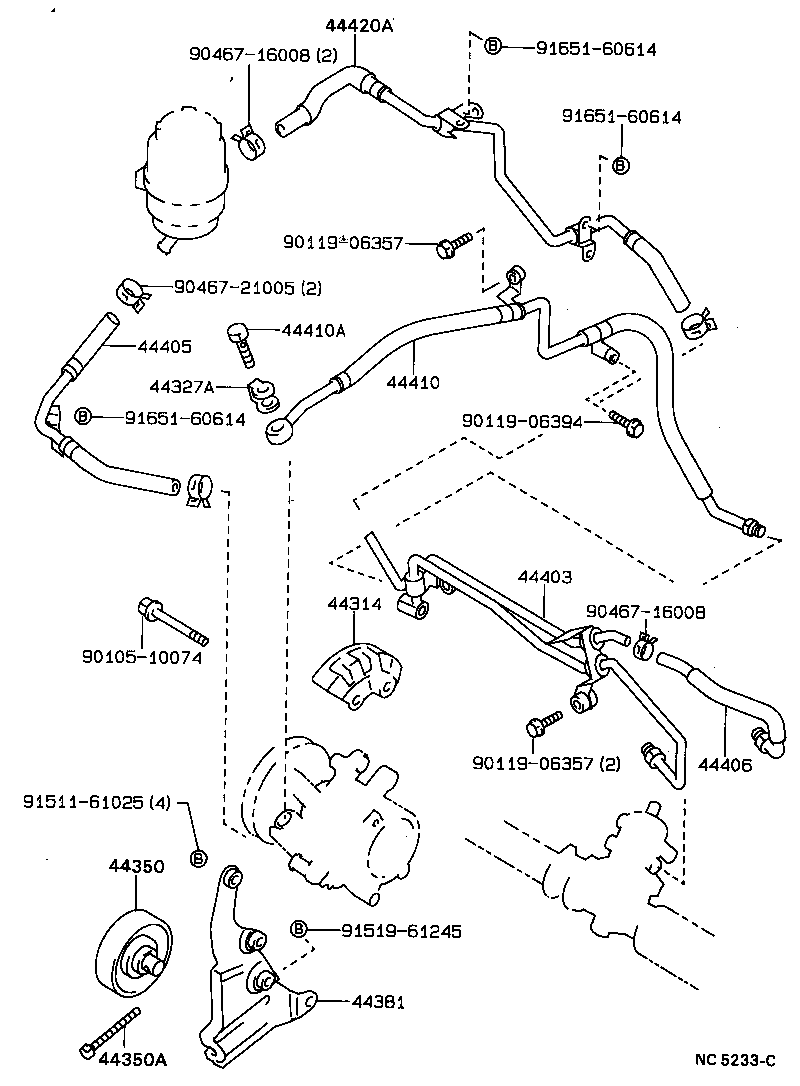

Figure MCH971 MCH971 1987-05 → — Figure NC5058 NC5058 1987-05 → — Figure NC5058 NC5058 1989-08 → — Figure NC5091 NC5091 1987-10 → — Figure NC5092A NC5092A 1987-10 → — Figure NC0142B NC0142B 1987-05 → — Figure NC0143C NC0143C 1987-05 → — Figure NC5232C NC5232C 1987-05 → — Figure NC5233C NC5233C 1987-05 → — Figure MCH968 MCH968 1989-08 → — Figure MCH969 MCH969 1989-08 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
