Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

24 part groups · 6 illustrations

Illustrations

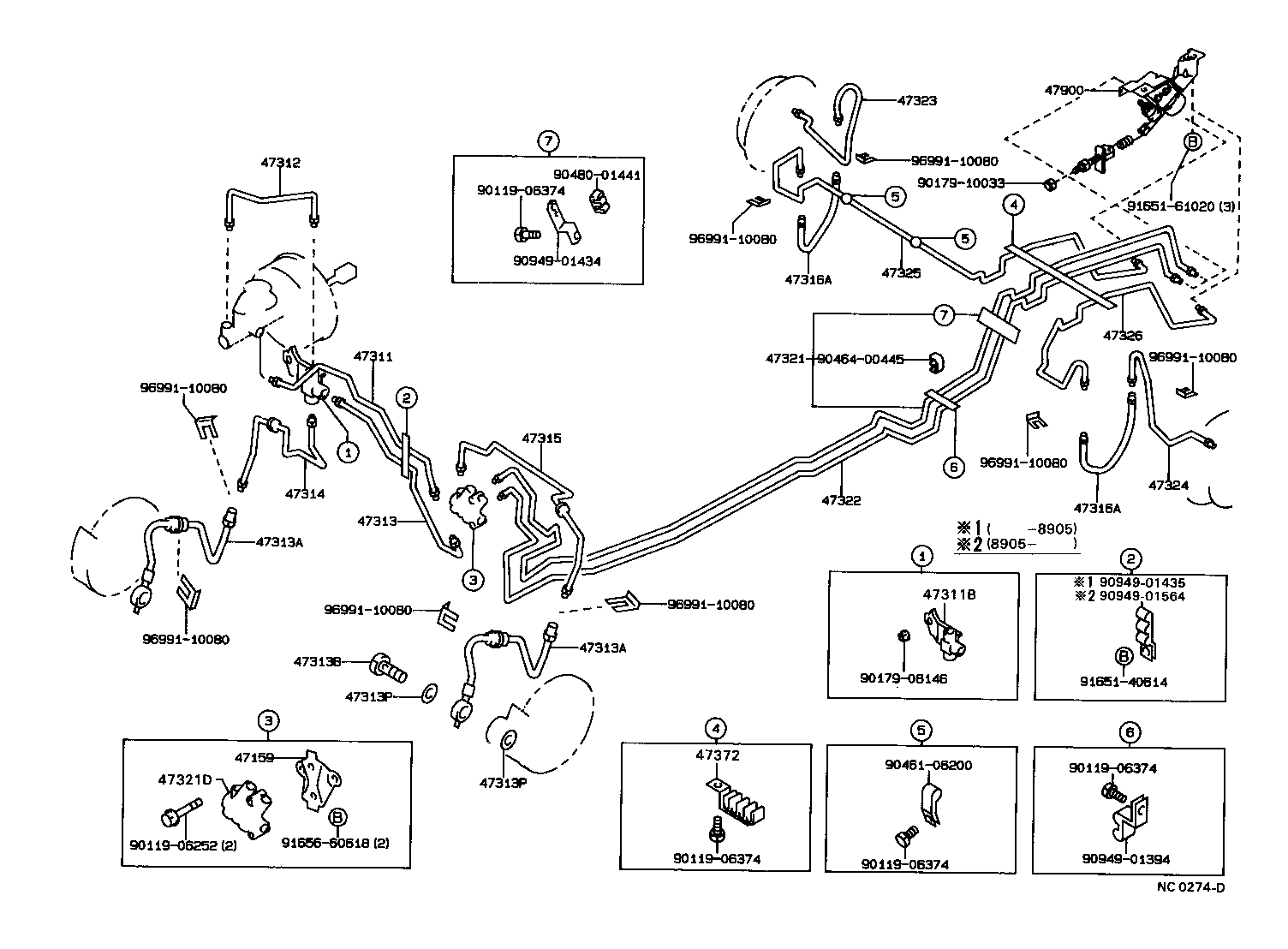

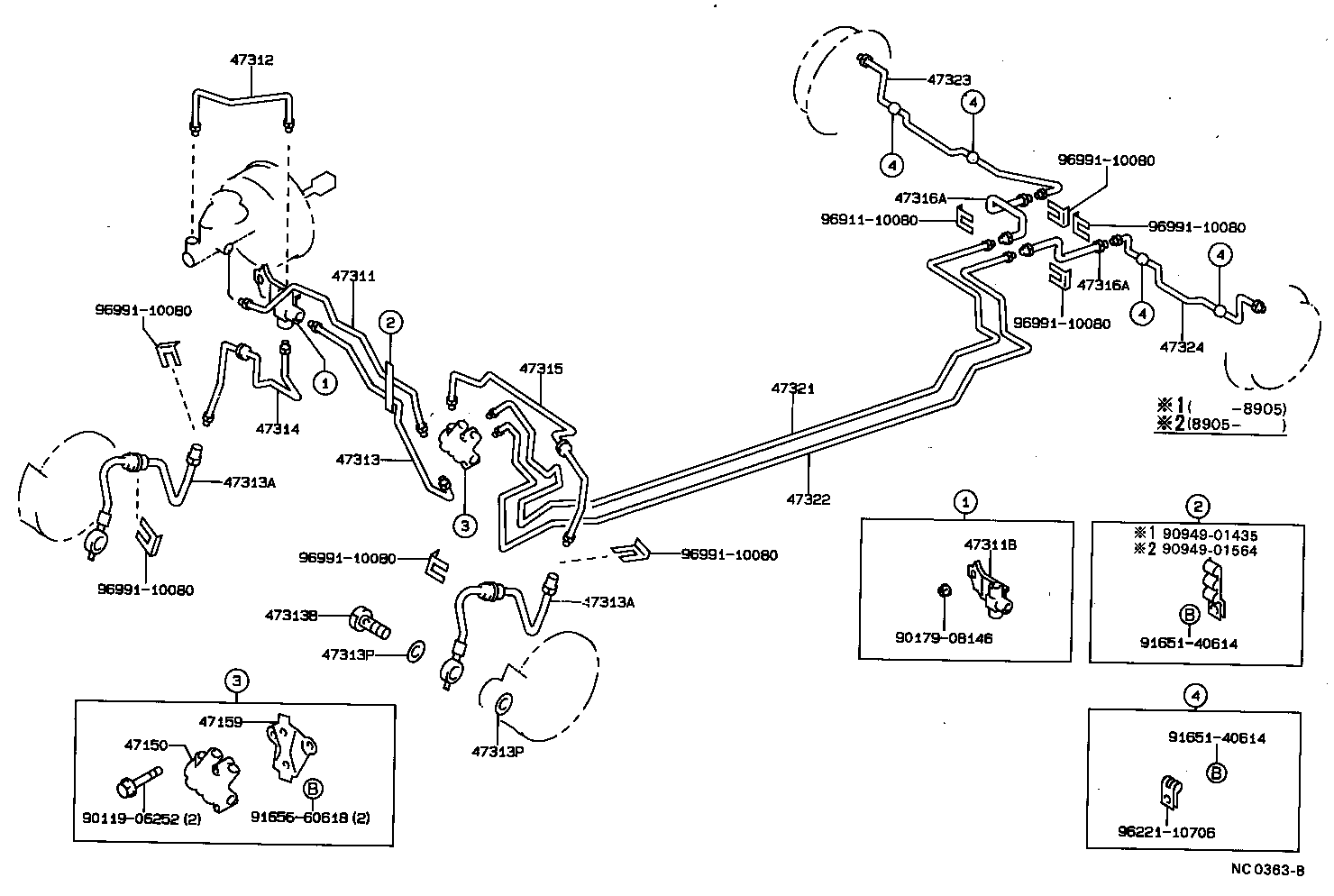

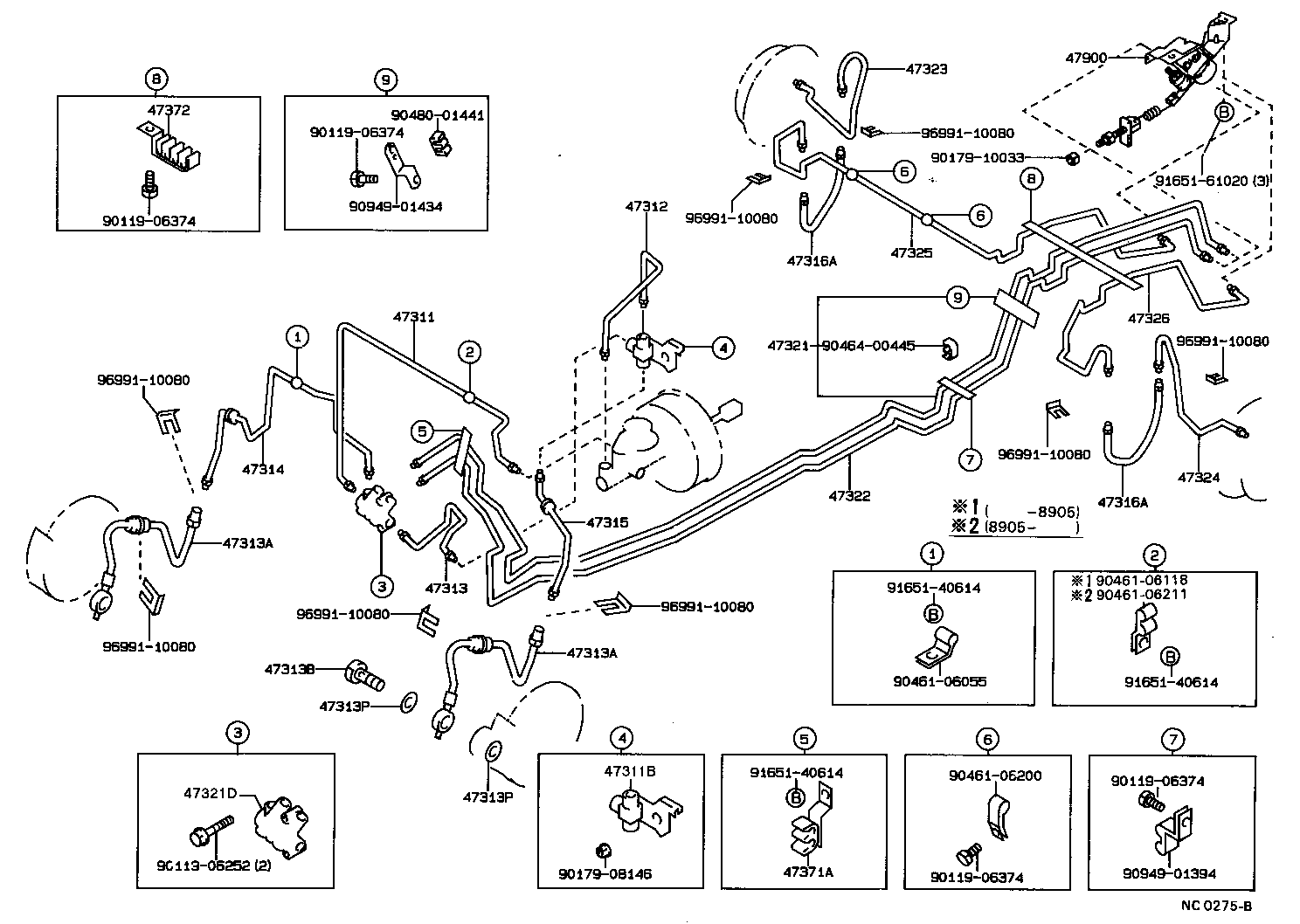

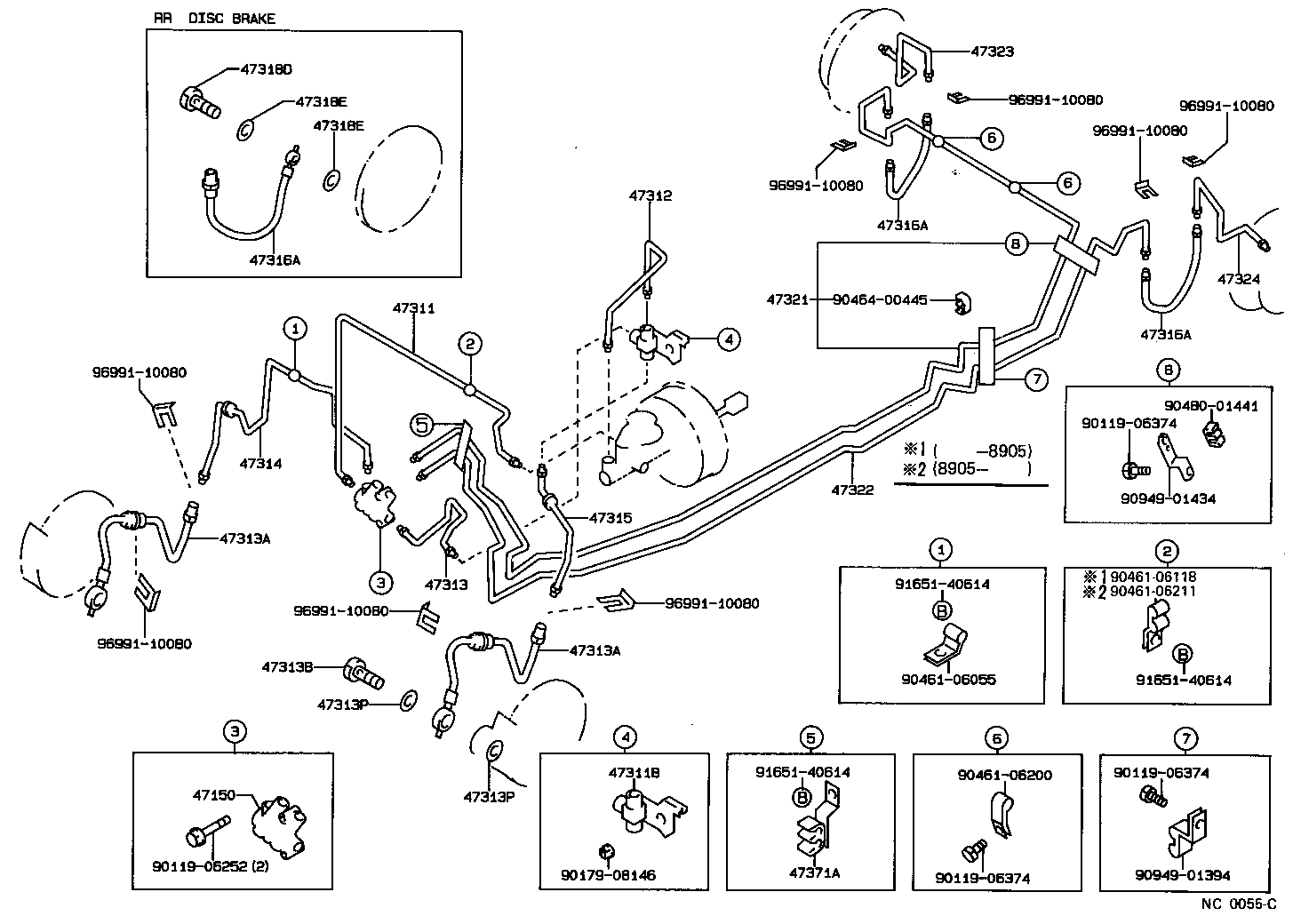

Figure NC0052D NC0052D 1987-05 → — Figure NC0274D NC0274D 1987-08 → — Figure NC0363B NC0363B 1987-10 → — Figure NC0055C NC0055C 1987-05 → — Figure NC0275B NC0275B 1987-08 → — Figure NC0381C NC0381C 1987-10 → —

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47159 Bracket, Proportioning Valve
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47900 Valve Assy, Load Sensing W/Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
