Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 5 illustrations

Illustrations

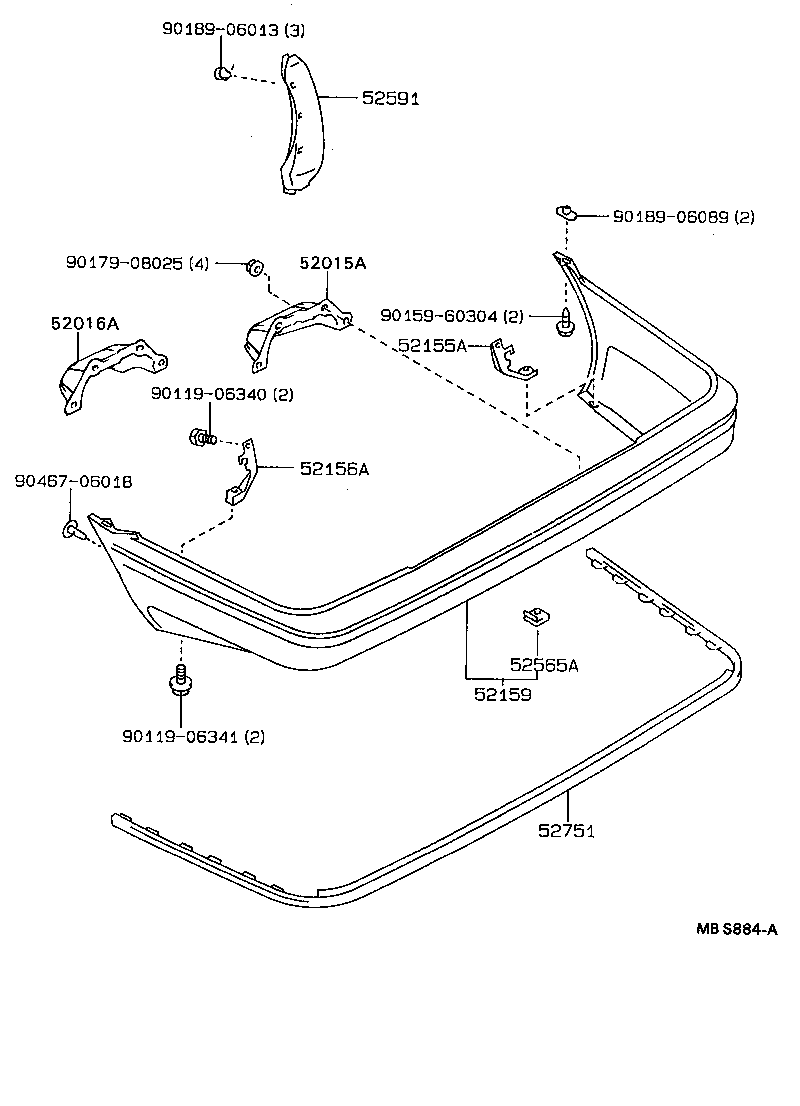

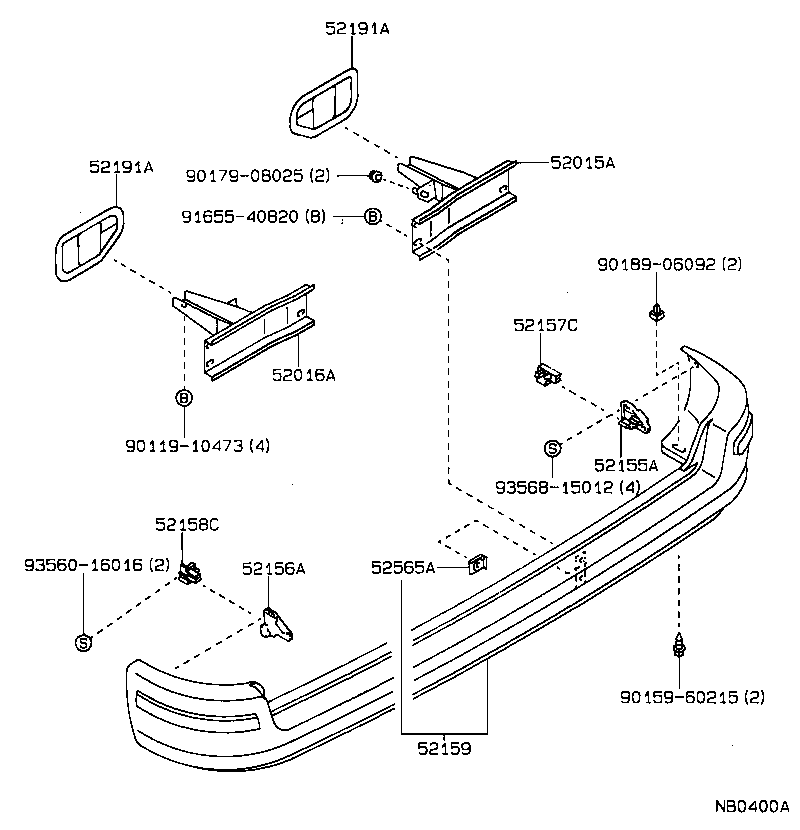

Figure NB0415C NB0415C 1987-05 → — Figure NB0400A NB0400A 1987-08 → 1989-08 Figure MBS884A MBS884A 1989-08 → — Figure NB0400A NB0400A 1989-08 → — Figure NB0641B NB0641B 1988-02 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161A Piece, Rear Bumper, RH
52162A Piece, Rear Bumper, LH
52172B Reinforcement, Rear Bumper, NO.2
52173C Reinforcement, Rear Bumper, NO.3
52191A Seal, Rear Bumper Arm
52191C Seal, Rear Bumper Arm, RH
52192C Seal, Rear Bumper Arm, LH
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
