Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

12 part groups · 4 illustrations

Illustrations

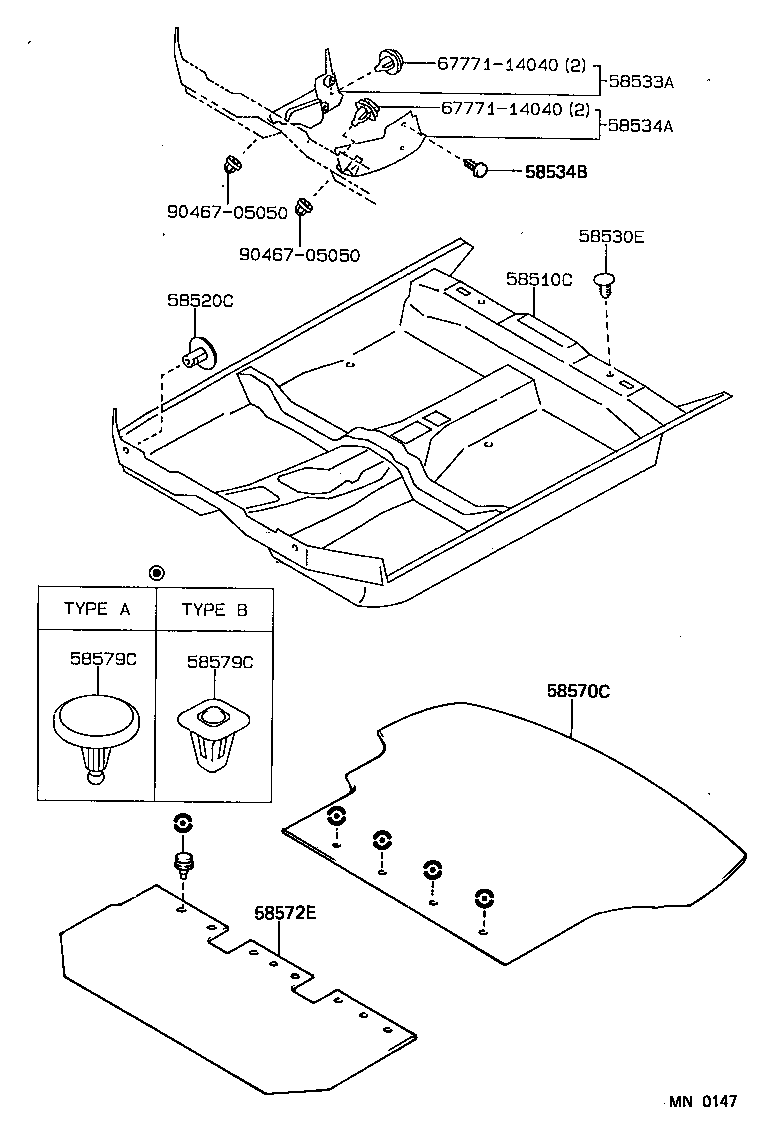

Figure MN0146 MN0146 1987-05 → — Figure MN0147 MN0147 1987-05 → — Figure MN0149 MN0149 1987-08 → — Figure MN0150A MN0150A 1988-02 → —

Part groups

PNCDescription
58410R Board Assy, Deck
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58533A Cover, Floor Carpet, Center RH
58534A Mat, Transmission Cover
58534B Clip(FOR FLOOR CARPET CENTER COVER)
58570C Carpet Assy, Rear Floor
58572E Mat, Rear Floor, Front
58574A Plate, Rear Floor Mat Support, Rear
58579C Clip, Rear Floor Carpet Set
58635B Box, Seat Floor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
