Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

11 part groups · 3 illustrations

Illustrations

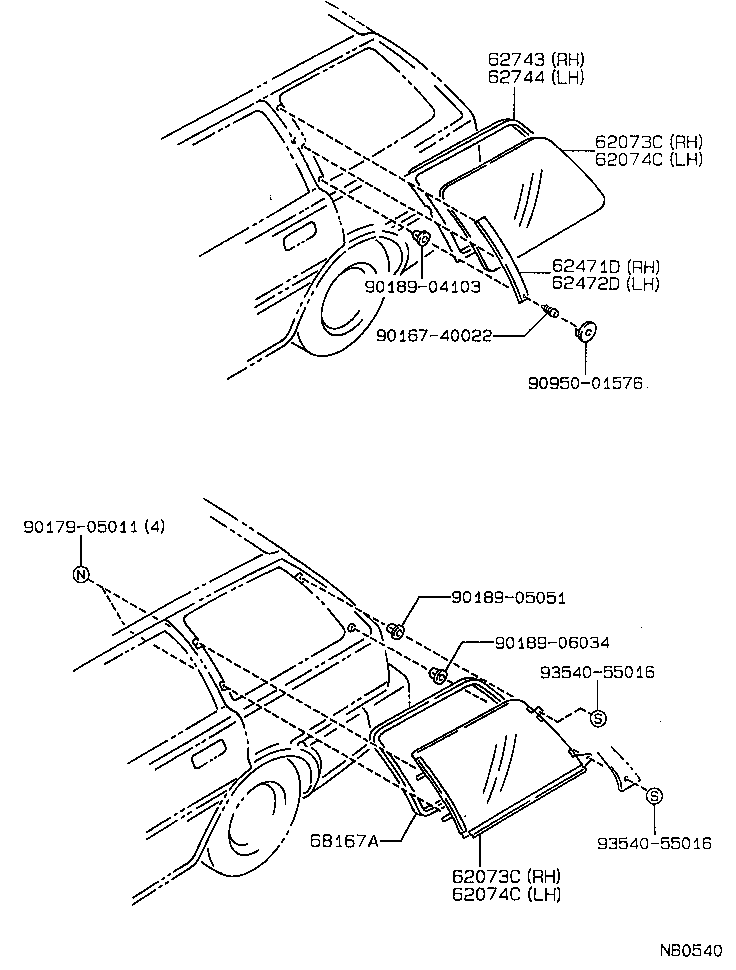

Figure NB0040A NB0040A 1987-05 → — Figure NB0540 NB0540 1987-08 → — Figure NB0664 NB0664 1988-02 → —

Part groups

PNCDescription
62073C Glass Sub-assy, Quarter, Rear RH
62074C Glass Sub-assy, Quarter, Rear LH
62471D Garnish, Rear Pillar, Upper RH
62472D Garnish, Rear Pillar, Upper LH
62710A Window Assy, Quarter, RH
62720A Window Assy, Quarter, LH
62743 Weatherstrip, Quarter Window, Rear RH
62744 Weatherstrip, Quarter Window, Rear LH
62786A Spacer, Quarter Window Glass, NO.2
68167A Weatherstrip, Quarter Window NO.2 Glass
75049A Clip Sub-assy, Outside Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
