Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

20 part groups · 3 illustrations

Illustrations

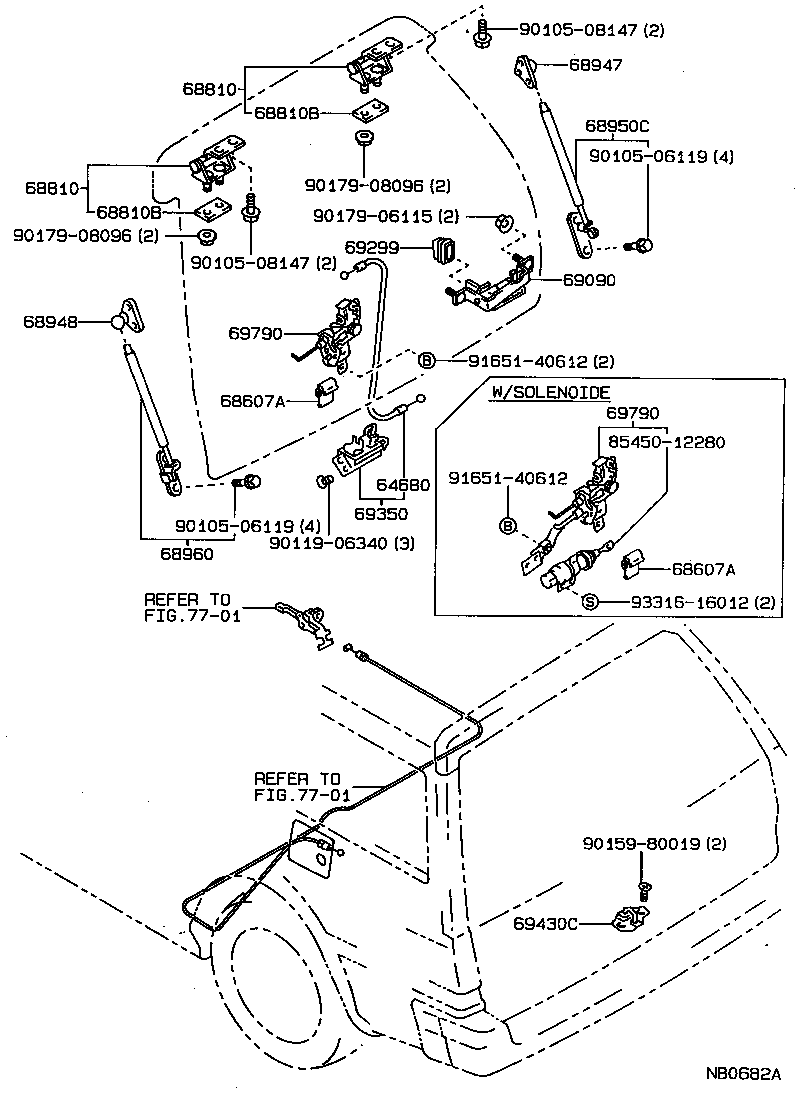

Figure MBS890A MBS890A 1987-05 → — Figure NB0471D NB0471D 1987-08 → — Figure NB0682A NB0682A 1988-02 → —

Part groups

PNCDescription
64680 Cable Assy, Back Door Lock Control
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68607A Clamp, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68810 Hinge Assy, Back Door, Upper
68810B Pad, Back Door Hinge
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69090 Handle Assy, Back Door, Outside
69299 Grommet, Back Door Handle
69350 Lock Assy, Back Door
69377C Snap, Door Lock Control Rod
69430A Striker Assy, Back Door Lower Lock
69430C Striker Assy, Back Door Lock
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
