Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

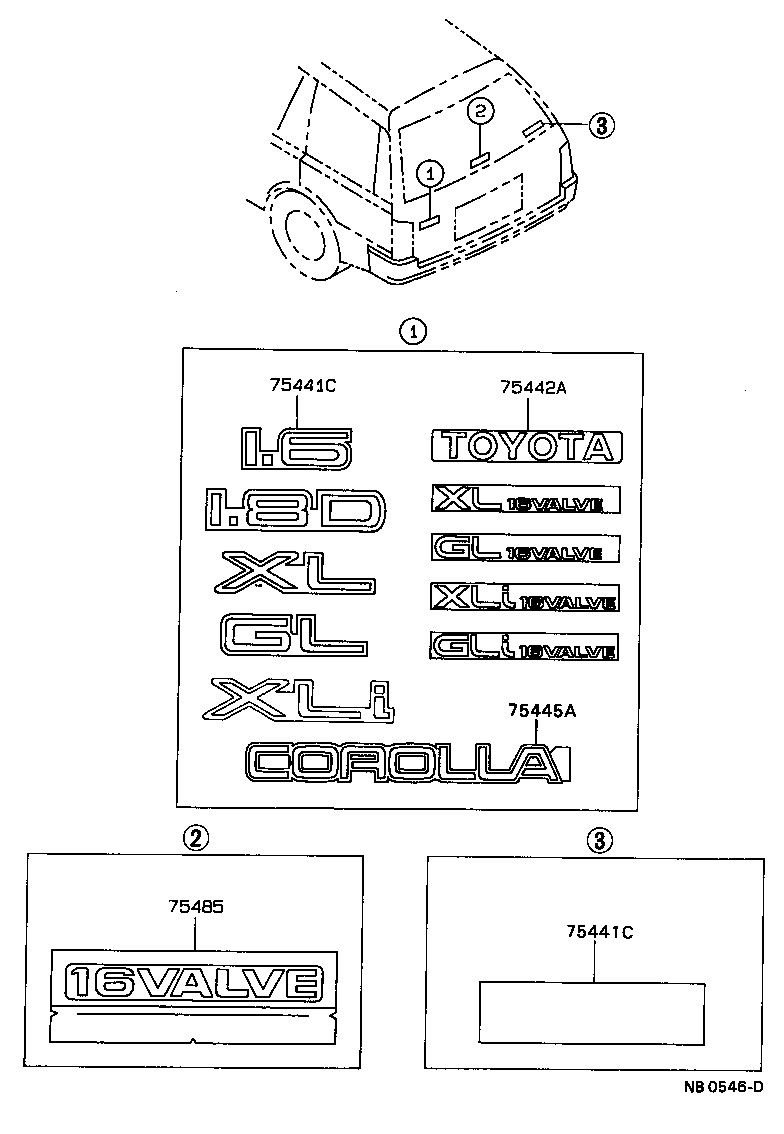

Figure NB0053G NB0053G 1987-05 → — Figure NB0546D NB0546D 1987-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
