Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

17 part groups · 3 illustrations

Illustrations

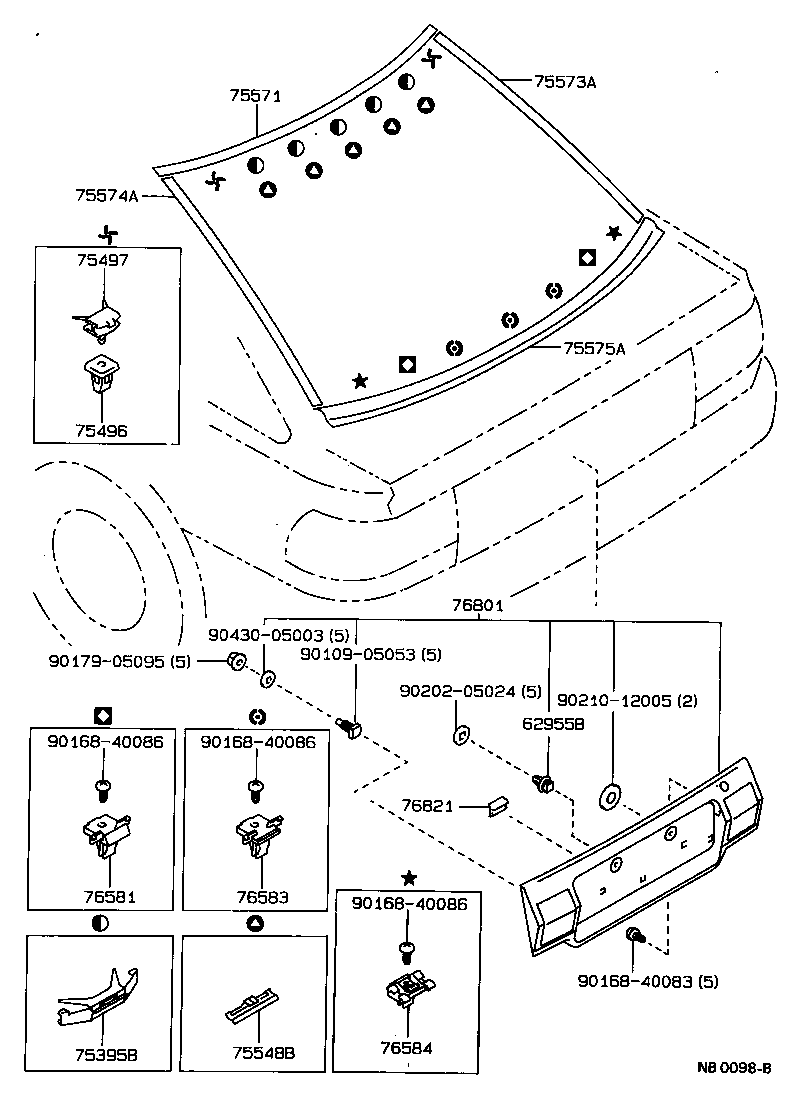

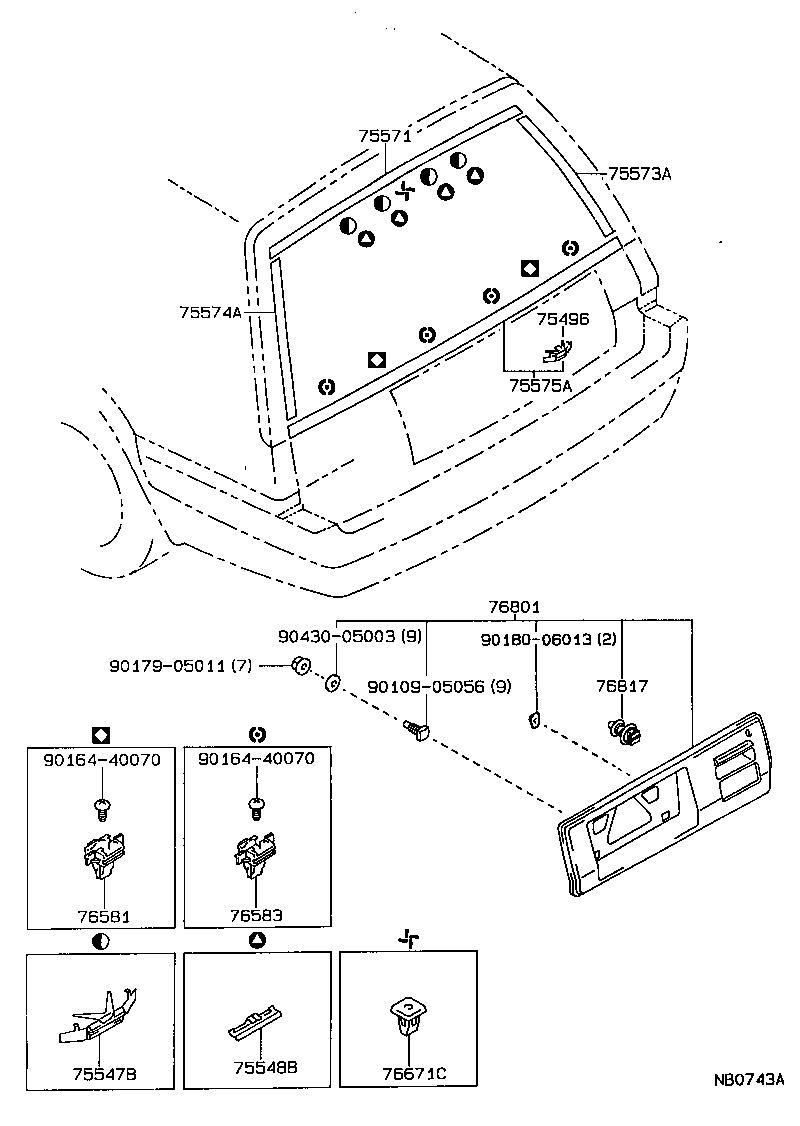

Figure NB0097B NB0097B 1987-05 → — Figure NB0098B NB0098B 1987-05 → — Figure NB0743A NB0743A 1988-02 → —

Part groups

PNCDescription
62955B Retainer, Back Door Garnish
75395B Clip, Back Door Moulding, NO.1
75496 Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75547B Clip, Windshield Outside Moulding, NO.3
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
76671C Clip, Back Window Moulding
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
