Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

31 part groups · 4 illustrations

Illustrations

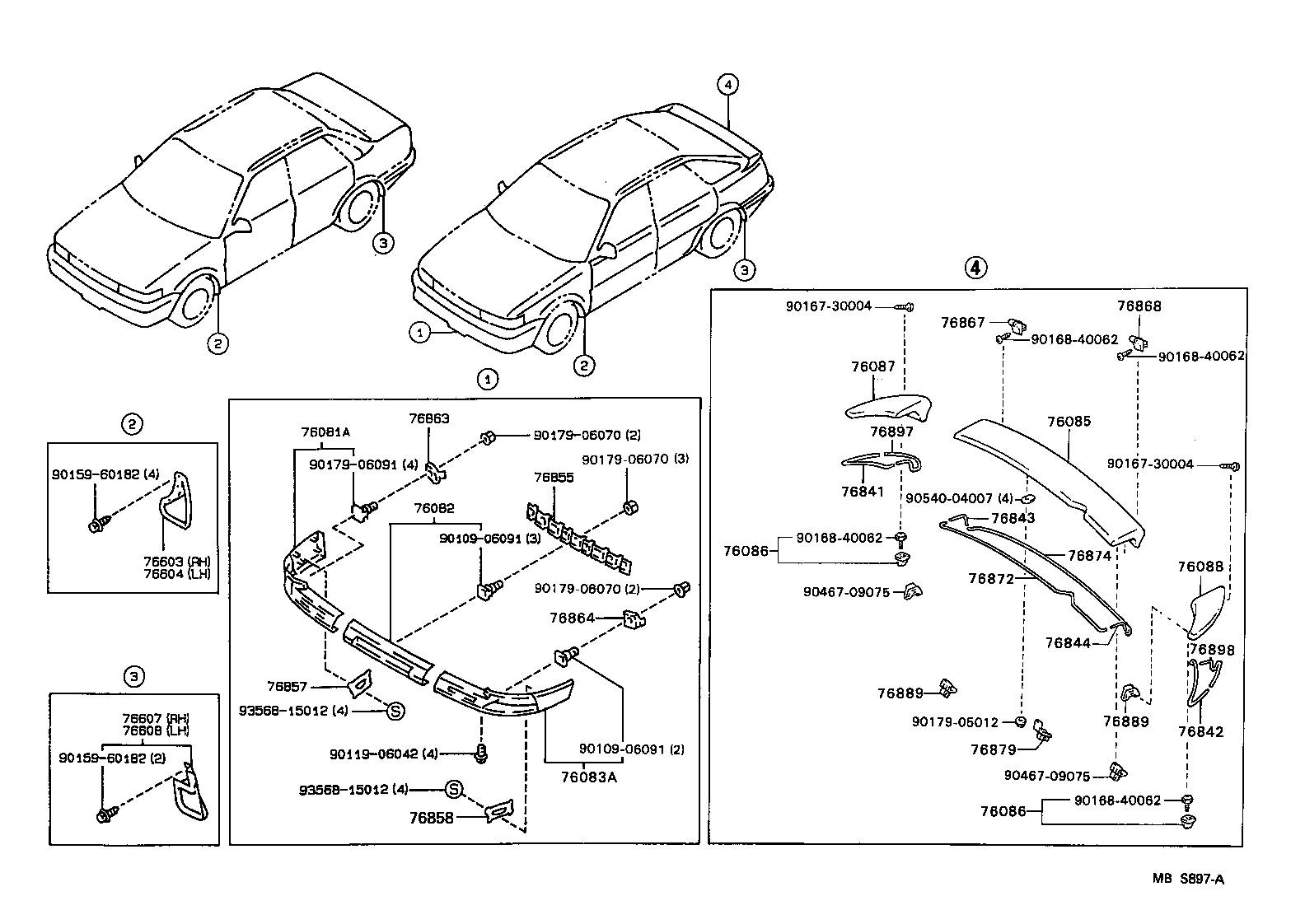

Figure NB0103E NB0103E 1987-05 → 1989-08 Figure NB0103E NB0103E 1987-08 → 1989-08 Figure MBS897A MBS897A 1989-08 → — Figure NB0744A NB0744A 1988-02 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76082 Spoiler Sub-assy, Front Center
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76086 Retainer Sub-assy, Rear Spoiler
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76841 Protector, Rear Spoiler Side, NO.5 RH
76842 Protector, Rear Spoiler Side, NO.5 LH
76843 Protector, Rear Spoiler, NO.11 RH
76844 Protector, Rear Spoiler, NO.11 LH
76855 Retainer, Front Spoiler, Lower NO.1 Center
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76863 Retainer, Front Spoiler, Lower NO.2 RH
76864 Retainer, Front Spoiler, Lower NO.2 LH
76867 Retainer, Rear Spoiler Side, RH
76868 Retainer, Rear Spoiler Side, LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76887 Seal, Rear Spoiler
76889 Clip, Rear Spoiler, NO.2
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
