Rear Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure NE0096B

NE0096B 1987-05 → —

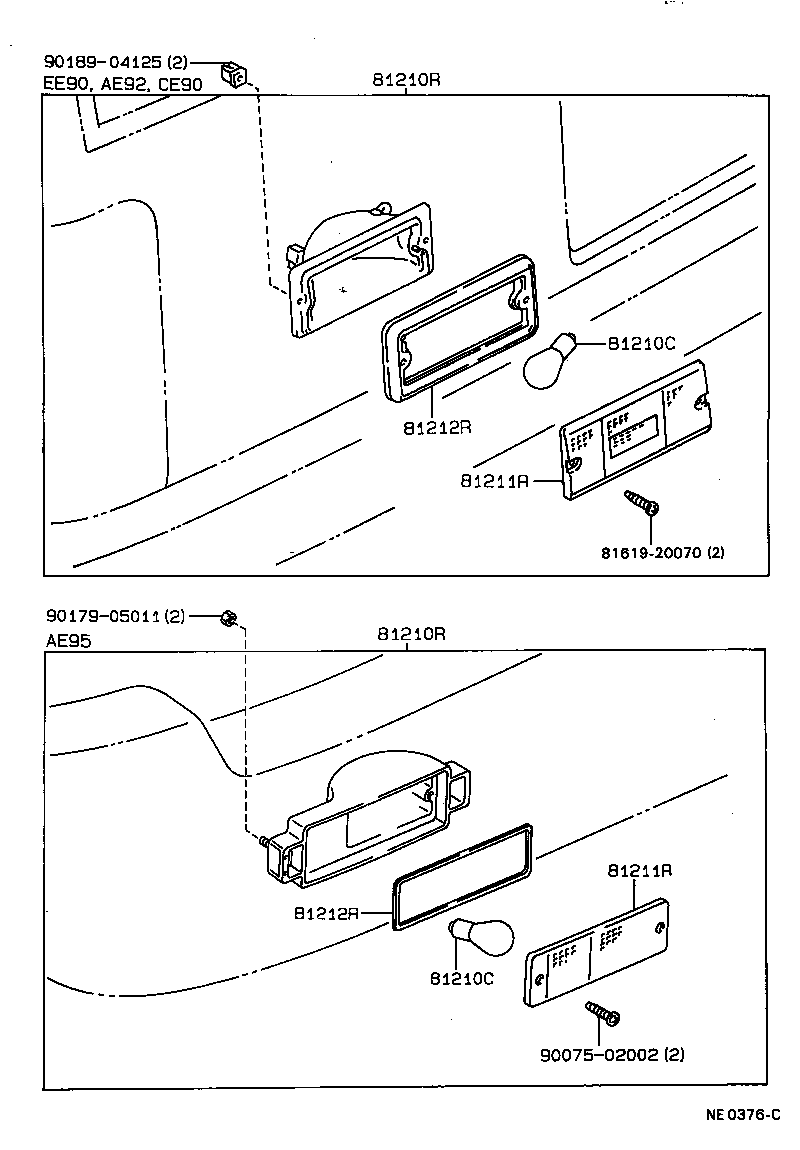

Figure NE0376C

NE0376C 1987-08 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81211R	Lens, Rear Fog Lamp
81212R	Gasket, Rear Fog Lamp, NO.1
81215R	Socket & Wire, Rear Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
