Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

24 part groups · 6 illustrations

Illustrations

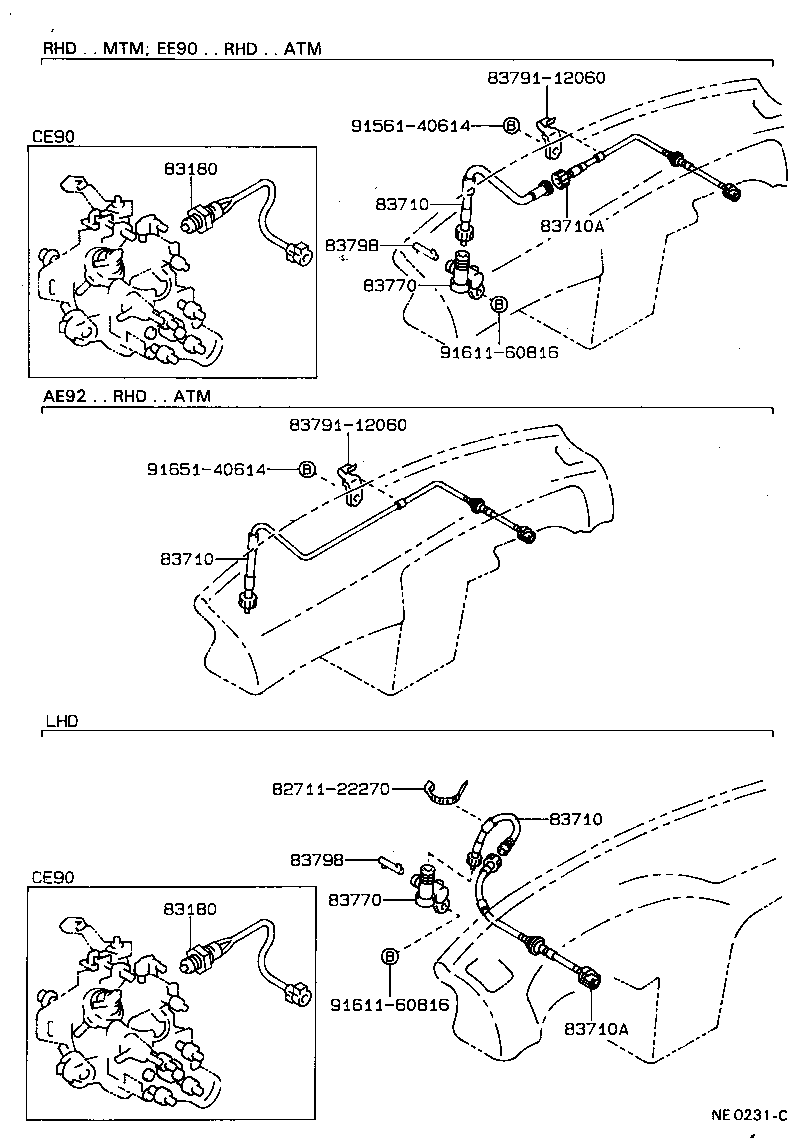

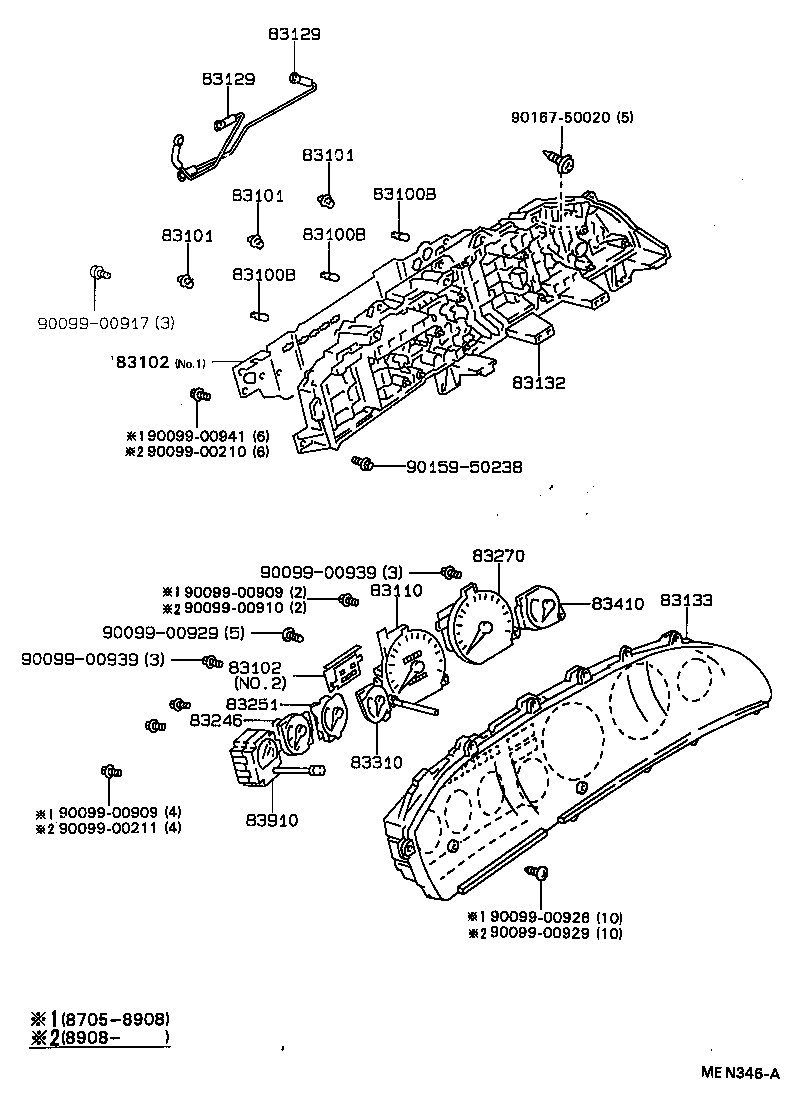

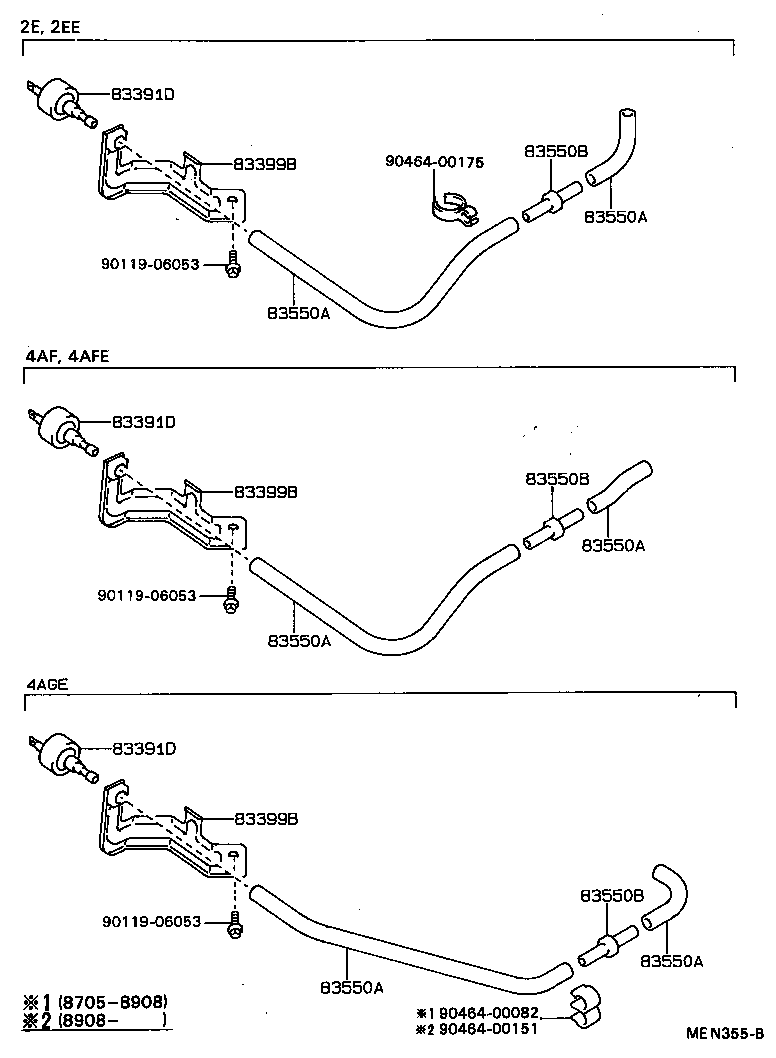

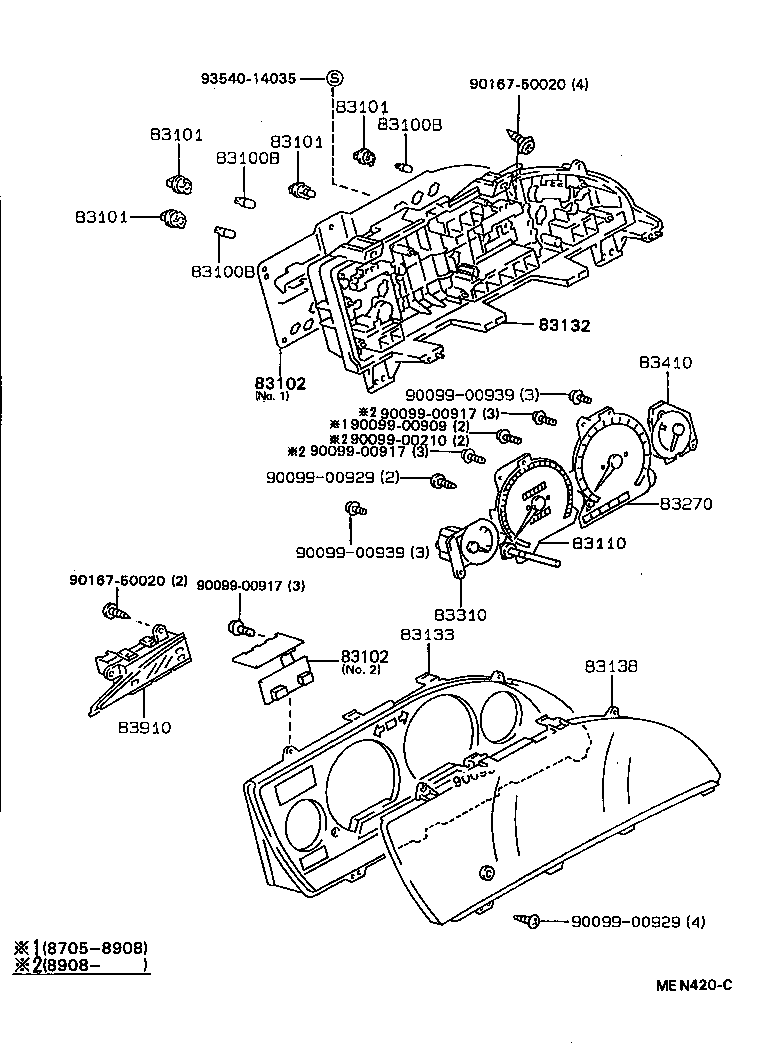

Figure MEN344C MEN344C 1987-05 → — Figure MEN420C MEN420C 1987-05 → — Figure MEN346A MEN346A 1987-05 → — Figure NE0231C NE0231C 1987-05 → — Figure MEN355B MEN355B 1987-05 → — Figure NE0893A NE0893A 1987-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83129 Wire, Meter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83180 Detector Assy, Revolution
83246 Gauge, Oil Pressure Receiver
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83391D Switch, Vacuum
83399B Bracket, Vacuum Switch
83410 Gage Assy, Water Temperature Receiver
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
