Toyota Corolla Sed/LB/WG

1987-05 → 1992-05 · chassis EE9#,AE9#,CE90 · catalogue 151520 · Europe

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

9 part groups · 3 illustrations

Illustrations

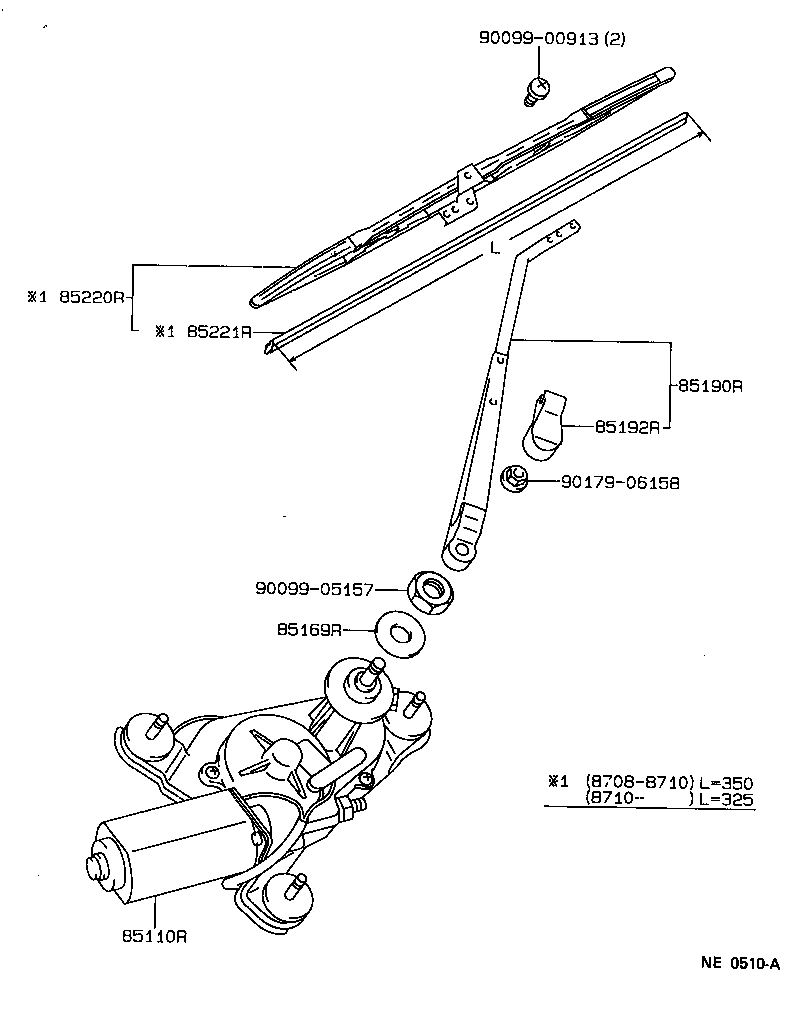

Figure NE0023A NE0023A 1987-05 → — Figure NE0510A NE0510A 1987-08 → — Figure NE0878 NE0878 1988-02 → 1990-08

Part groups

PNCDescription
85110R Motor Assy, Rear Wiper
85148R Nut, W/Washer Packing, Rear Wiper Link Pivot
85168R Nut, Rear Wiper Link Pivot, NO.1
85169R Washer, Rear Wiper Link Pivot, NO.1
85178R Nut (FOR REAR WIPER ARM SETTING)
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
