Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure NE0133A

NE0133A 1987-05 → —

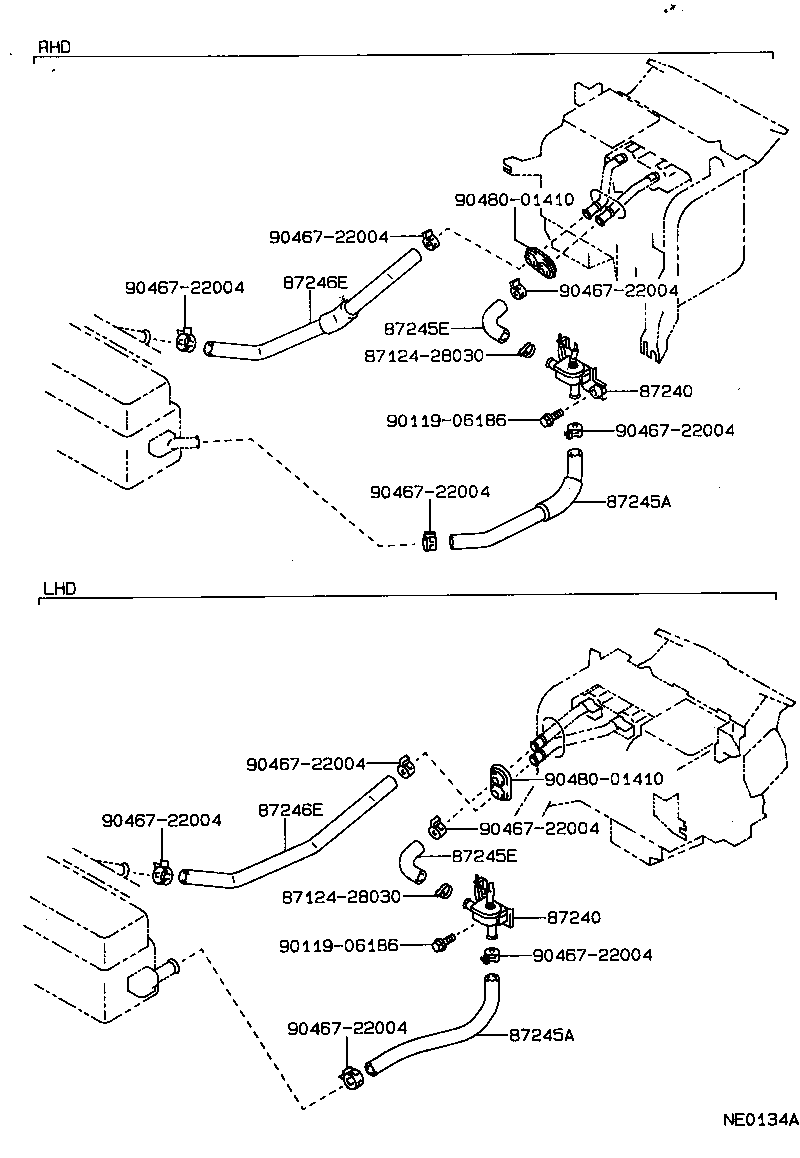

Figure NE0134A

NE0134A 1987-05 → —

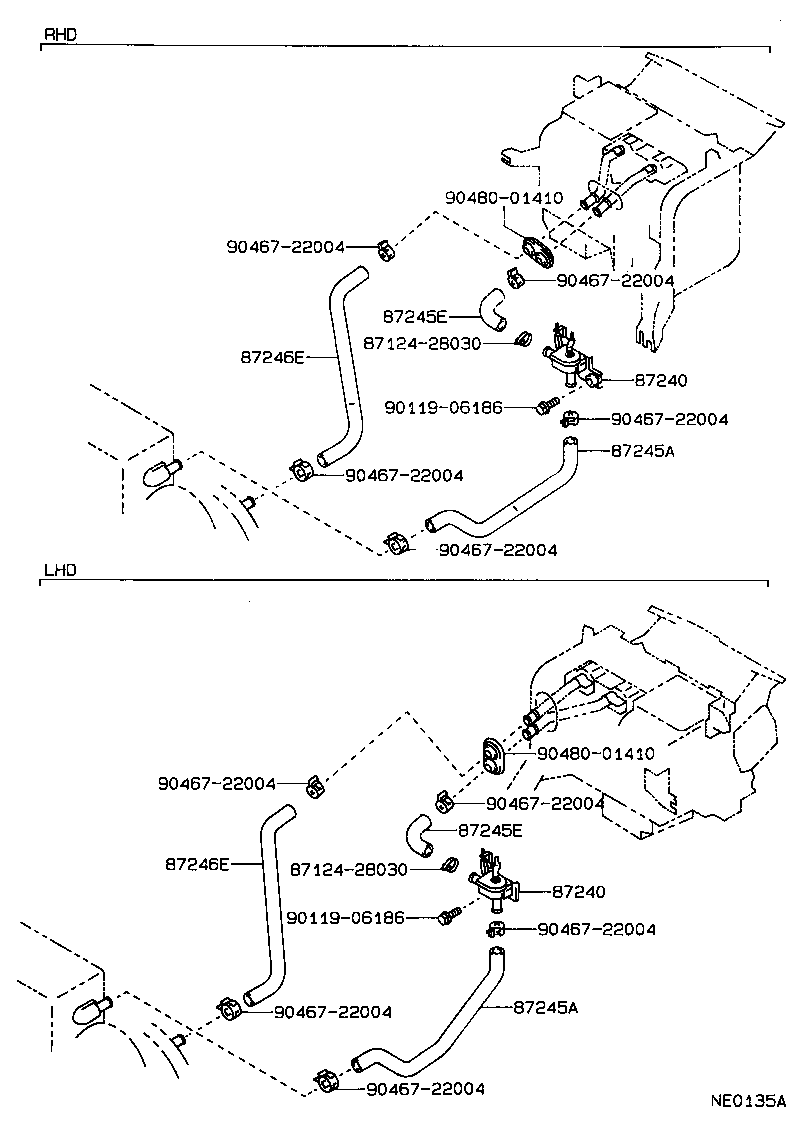

Figure NE0135A

NE0135A 1987-05 → —

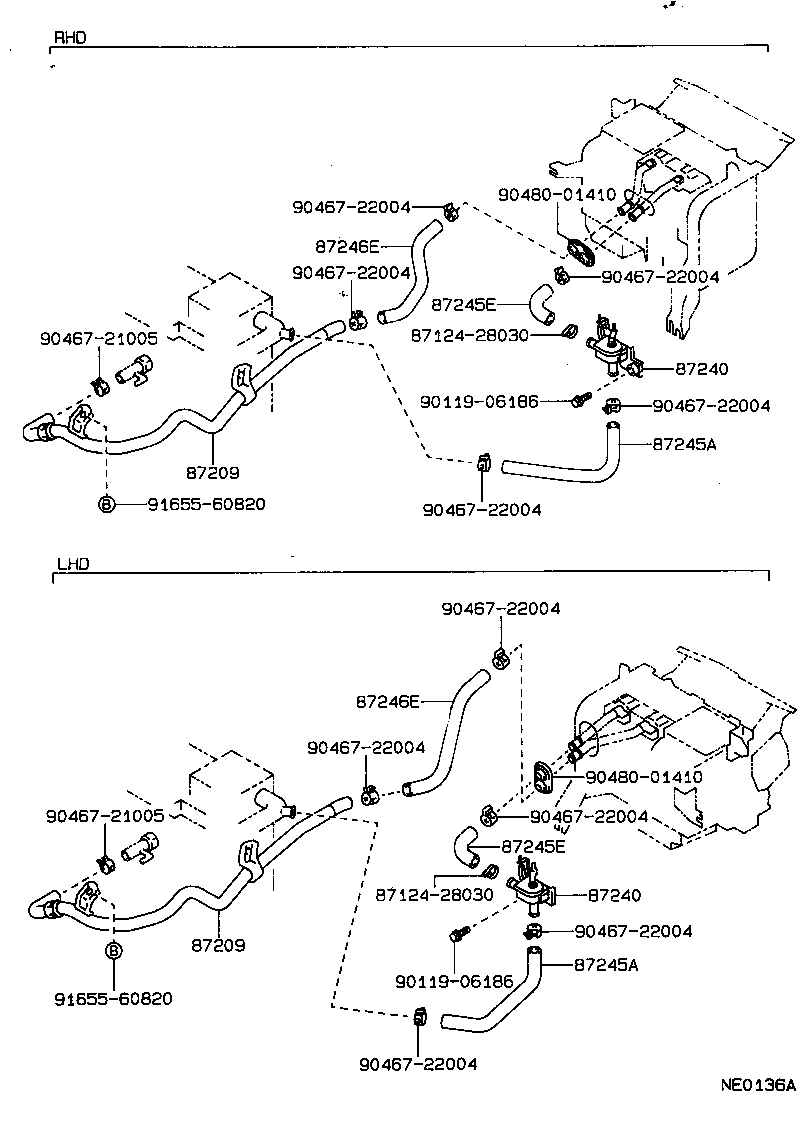

Figure NE0136A

NE0136A 1987-05 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246E	Hose, Heater Water, Outlet E

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
