Heating & Air Conditioning - Compressor

30 part groups · 6 illustrations

Illustrations

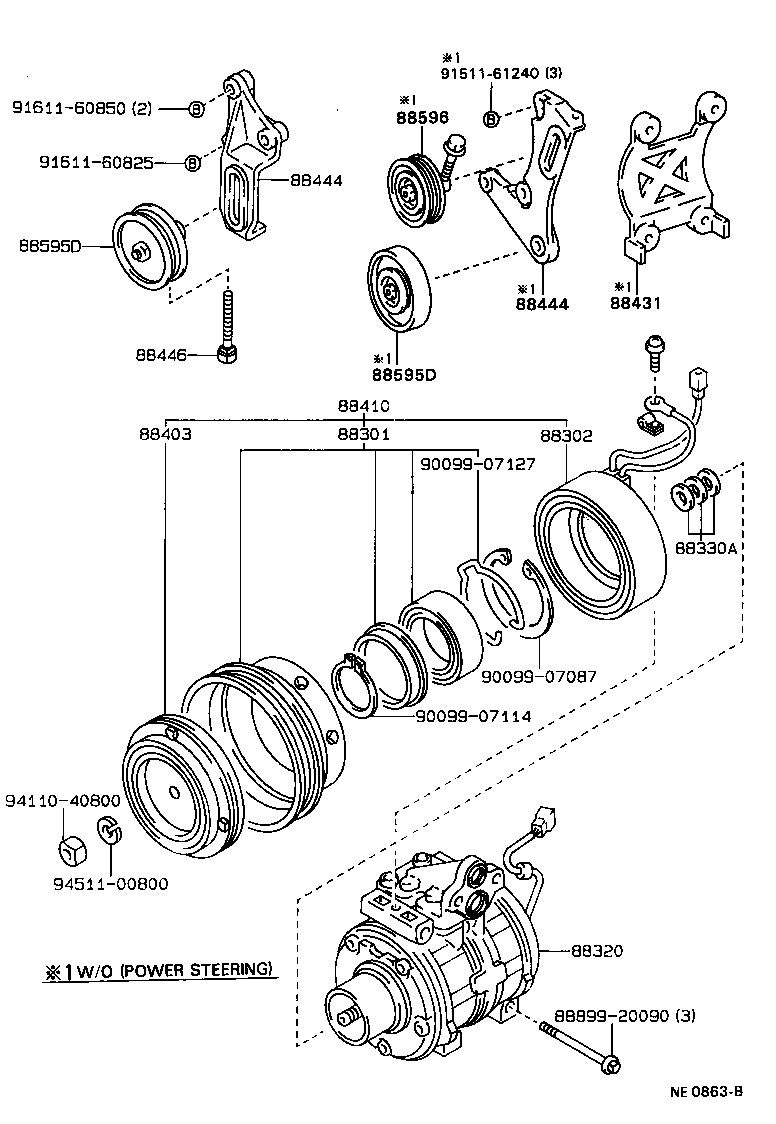

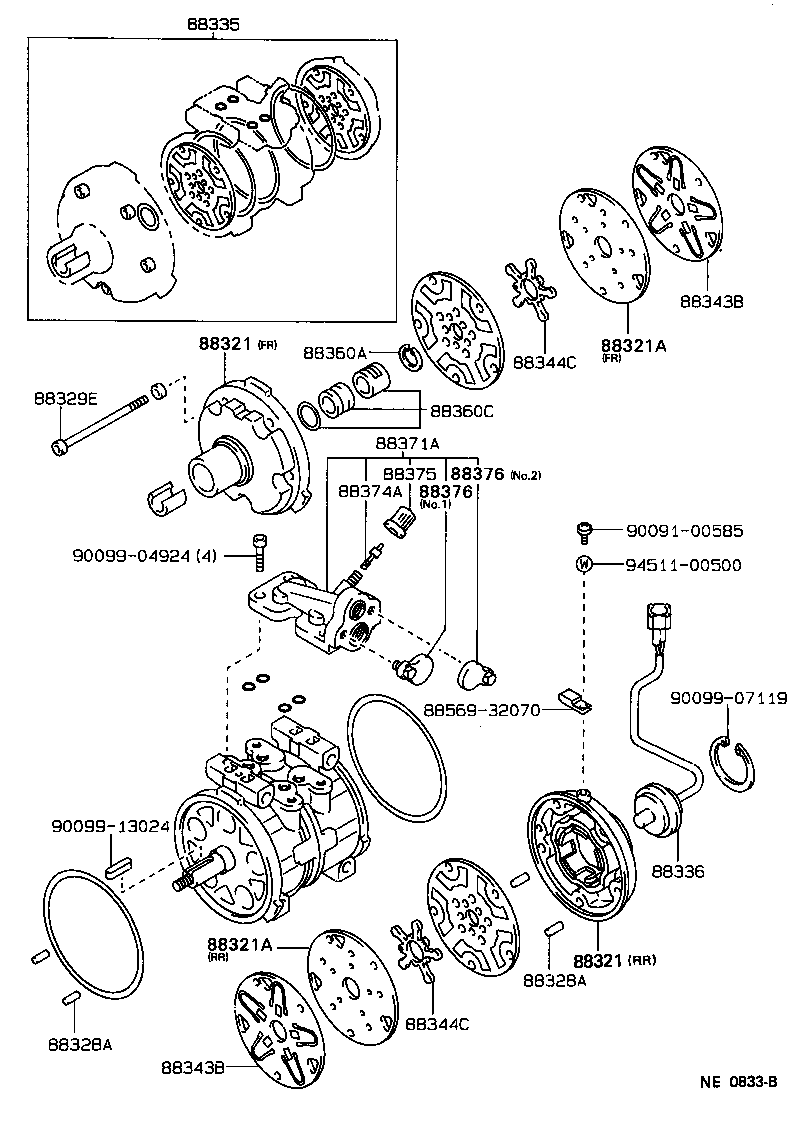

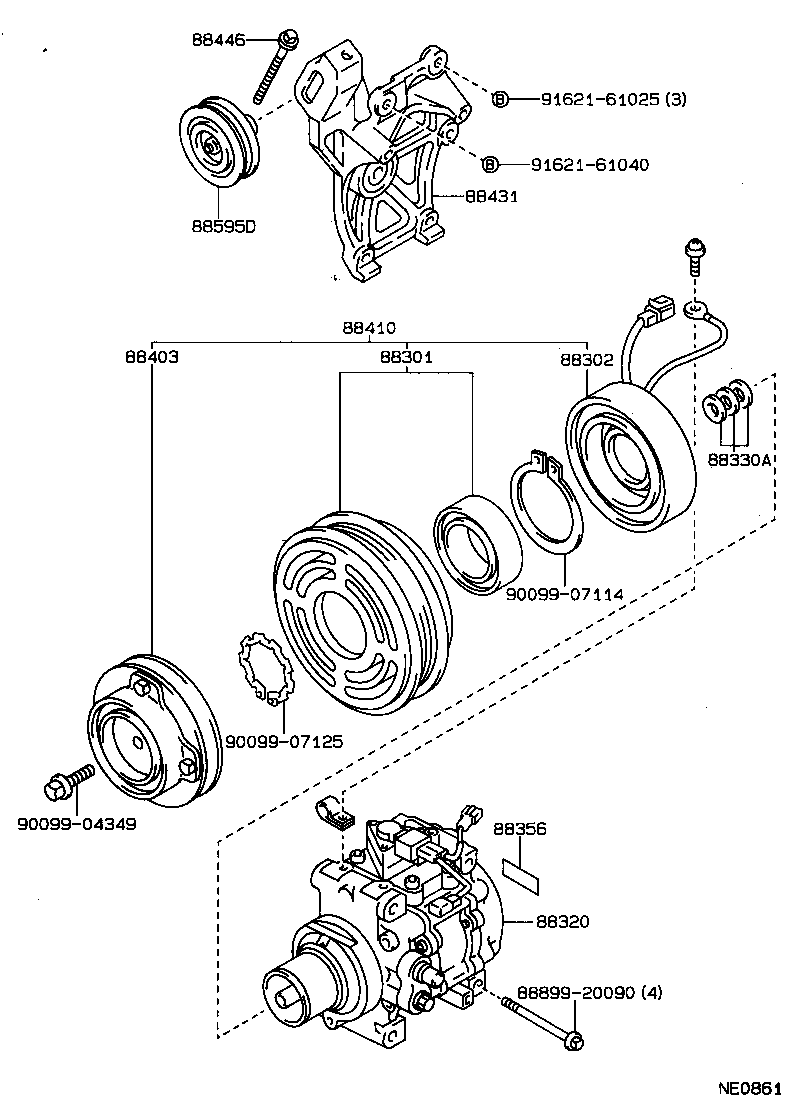

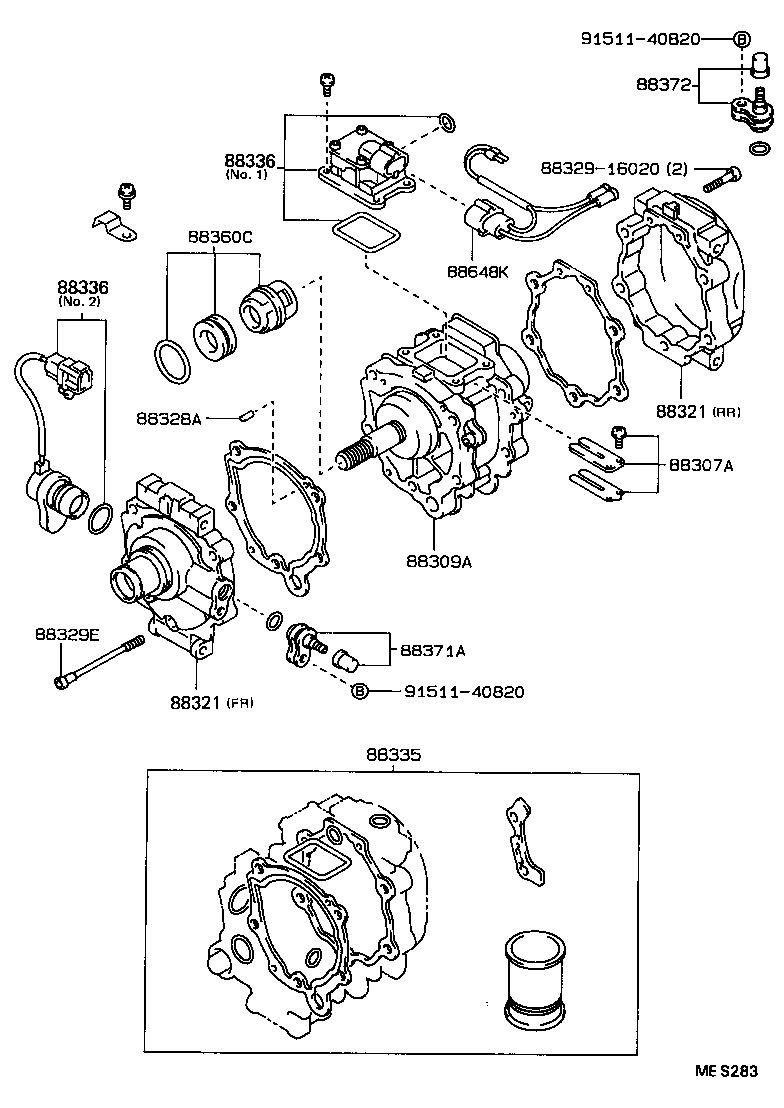

Figure NE0860A NE0860A 1987-05 → — Figure NE0861 NE0861 1987-05 → — Figure NE0863B NE0863B 1987-05 → — Figure MES283 MES283 1987-05 → — Figure NE0832B NE0832B 1987-05 → — Figure NE0833B NE0833B 1987-05 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88307A Reed Sub-assy, Valve
88309A Pump Sub-assy, Compressor
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88328A Pin, Compressor
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88356 Label, Compressor Caution
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88372 Valve, Discharge
88374A Valve, Service
88375 Cap, Cooler Compressor Service Valve
88376 Cap, Blind
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595D Pulley Assy, Idle
88596 Pulley Assy, Idle, NO.2
88648K Wire Sub-assy, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
