Toyota Corolla Sed/WG
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 151530 · Europe
Discontinued model
Data version 1998-02

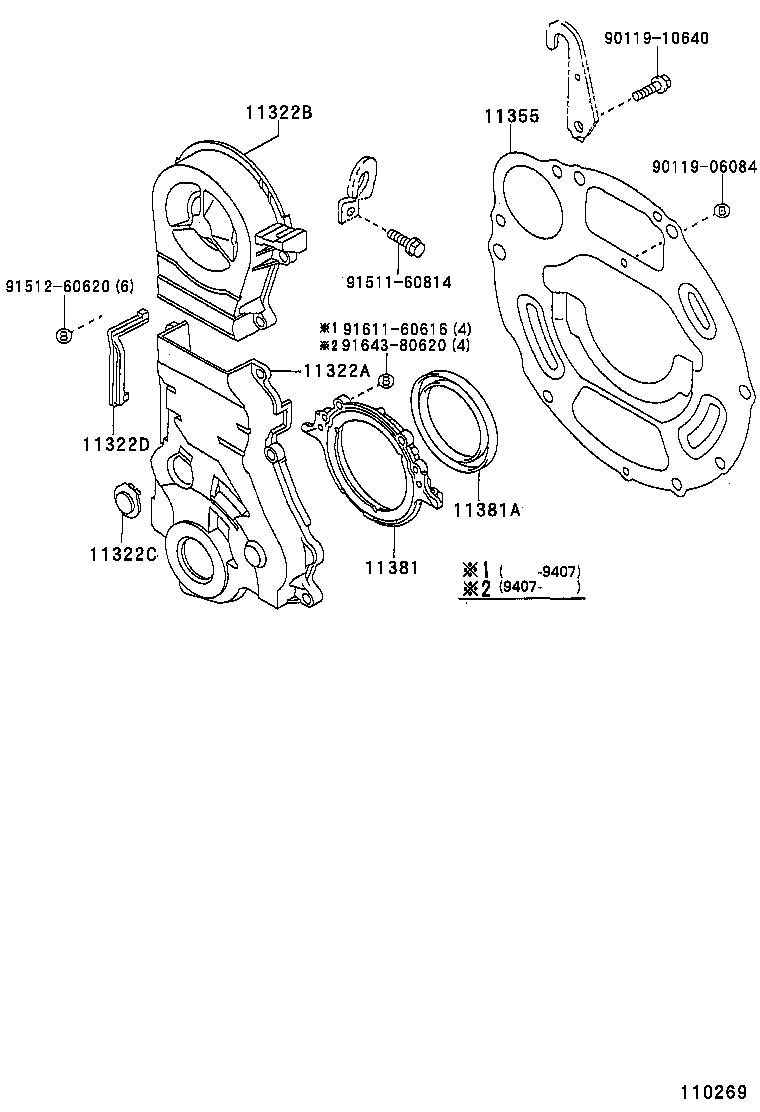

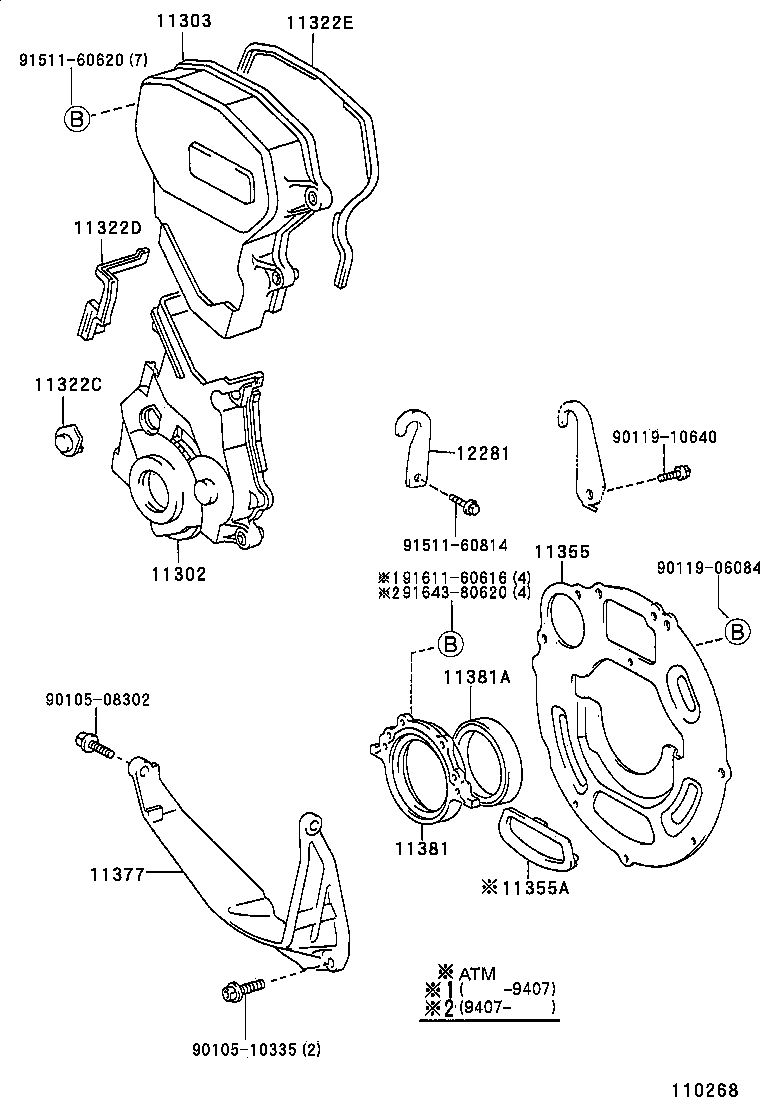

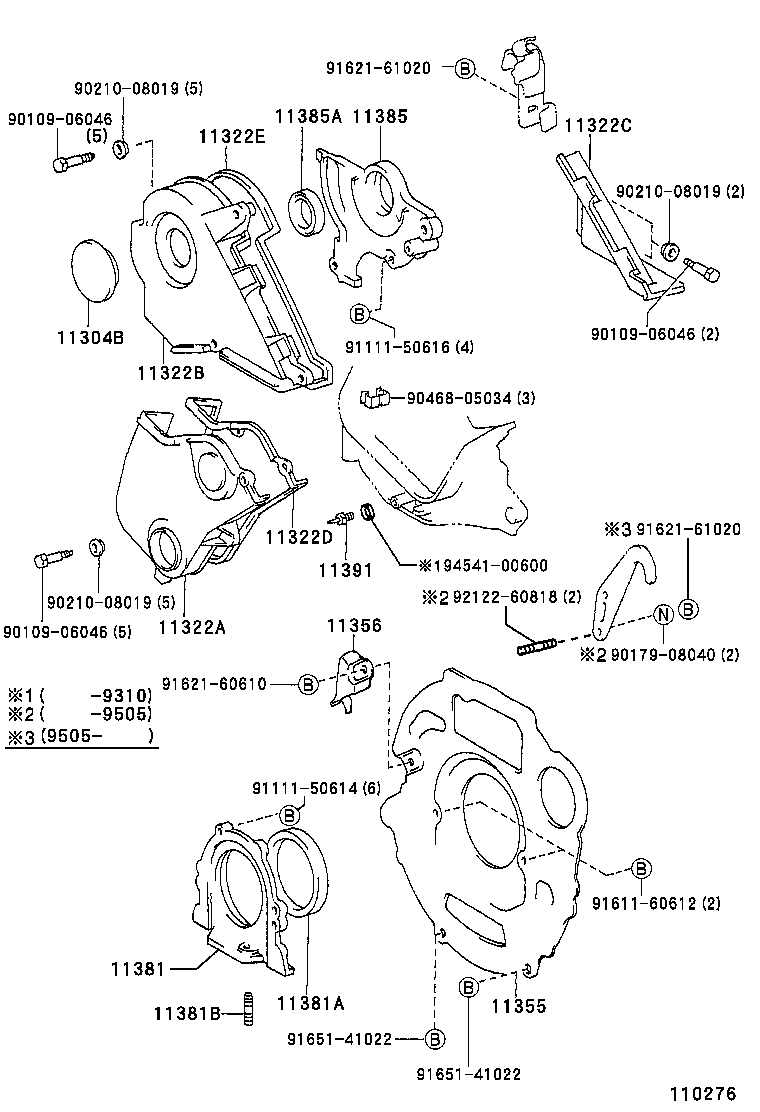

Timing Gear Cover & Rear End Plate
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302T | Plug, Hole |
| 11303 | Cover Sub-assy, Crankshaft Gear OR Pulley |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11304B | Plug, Semi Circular(FOR CHAIN COVER NO.2) |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322B | Cover, Timing Belt, NO.2 |
| 11322C | Cover, Timing Belt, NO.3 |
| 11322D | Gasket, Timing Belt Cover, NO.1 |
| 11322E | Gasket, Timing Belt Cover, NO.2 |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11356 | Plate, Rear End, NO.2 |
| 11361 | Cover, Flywheel Housing Under |
| 11377 | Stiffener, Rear End Plate |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11381B | Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER) |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11385 | Retainer, Camshaft Oil Seal |
| 11385A | Seal, Oil(FOR CAMSHAFT) |
| 11391 | Pointer, Timing |
| 12281 | Hanger, Engine, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
