Toyota Corolla Sed/WG

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 151530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

9 part groups · 2 illustrations

Illustrations

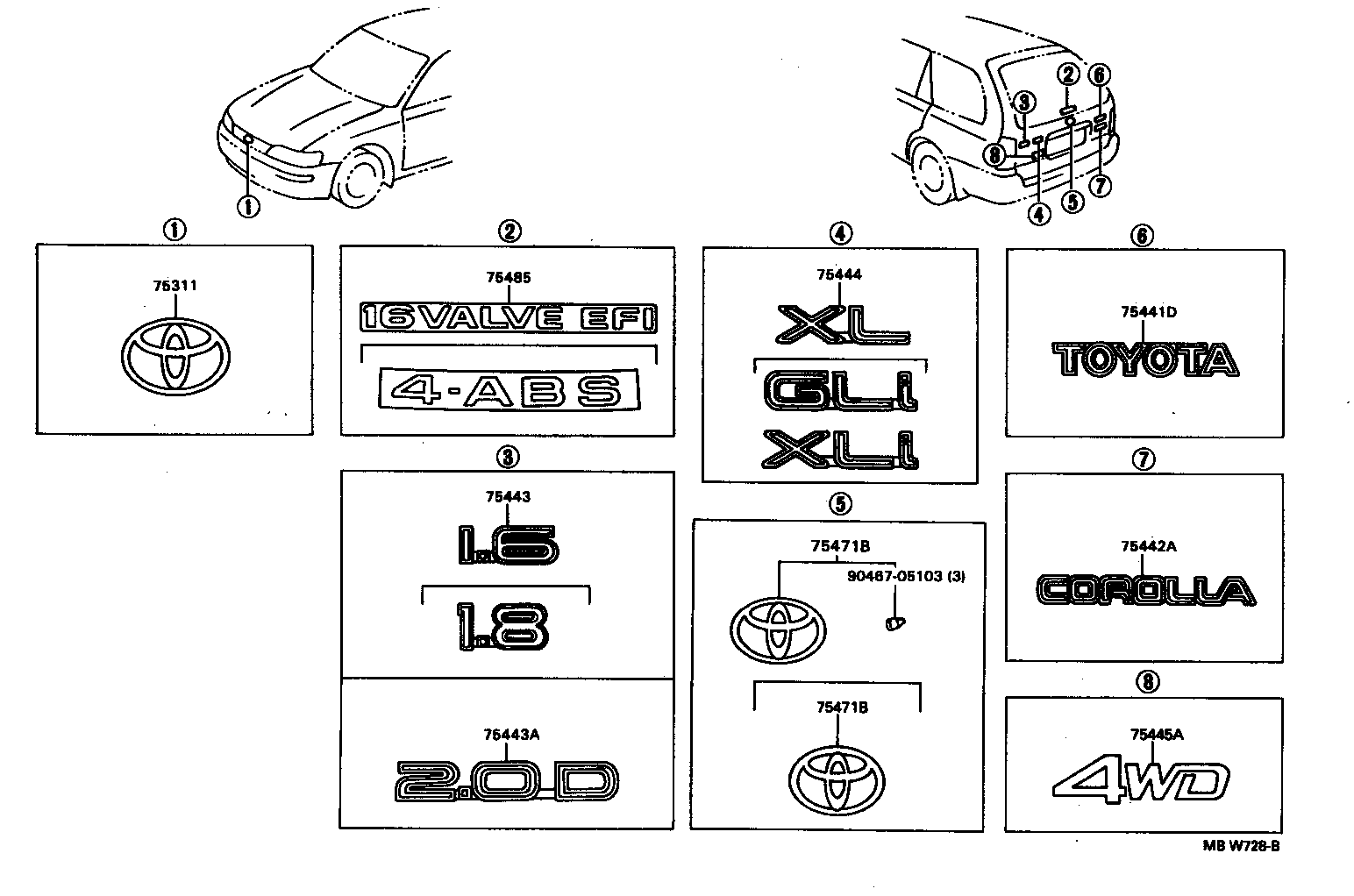

Figure MBW727A MBW727A 1992-05 → — Figure MBW728B MBW728B 1992-05 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75441D Plate, Luggage Compartment Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75445A Plate, Back Door Name, NO.5
75471B Plate, Rear Body Name, NO.1
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
