Toyota Corolla Sed/WG
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 151530 · Europe
Discontinued model
Data version 1998-02
Abs & Vsc

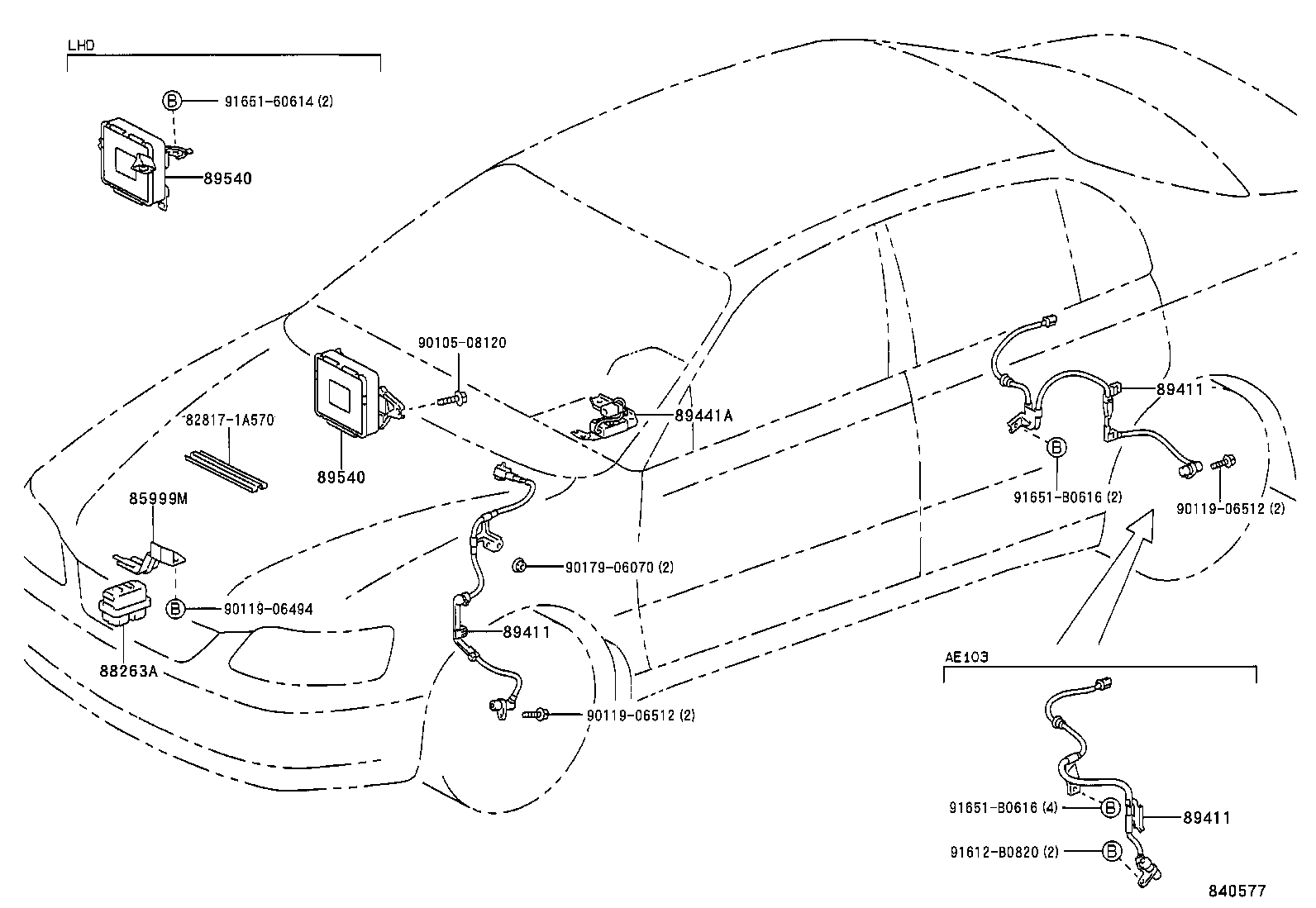

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 89411 | Sensor, Speed |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89549 | Bracket, Skid Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
