Toyota Corolla Sed/WG
1997-05 → 2001-09 · chassis AE11#,CDE110,CE110,EE11#,WZE110,ZZE11# · catalogue 151540 · Europe
Discontinued model
Data version 2002-04

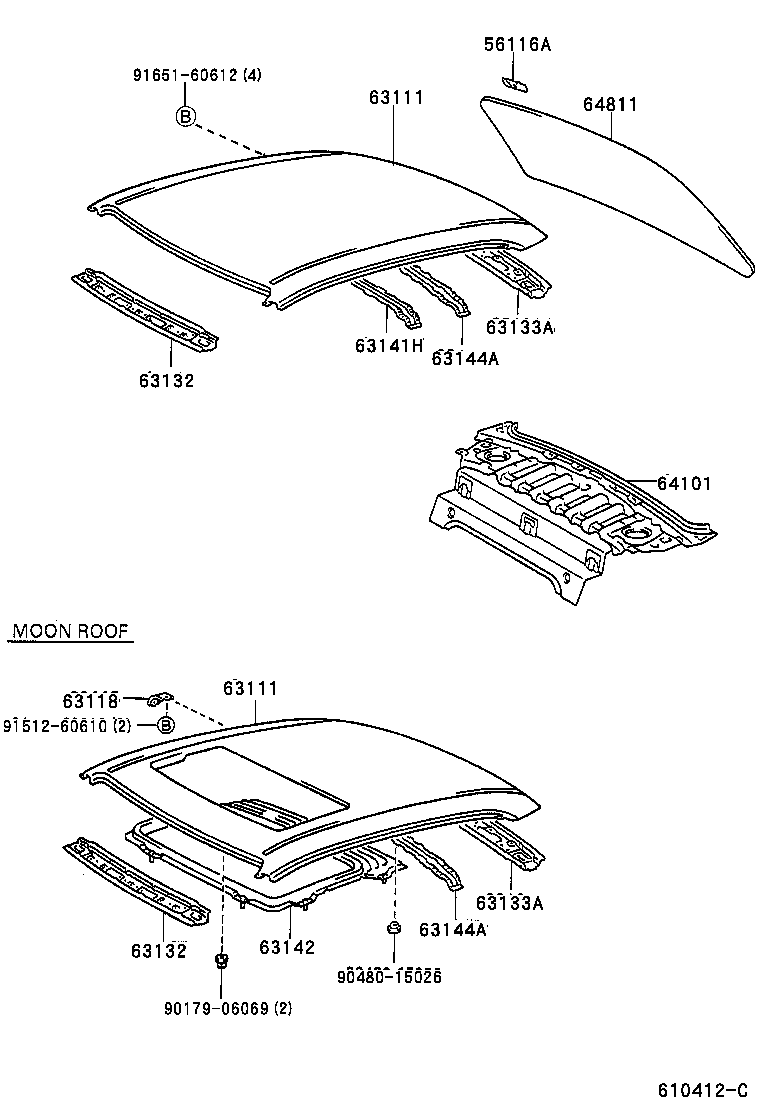

Roof Panel & Back Window Glass
76 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 56116A | Spacer, Windshield Glass |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63132 | Panel, Windshield Header, Inner |
| 63133A | Frame, Back Window, Upper |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |

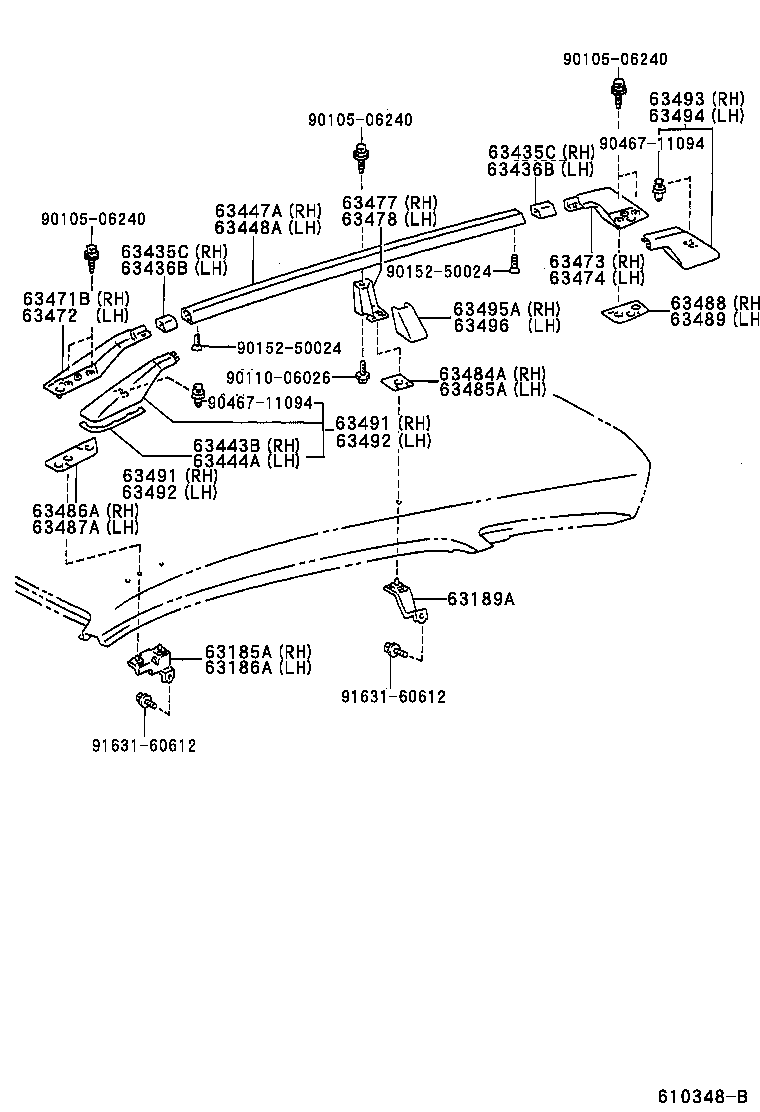

| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63189A | Bracket, Roof Rack, Center |

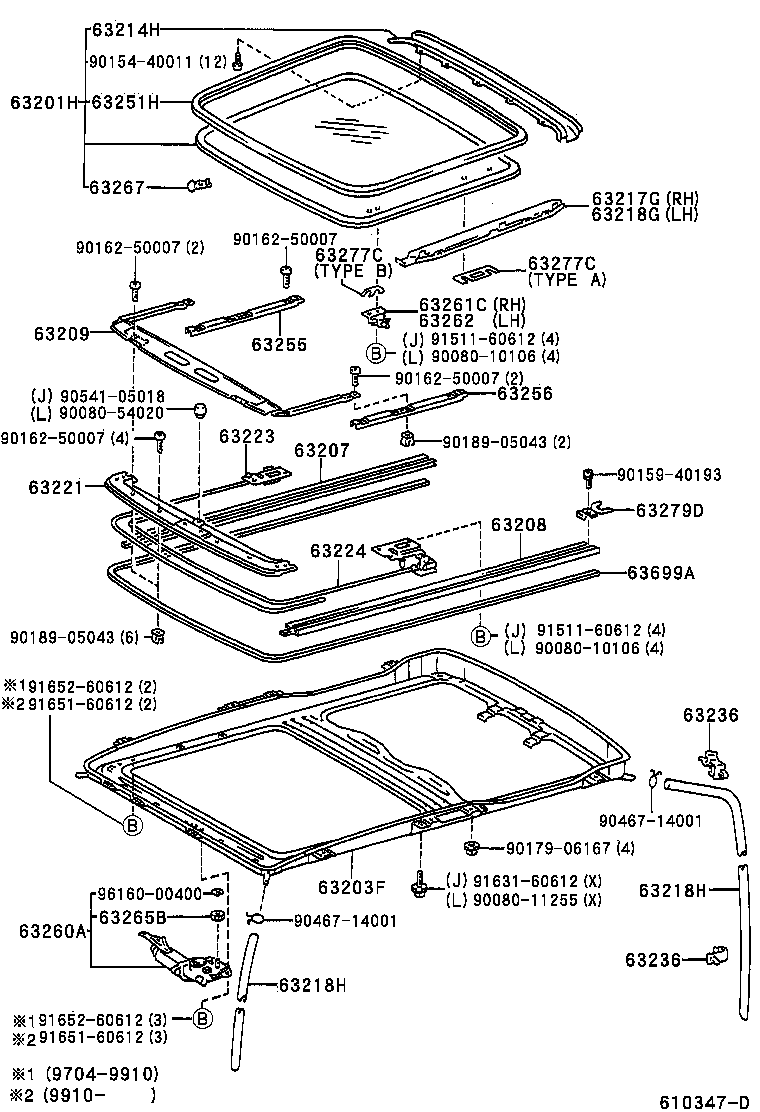

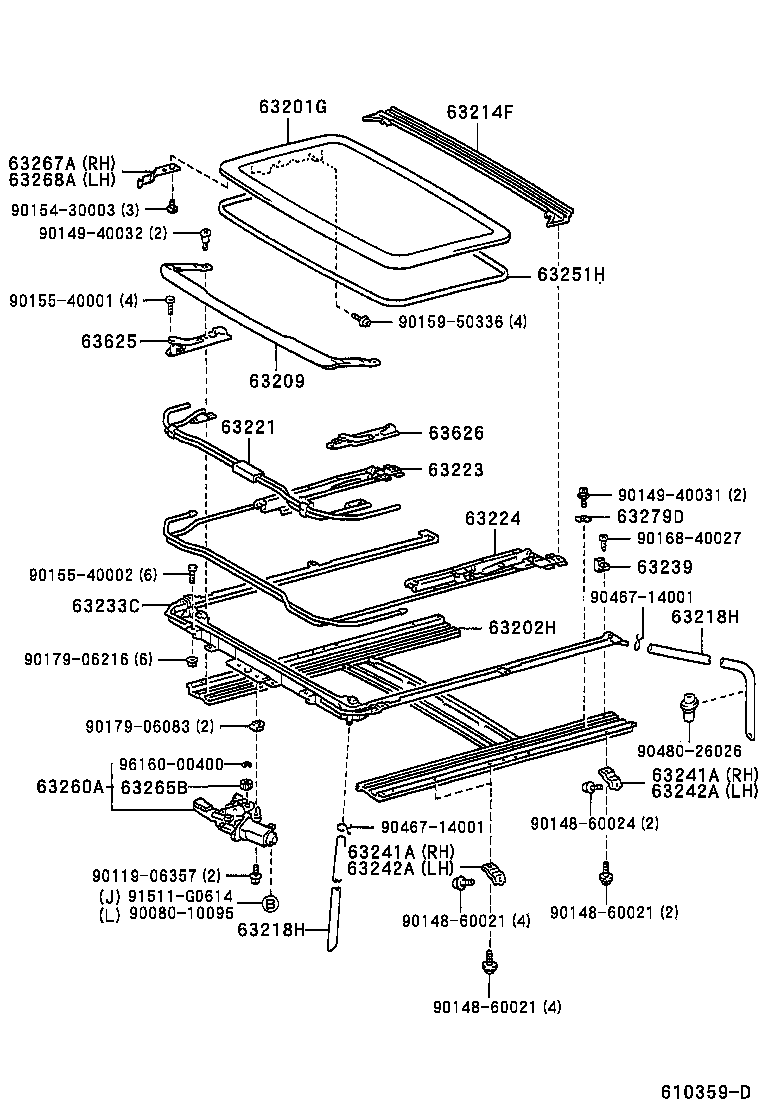

| 63201G | Glass Sub-assy, Sliding Roof |
| 63201H | Panel Sub-assy, Slide Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63214H | Panel, Sliding Roof, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233C | Panel, Sliding Roof Housing |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63265B | Gear, Sliding Roof Drive |
| 63267 | Protector, Sliding Roof Weatherstrip |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63435C | Seal, Roof Carrier, NO.1 RH |
| 63436B | Seal, Roof Carrier, NO.1 LH |
| 63443B | Protector, Roof Rack, RH |
| 63444A | Protector, Roof Rack, LH |
| 63447A | Roof Rail, RH |
| 63448A | Roof Rail, LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63477 | Support, Roof Rack, Center RH |
| 63478 | Support, Roof Rack, Center LH |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495A | Cover, Roof Rack Leg, Center |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
