Toyota Corolla Sed/WG

1997-05 → 2001-09 · chassis AE11#,CDE110,CE110,EE11#,WZE110,ZZE11# · catalogue 151540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

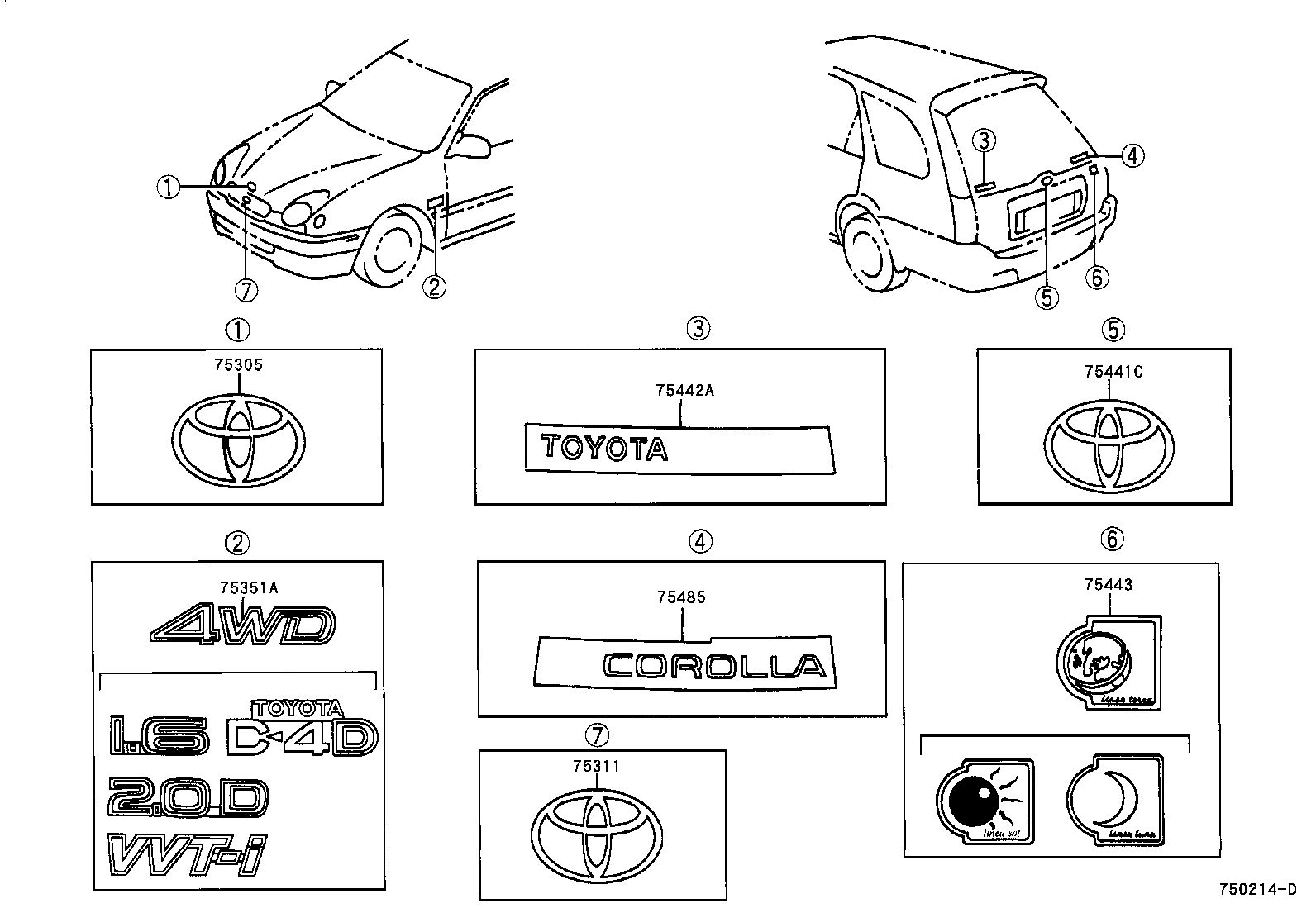

Figure 750213E 750213E 1997-04 → — Figure 750214D 750214D 1997-04 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351A Emblem, Front Fender
75431 Emblem, Luggage Compartment Door
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75444C Plate, Luggage Compartment Door Name, NO.4
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
