Toyota Corolla Sed/WG

1997-05 → 2001-09 · chassis AE11#,CDE110,CE110,EE11#,WZE110,ZZE11# · catalogue 151540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

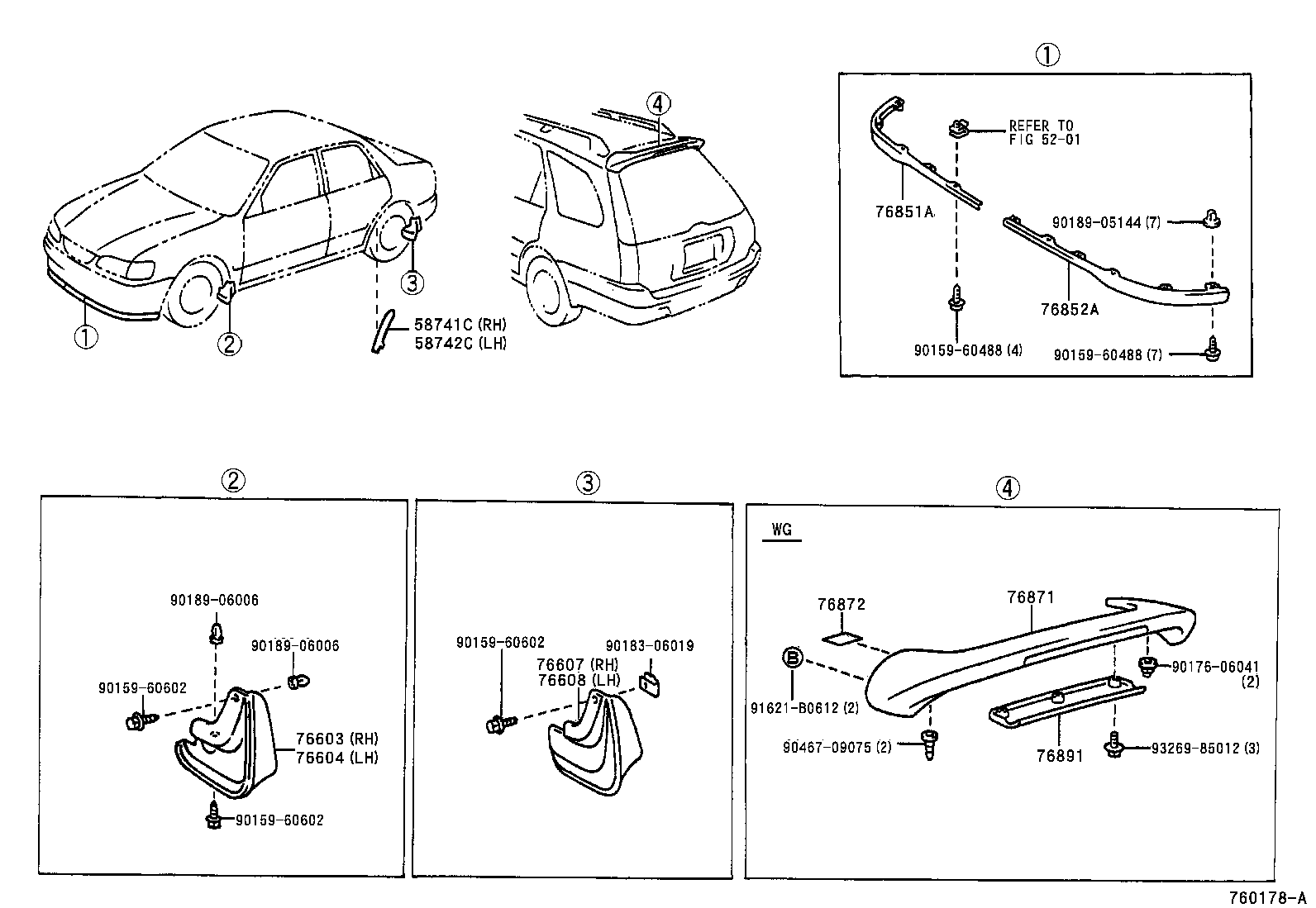

Figure 760077A 760077A 1997-04 → 1999-10 Figure 760178A 760178A 1999-10 → —

Part groups

PNCDescription
58741C Protector, Quarter Panel, RH
58742C Protector, Quarter Panel, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
