Toyota Corolla Sed/WG
1997-05 → 2001-09 · chassis AE11#,CDE110,CE110,EE11#,WZE110,ZZE11# · catalogue 151540 · Europe
Discontinued model
Data version 2002-04
Rear Combination Lamp
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

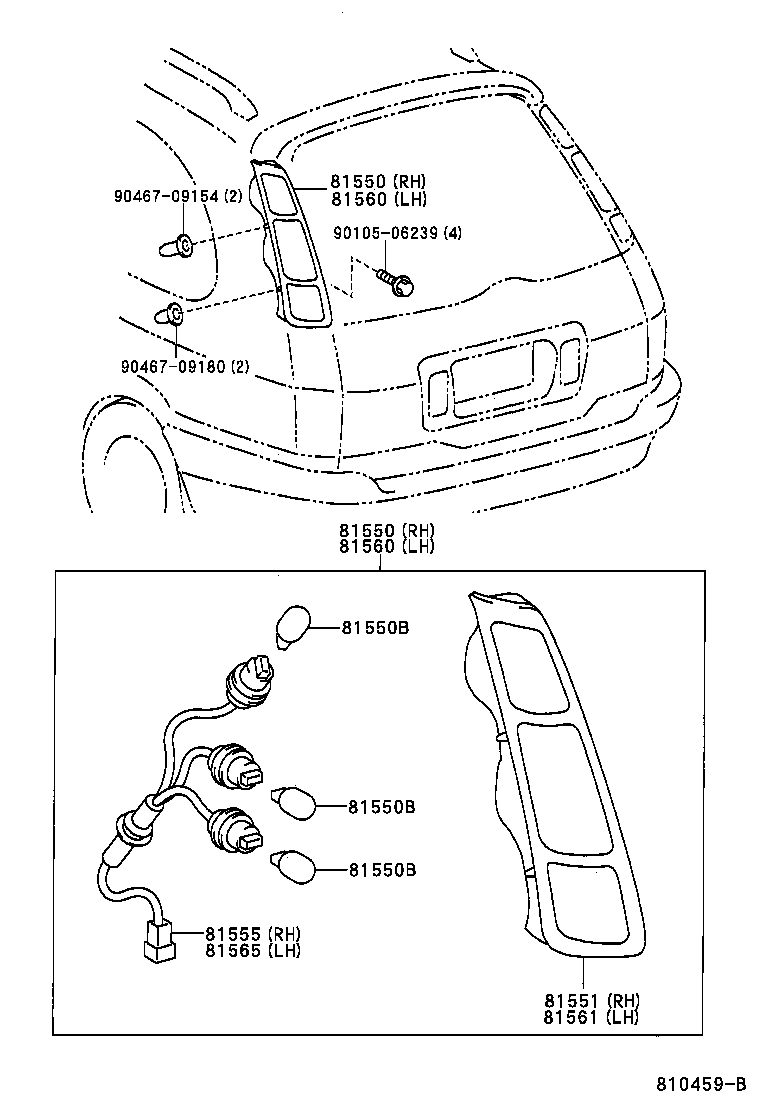

| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |

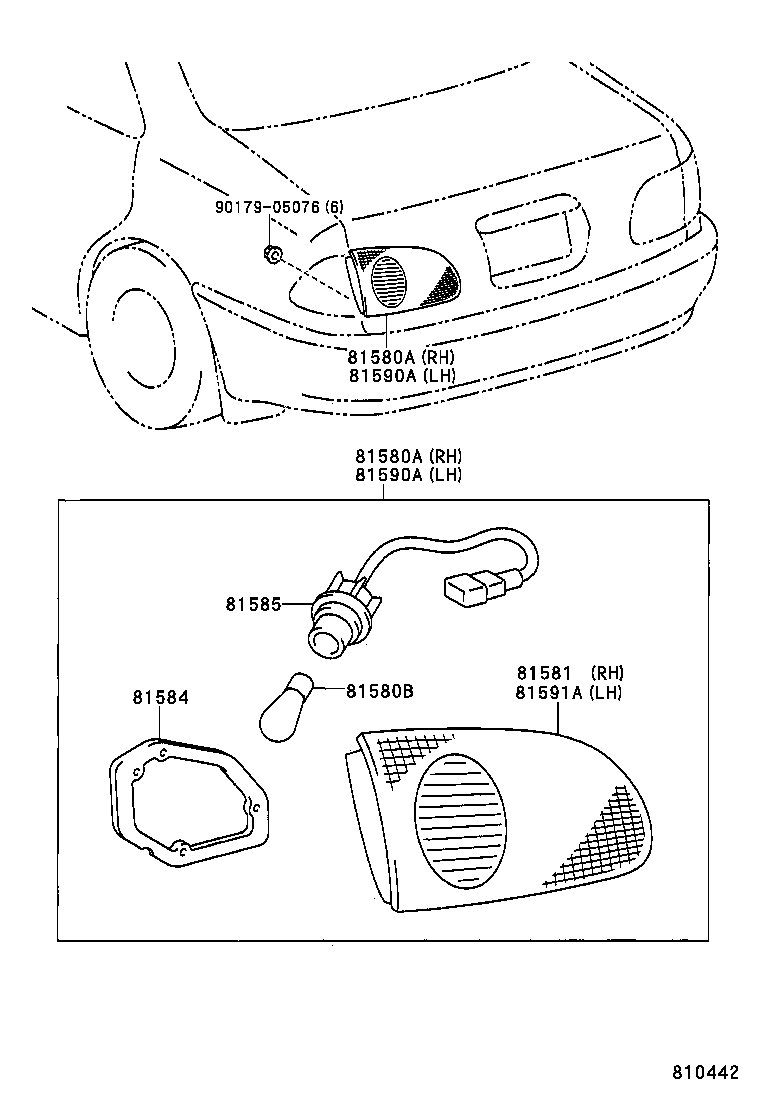

| 81580A | Lamp Assy, Rear |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581 | Lens, Rear Lamp |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591A | Lens Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
