Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 841027B

841027B 1997-04 → —

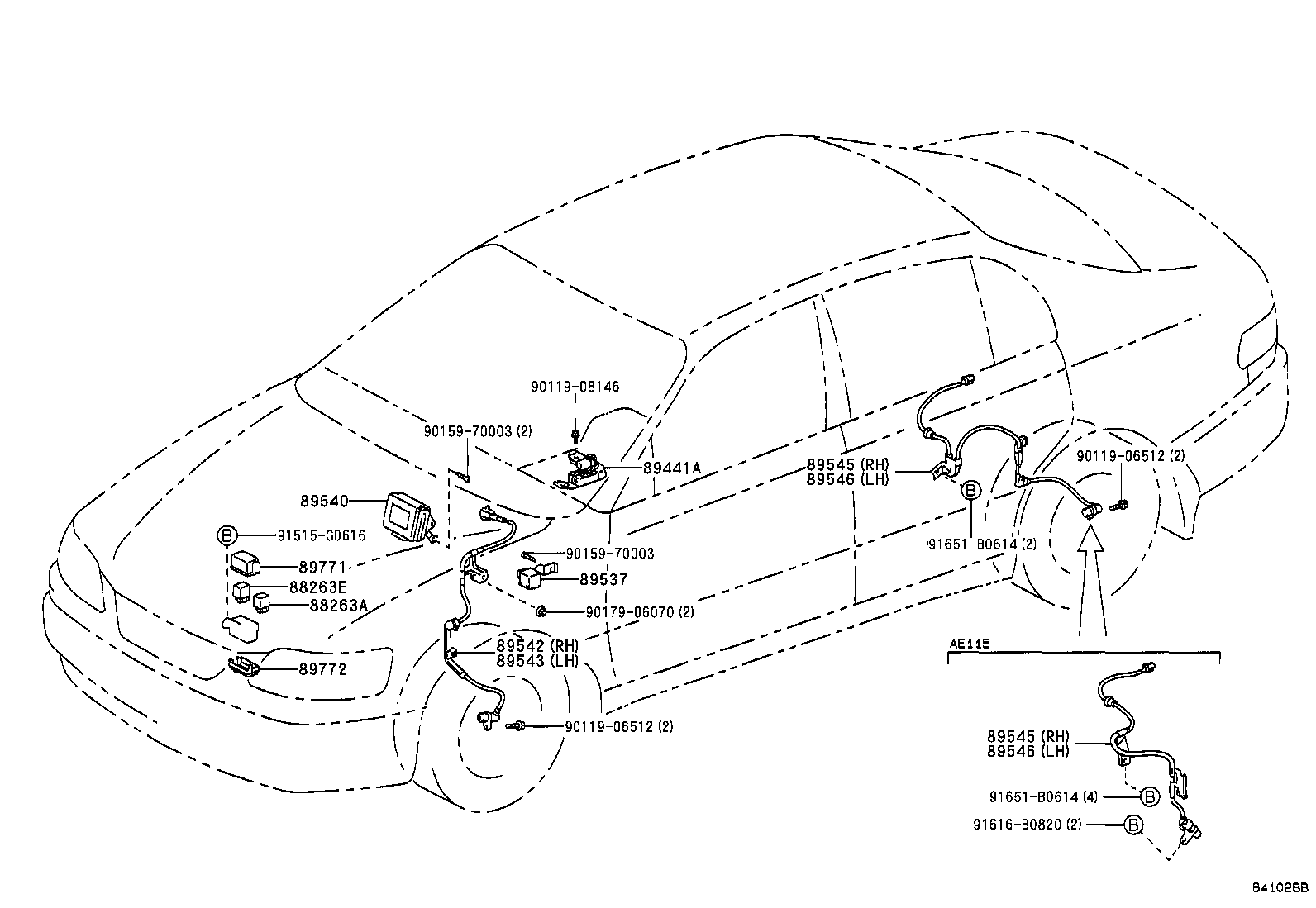

Figure 841028B

841028B 1997-04 → —

Part groups

PNC	Description
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89441A	Sensor, Deceleration
89537	Relay, Active Lamp
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89771	Cover, Abs Relay Block, Upper
89772	Cover, Abs Relay Block, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
