Toyota Corolla Sed/WG

1997-05 → 2001-09 · chassis AE11#,CDE110,CE110,EE11#,WZE110,ZZE11# · catalogue 151540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 4 illustrations

Illustrations

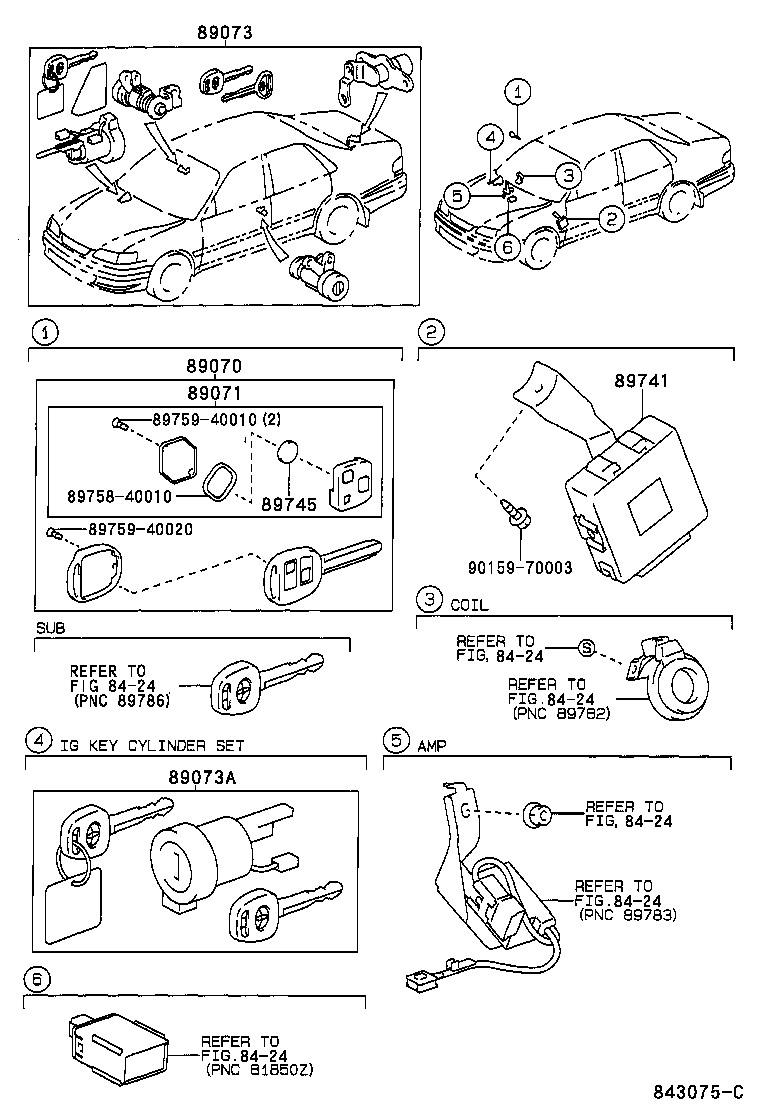

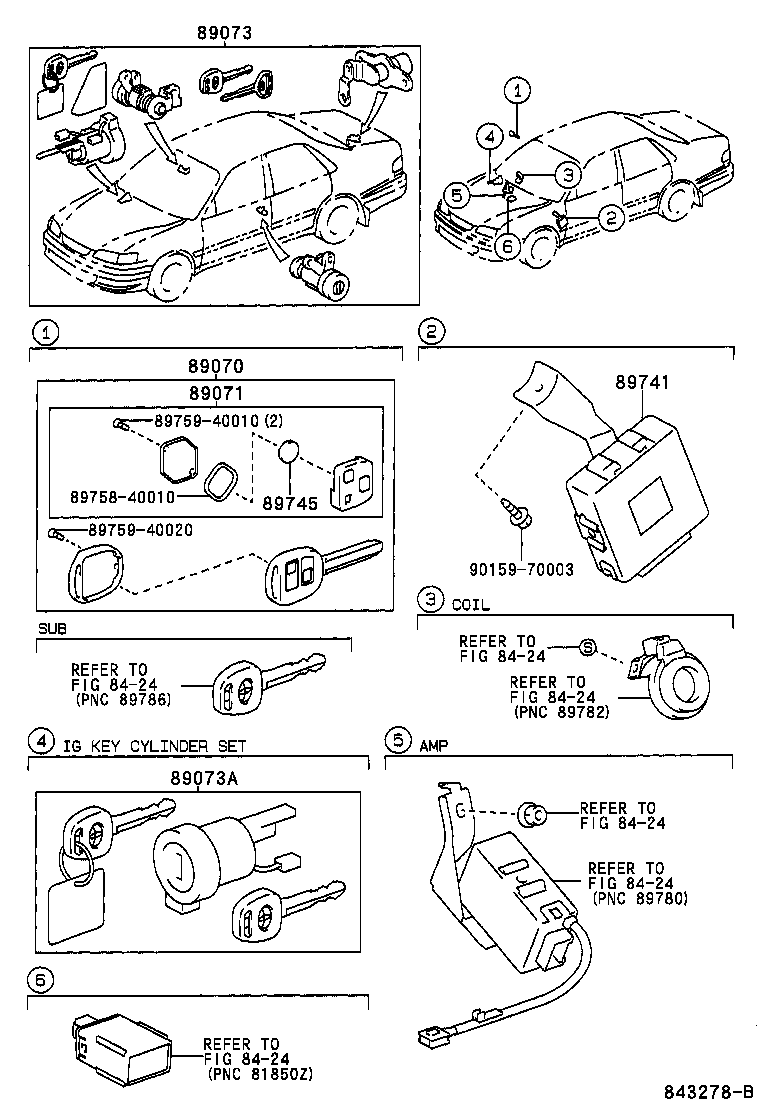

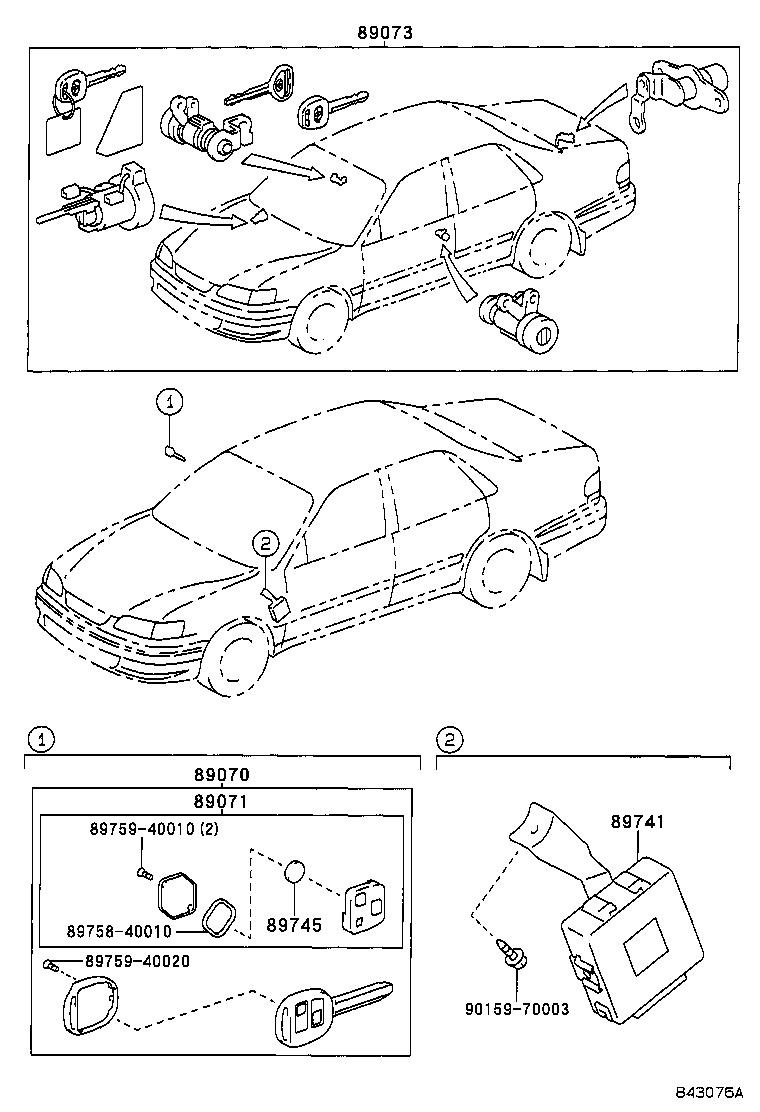

Figure 841018B 841018B 1997-04 → 1999-10 Figure 843075C 843075C 1999-10 → — Figure 843076A 843076A 1999-10 → — Figure 843278B 843278B 2000-01 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89742 Transmitter, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
